17

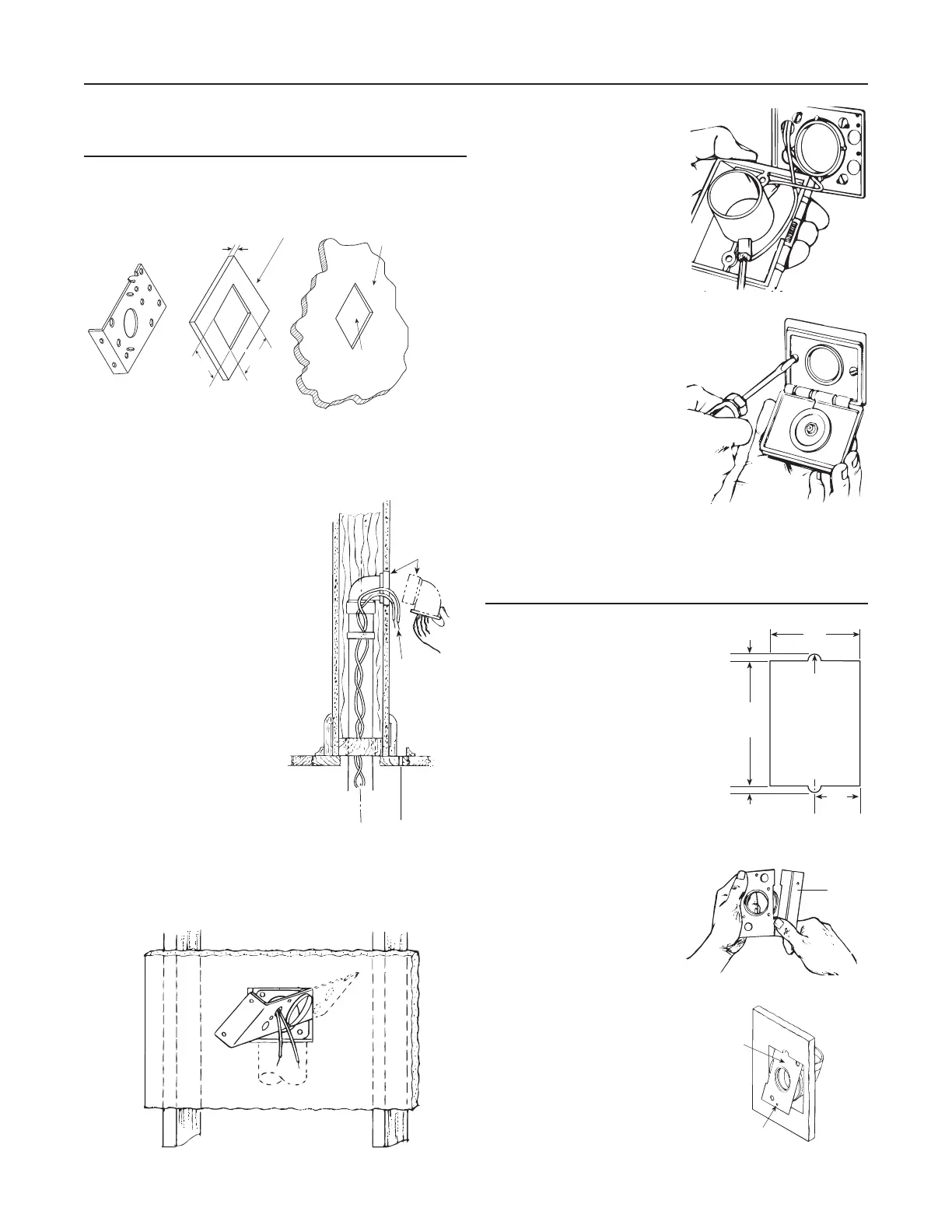

INSTALLATION IN EXISTING CONSTRUCTION (CONT'D)
360 SERIES INLETS
(CF361 OR CF361F ROUGH-IN) (CONT'D)
NOTE: If the wall for mounting the Model 360 inlet is less than
1⁄2", a spacer must be used. See figure below as a
guide.
C Cut a length of tubing that will extend from inlet opening to a
point below floor level (or above ceiling level in attic
installation). Tape low voltage wire to tube and insert tube
through predrilled hole to a level opposite the wall opening.
D Apply cement to tube and
install flanged wall fitting.
Make sure fitting is well
seated and sealed (see
figure at right).
E Remove plaster frame from mounting bracket. Pull low
voltage wire through hole in bracket and insert bracket into
cutout. Secure bracket to flanged fitting with 4 screws
provided. Be sure seal is secure between flange fitting and
mounting bracket (see figure below).
F Attach the low voltage wires
to terminal screws on back
of wall inlet (see figure at
right). If using 361 Rough-in
with CI370 Series Inlets,
refer to instructions on page 7,
step D, shown in its figure.
G Insert wall inlet into bracket
and secure with the two
screws provided (see figure
at right).
MODEL 330 SERIES
WALL INLET INSTALLATION
(CF329 ROUGH-IN)
B Make cutout according to
dimensions in figure at right.
C Refer to figure at right. Break
off nail plate at scored line.
D Refer to figure at right. Glue
elbow to mounting plate,
place assembly into cutout,
and attach elbow to tubing
inside the wall.
2
1
/4"
3
1
/4"
1/4"
INLET MOUNTING
BRACKET
SPACER
WALL LESS THAN
1
/2" THICK.
PLASTER
GUARD
HOLE
AD0057A
LOW
VOLTAGE
WIRING
FLANGED
FITTING
AD0064A
AD0063
AO0071
AR0047
3
/8"
" (10 mm) DIA.
" (10 mm) DIA.
(6 mm)
2
3
/4"
(70 mm)
(98 mm)
(35 mm)
3
7
/8"
AD0020A
1/4"
3/8
3/8
1
(6 mm)
1/4"
Nail Flang
e
AO0039A
MOUNTING
PLATE
MOUNTING
HOLE (2)
ELBOW
AD0021A
