NuTone QTREN070C User Manual

Page 2

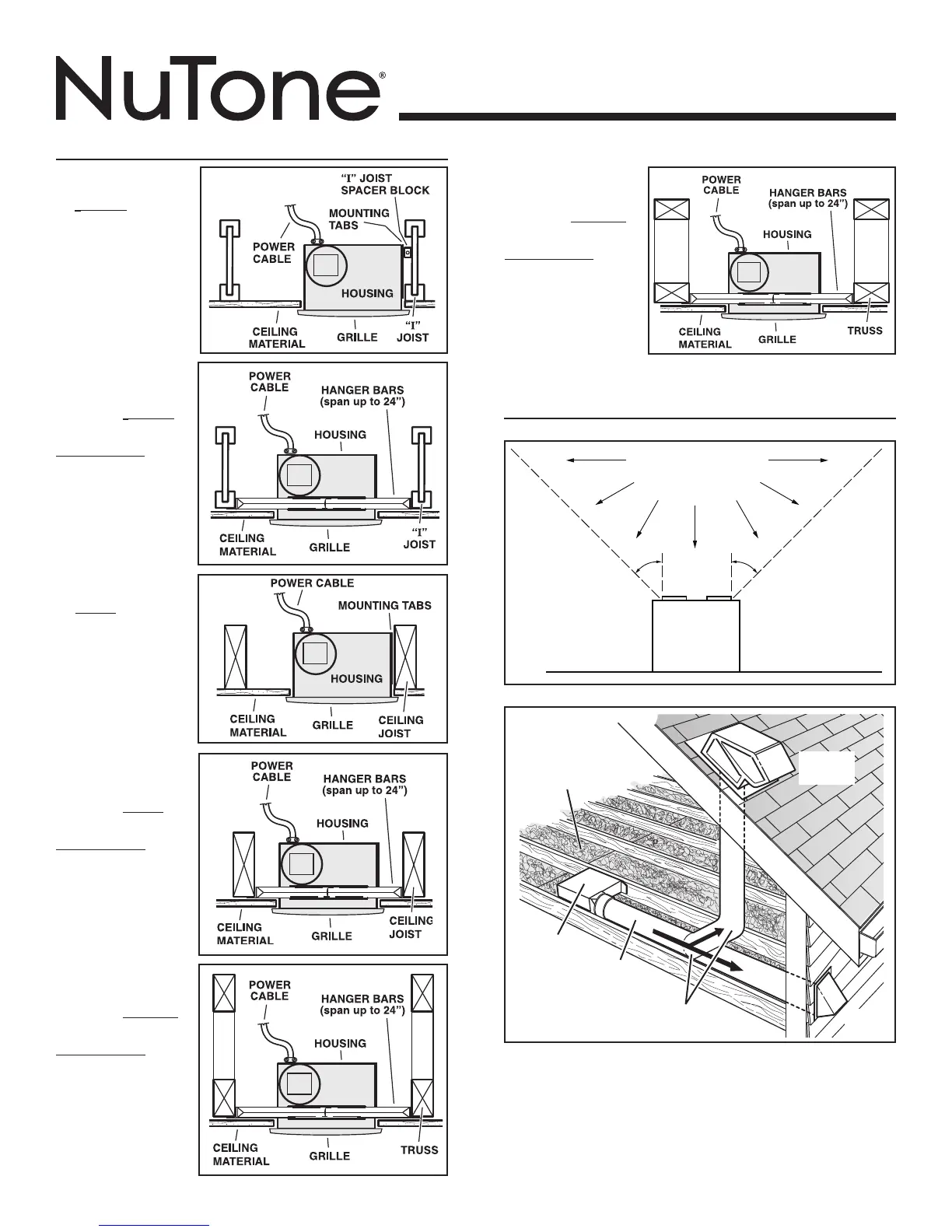

MODELS QTREN070C • QTREN080C
TYPICAL INSTALLATIONS
BH0001A
Housing mounted
to I-joists.
Housing mounted
anywhere
between trusses
using
hanger bars.
PLAN THE INSTALLATION
ROOF
CAP
*
4-IN. ROUND
ELBOW(S)
*
4-IN.
ROUND
DUCT
*
WALL
CAP
*
*
Purchase
separately
INSULATION
(Can be placed
around and over
fan housing.)
FAN
HOUSING
The unit will operate most quietly and effi ciently when located
where the shortest possible duct run and minimum number of
elbows will be needed.
Use a roof cap or wall cap that has a built-in damper to reduce
backdrafts.
Plan to supply the unit with proper line voltage and appropriate
power cable.
A
Housing mounted
anywhere
between I-joists
using
hanger bars.
Housing mounted
to joists.
Housing mounted
anywhere
between joists
using
hanger bars.
Housing mounted
anywhere
between trusses
using
hanger bars.
BH0006A
Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45º
45º
NOT FOR USE IN
A COOKING AREA.
