NuTone QTREN080 User Manual

MODELS QTREN080 • QTREN110
Page 2

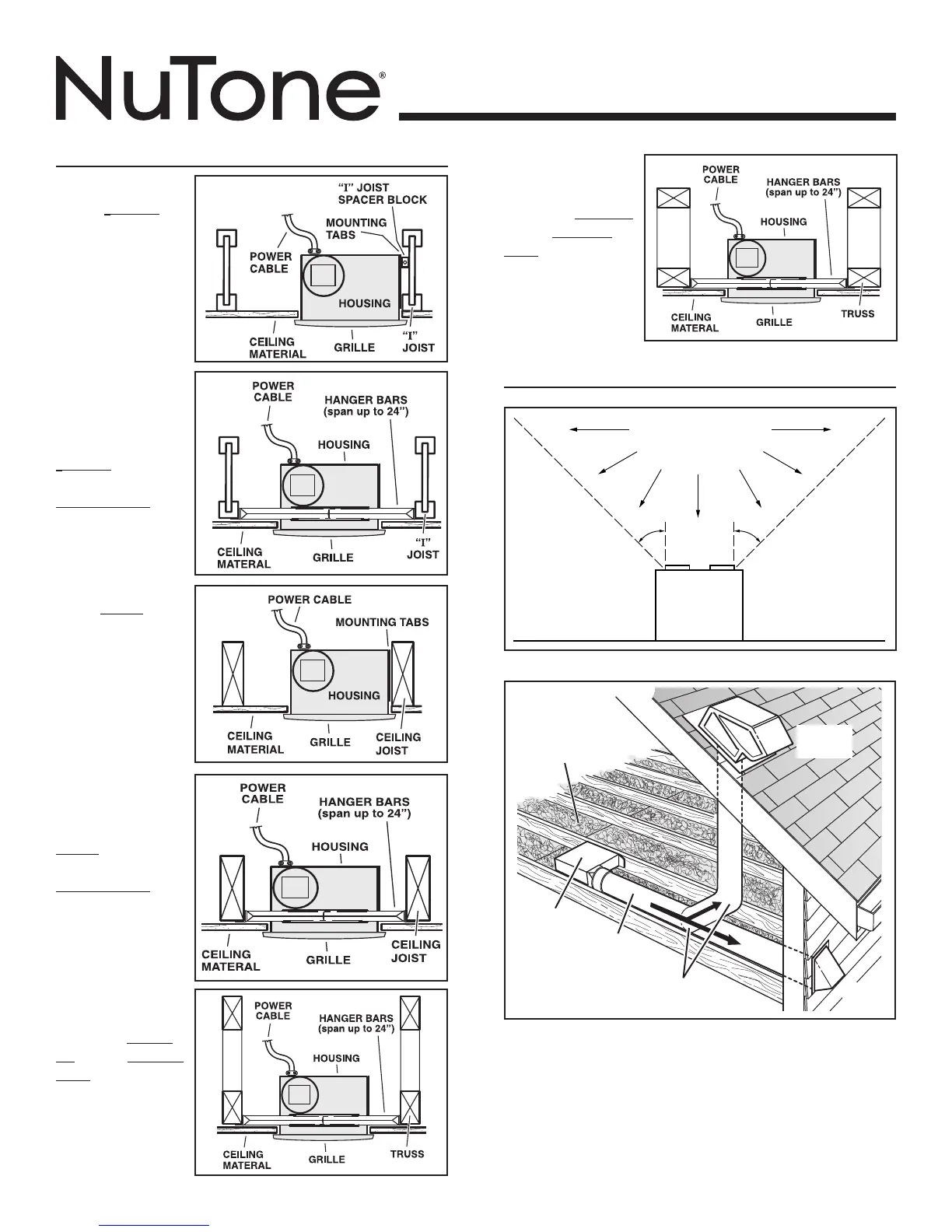

TYPICAL INSTALLATIONS
Housing mount-
ed to I-joists.
Housing mount-
ed anywhere
between truss-
es using hanger
bars.
PLAN THE INSTALLATION

where the shortest possible duct run and minimum number of
elbows will be needed.
Use a roof cap or wall cap that has a built-in damper to reduce
backdrafts.
Plan to supply the unit with proper line voltage and appropriate
power cable.
Housing mount-
ed anywhere
between
I-joists
using
hanger bars.
Housing mount-
ed to joists.
Housing mount-
ed anywhere
between
joists
using
hanger bars.
Housing mount-
ed anywhere
between trusses
using hanger
bars.
Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45
o
45
o
NOT FOR USE IN
A COOKING AREA.
ROOF
CAP
*
4-IN. ROUND
*
4-IN.
ROUND
DUCT *
WALL
CAP
*
*
Purchase
separately
INSULATION

around and over

FAN
HOUSING
