NuTone RMIP33 Specification Sheet

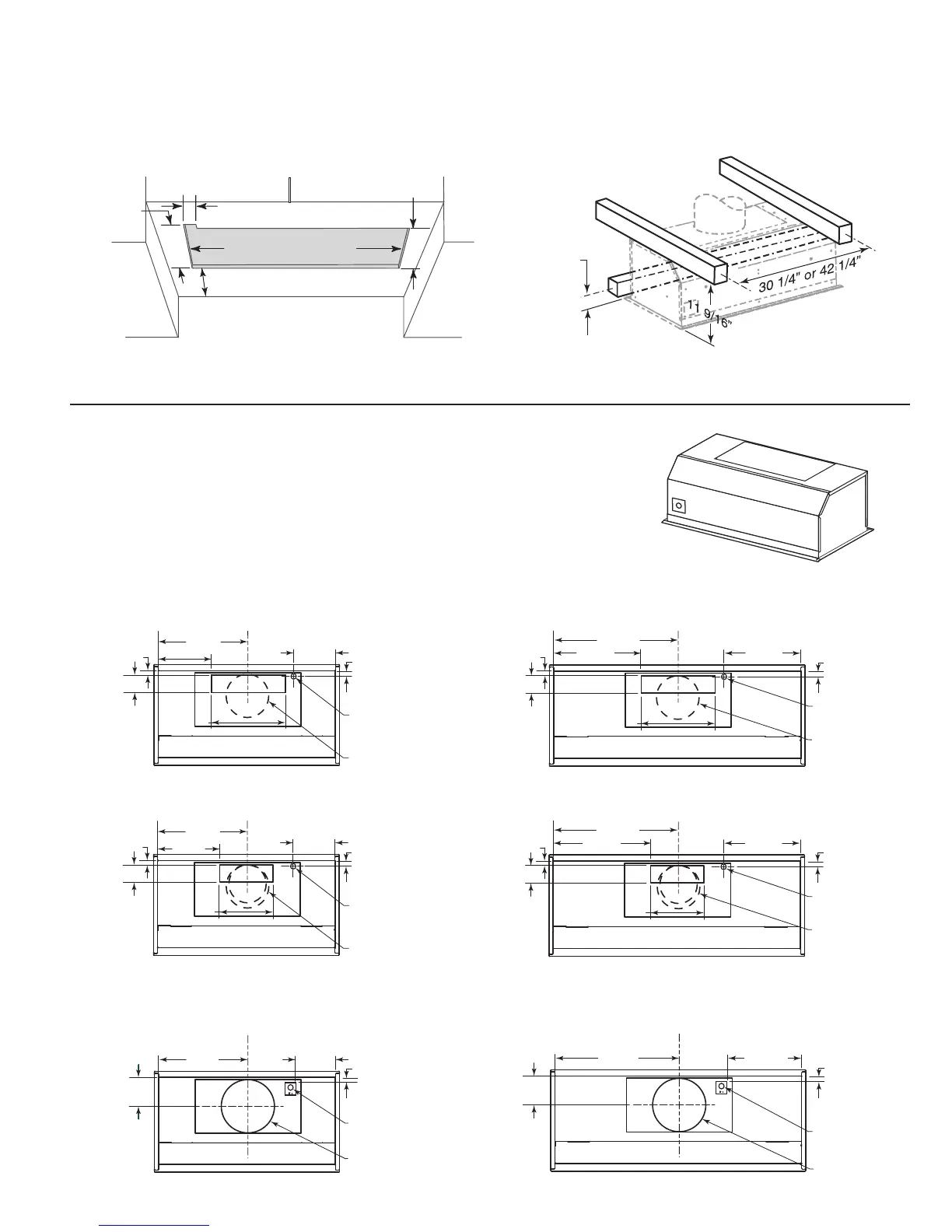

RMIP MOUNTING
Size of the cut-out
NOTE: The 3 1/2’’ notch must be cut only if the RMIPWC
optional wall control will be installed.
HH0040A
1 1/2”
HD0093A
17 1/16''
16 3/8''
32 1/2'' or 44 1/2''
3 1/2''
2 1/4'' min.
Suggested Custom Hood Internal Framework
NOTE: If optional RML series liner is used, refer to installation
instructions for size and location of the cut-out.
RMIP SERIES INSERTS
BLOWER DUCTING
POSITIONS
MODEL RMIP33 WITH P8 BLOWER (Vertical Outlet)
HB0032


3/4’’
3 1/4’’
16 1/8’’
7 5/8’’
7/8’’
14’’
9 1/8’’
7/8’’ dia.
8’’ round
transition
HK0031A
MODEL RMIP33 WITH P5 BLOWER (Vertical Outlet)


3/4’’
3 1/4’’
16 1/8’’
7 5/8’’
7/8’’
10’’
11 1/8’’
7/8’’ dia.
7’’ or 8’’
round transition
HK0030A
MODEL RMIP33 WITH 331H, 332H, 335, 336, HLB3,
HLB6, HLB9 OR HLB11 BLOWER (Vertical Outlet)


5 1/4’’
16 1/8’’
9 5/8’’ dia.
7/8’’ dia.
1 11/16’’
6 11/16’’
HK0029
MODEL RMIP45 WITH P8 BLOWER (Vertical Outlet)
MODEL RMIP45 WITH P5 BLOWER (Vertical Outlet)
MODEL RMIP45 WITH 331H, 332H, 335, 336, HLB3,
HLB6, HLB9 OR HLB11 BLOWER (Vertical Outlet)


3 1/4’’
22 1/8’’
13 5/8’’
7/8’’
3/4’’
15 1/8’’
14’’
7/8’’ dia.
8’’ round
transition
HK0034A


3 1/4’’
22 1/8’’
13 5/8’’
7/8’’
3/4’’
17 1/8’’
10’’
7/8’’ dia.
7’’ or 8’’
round transition
HK0033A


5 1/4’’
22 1/8’’
12 11/16’’
1 11/16’’
9 5/8’’ dia.
7/8’’ dia.
HK0032
Top view
Top view
Top view
Top view
Top view Top view
