SAFETY INSTRUCTIONS
FOR HOUSEHOLD USE ONLY. INSTALL ONLY ON A NOMINAL 120v, 60Hz, 7A SUPPLY PROTECTED BY A
MAXIMUM 15A OVERCURRENT PROTECTIVE DEVICE.
THE PIN CONNECTOR ON THIS Type A WALL VALVE IS INTENDED FOR USE ON A NOMINAL 120V, 60Hz, 7A
SUPPLY ONLY. IT IS REQUIRED TO BE WIRED BY A QUALIFIED ELECTRICIAN and IS REQUIRED TO CONFIRM
TO
LOCAL ELECTRICAL CODES.
WARNING: DO NOT OPERATE HOSES ON WET SURFACES!
New Construction
1. Install BUILDING WIRE CONDUCTORS (1) through the approved type electrical CONNECTOR (2) (supplied) until they
protrude approximately six inches from connector. Seat connector firmly into the opening atop the WIRING COMPA R T-
M E N T (4). Insert and secure LOCKING TAB (3).
2. Splice wires from INLET VA LVE RECEPTACLE (7) to the protruding building wire conductors with #31 T W I S T -ON WIRE
C O N N E C T ORS (8) (not supplied).
N O T E : White wire to white wire & black wire to black wire .
3. Feed LOW VOLTAGE RELAY WIRES (5) through opening in the LV T COVER PLATE (6) and connect to the two contact
screws of INLET VA LVE FACE PLATE (9).
4. Push Inlet Valve face plate (10) into MOUNTING PLATE (11). At the same time, push ELECTRICAL C O N D U C T O R S
(12) and connectors (8) into WIRING COMPA R T M E N T (4). Back out the two screws that hold the wiring compartment in
place. Slip upper FINISHED WA L L C L I P (13) under the screw \ heads and tightly fasten both wiring compartment and
upper finished-wall clip (13) with MOUNTING SCREWS (supplied).
5. Install the lower FINISHED WA L L C L I P (14) with screws (supplied).
6. Secure Inlet Valve face plate (10) to mounting plate (11) using the two supplied color matched SCREWS (15).
# LR 61865 # 27Z2
Finished Construction
After pipe, low voltage relay control wire, electrical building wires and opening in wall has been cut:
1. Remove mounting plate NAILING FLANGE (16). Use a hack saw or score with razor knife along dotted line and snap off .
2. Repeat step one (from NEW CONSTRUCTION).
3. Install modified mounting plate with short 90° ELL glued in position into wall opening.
4. Repeat steps 2 - 6 (from NEW CONSTRUCTION).

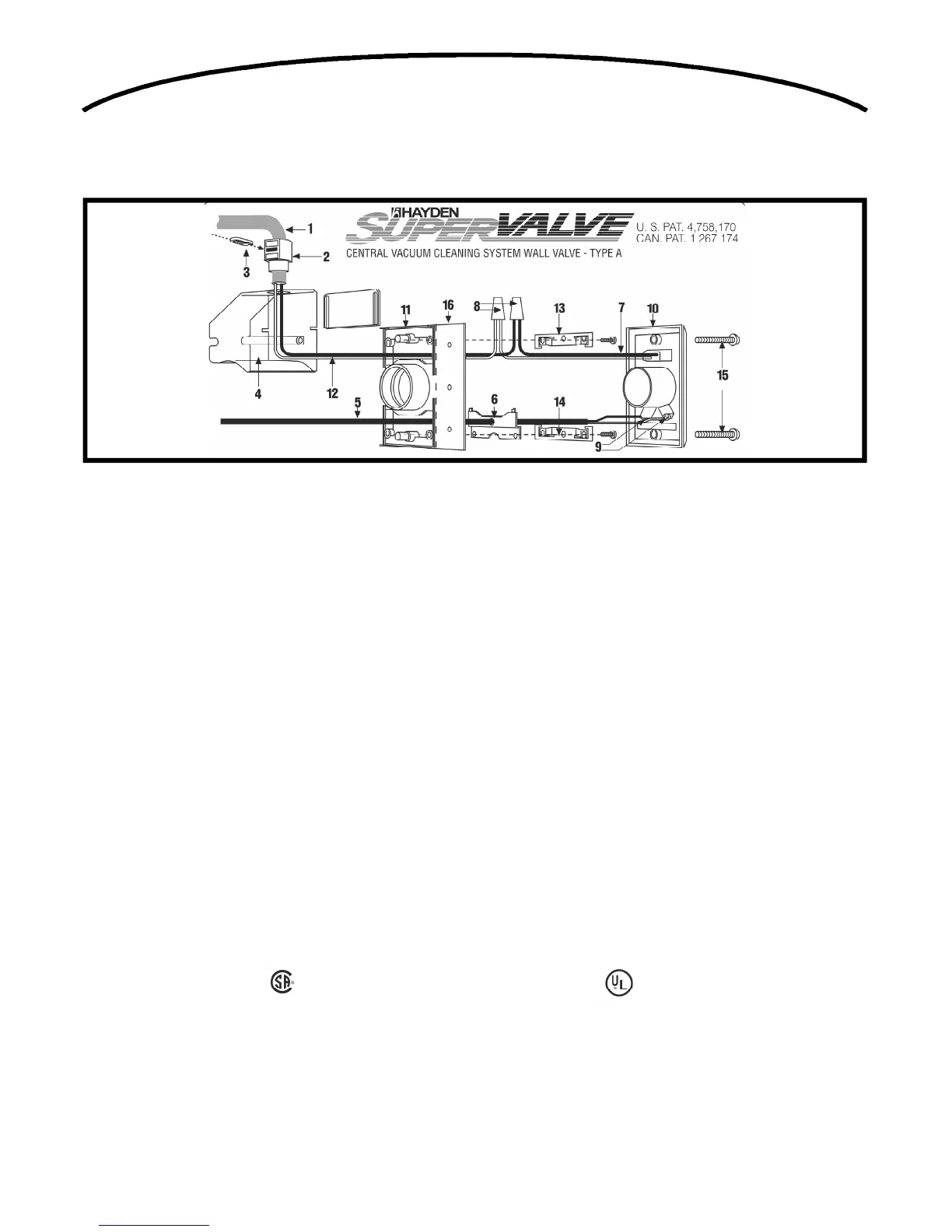

FIGURE 29
C1358 SUPERVALVE™ WALL INLET & ROUGH-IN KIT See Figure 29
