25
wire/string around the pipe. Using the wire/string to
temporarily hold the pipe and elbow in place, insert the
VacuSweep
®
Sweep Inlet Valve into the opening at the base
of the wall and elbow. DO NOT glue this connection
(Designed for friction fit). See Figure 50-5.
6. Remove the wire/string. With the door in an open position,
secure the VacuSweep
®
Sweep Inlet Valve to the wall using
#6 screws. See Figure 50-6. Ensure that the spring on
the electrical connector has 1/8” clearance to rough
o p e n i n g. Continue with remainder of central vacuum
connections. When the vacuum system is complete, turn
the power to the vacuum unit on.

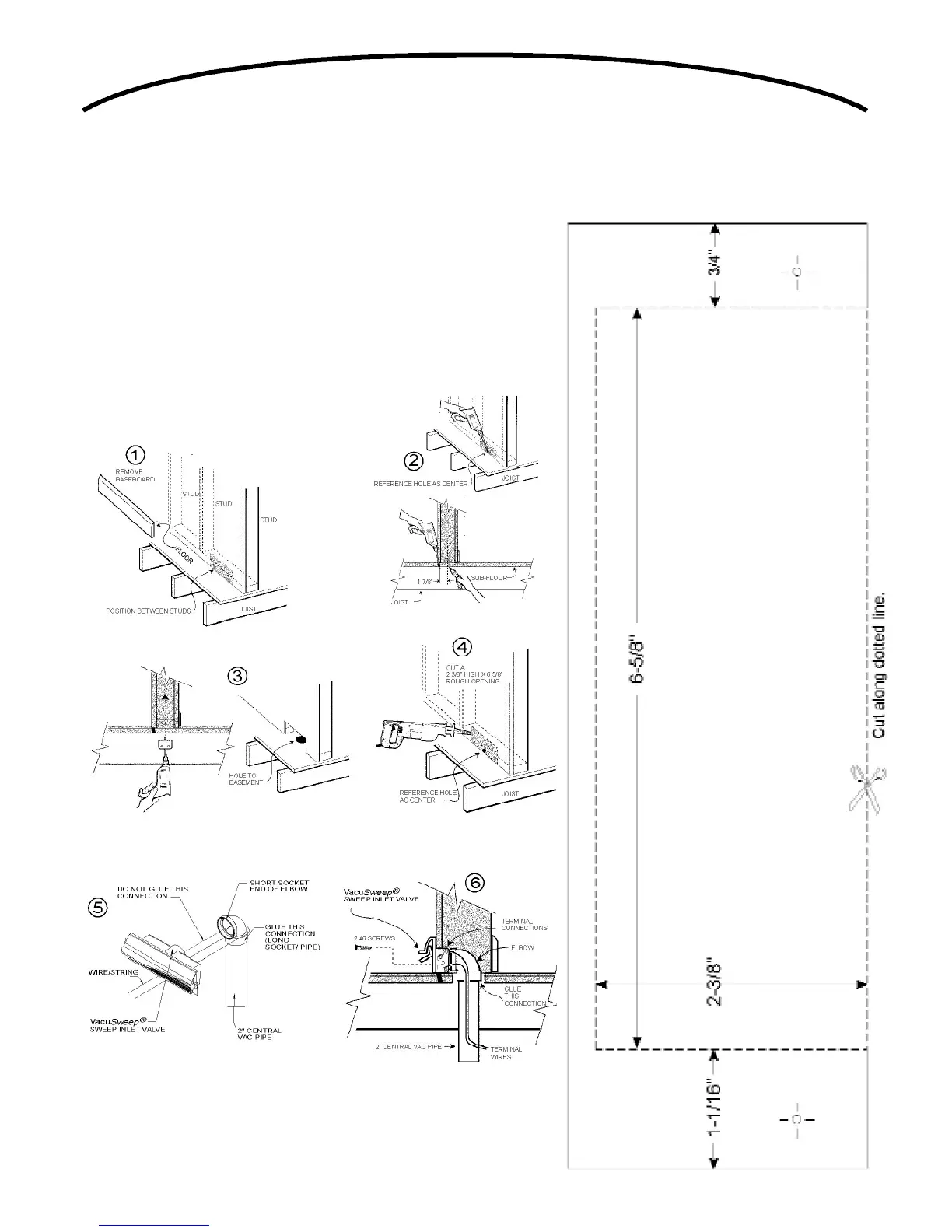

FIGURE 50
VacuSweep® Sweep Inlet
Valve Rough-in Template
