NuTone VX3000C Operating Instructions

page 7
NOTE: Order service parts by “Part No.” - not by “Key No.”
*This part MUST be removed and installed by a qualified technician.
9
8
4
2
6
3
7
1
Key No. Part No. Description VX475CC VX550CC VX1040CC
1
10941189 Pail assembly VS X
10941191 Pail assembly TS X X
2 10941192 Door assembly X X X
3 10941199 Latch kit (with screws) X X X
4
10941232 VS PCB’s assembly (including mother, daughter and screws)* X
10941233 TS1 PCB’s assembly (including mother, daughter and screws)* X
10941195 TS2 Motherboard/Daughterboard S/A incl. screws* X
5
10941235 VS motor with motor harness, fuse with fuse harness, circuit breaker* X
10941236 TS1 motor with motor harness, fuse with fuse harness, circuit breaker* X
10941231 TS2 motor with motor harness, fuse harness, circuit breaker* X
6
30100528 Pail gasket TS X X
30100527 Pail gasket VS X
7
30010272 Cyclonic filter VS X
30010270 Cyclonic filter TS X X
8
10941215 Motor Chamber VS with foam and logo* X
10941216 Motor Chamber TS with foam and logo* X X
9
10941212 Top cap VS with logo X
10941214 Top cap TS with logo X X
5
AL0001

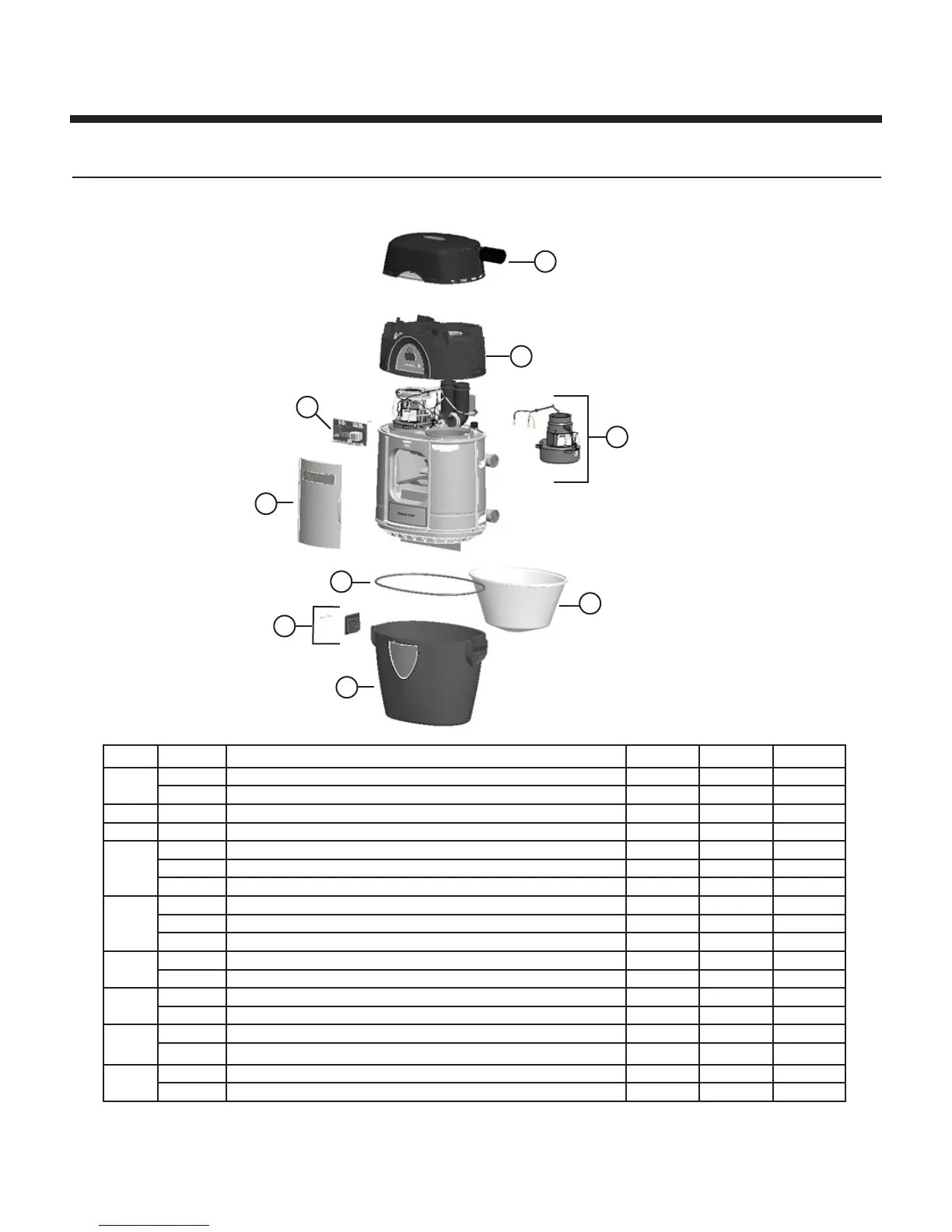

SERVICE PARTS LIST
(NUTONE MODELS VX475CC, VX550CC ET VX1040CC)
