Nuvo Koolspace 250 - Step 1: Panel Preparation

~4~
~5~

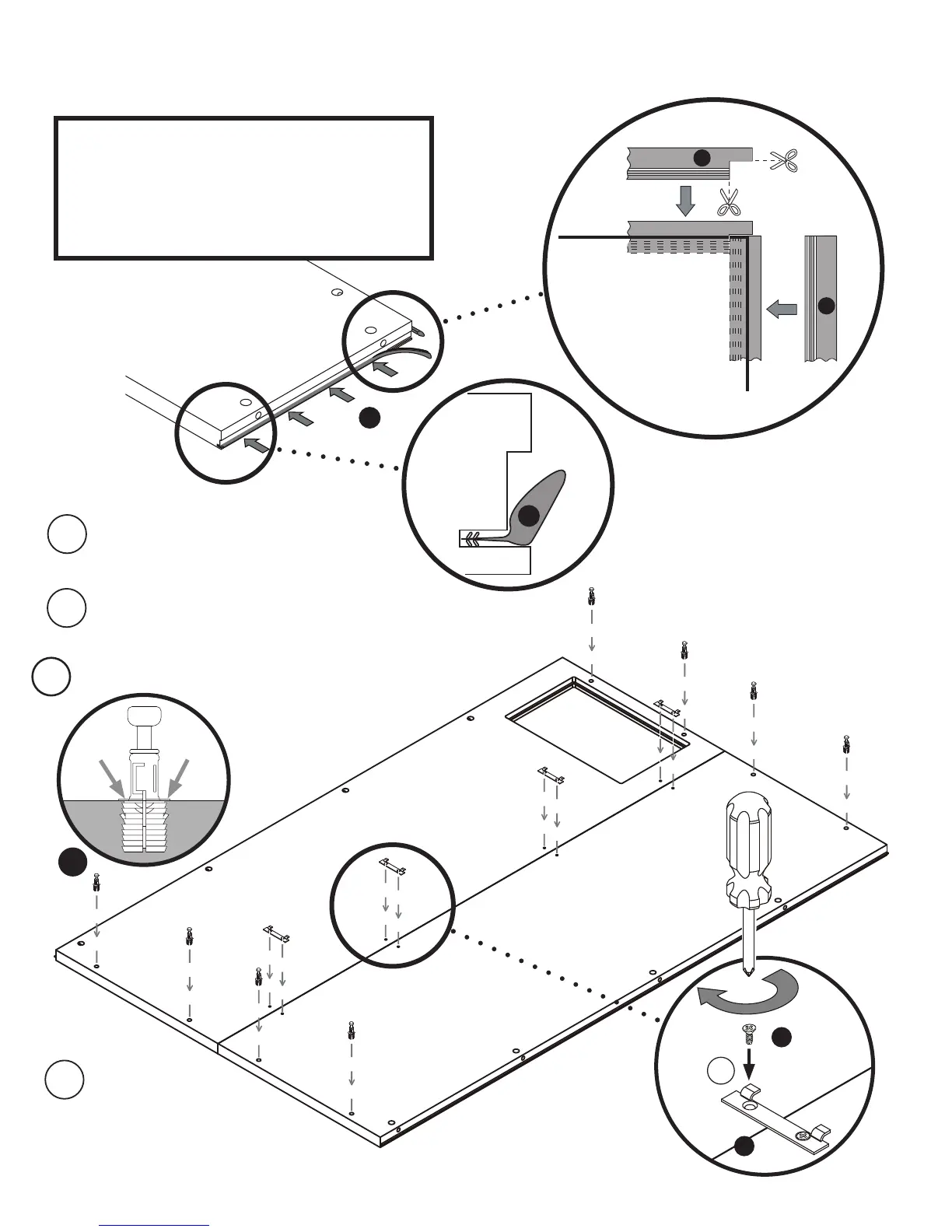

Open Boxes VP6 and VP7.
Install INSULATION STRIP (J) to
Back, Top, and Bottom Panels. PUSH
IN FULLY!
Insert Cam Pins (F) in BACK PANEL’S
predrilled holes down to TAB. (May
require some force)
STEP 1 : PANEL PREPARATION
1
PANEL EDGE
J
CAUTION :
1. Watch for sharp staples on boxes.
2. DO NOT STEP ON PANELS
3. The manual will give a recommended
order to open boxes, it saves time and space.
2
J
J
J
C
G
3
F
Screw in both
screws (C) half
way in Coupler
Hanger (G) to back
panels and tighten
fully when both
screws are in.
3
CAUTION : DO NOT BREAK CAM PIN TABS!
DO NOT HAMMER!
TAB
TAB
BACK PANEL
!
