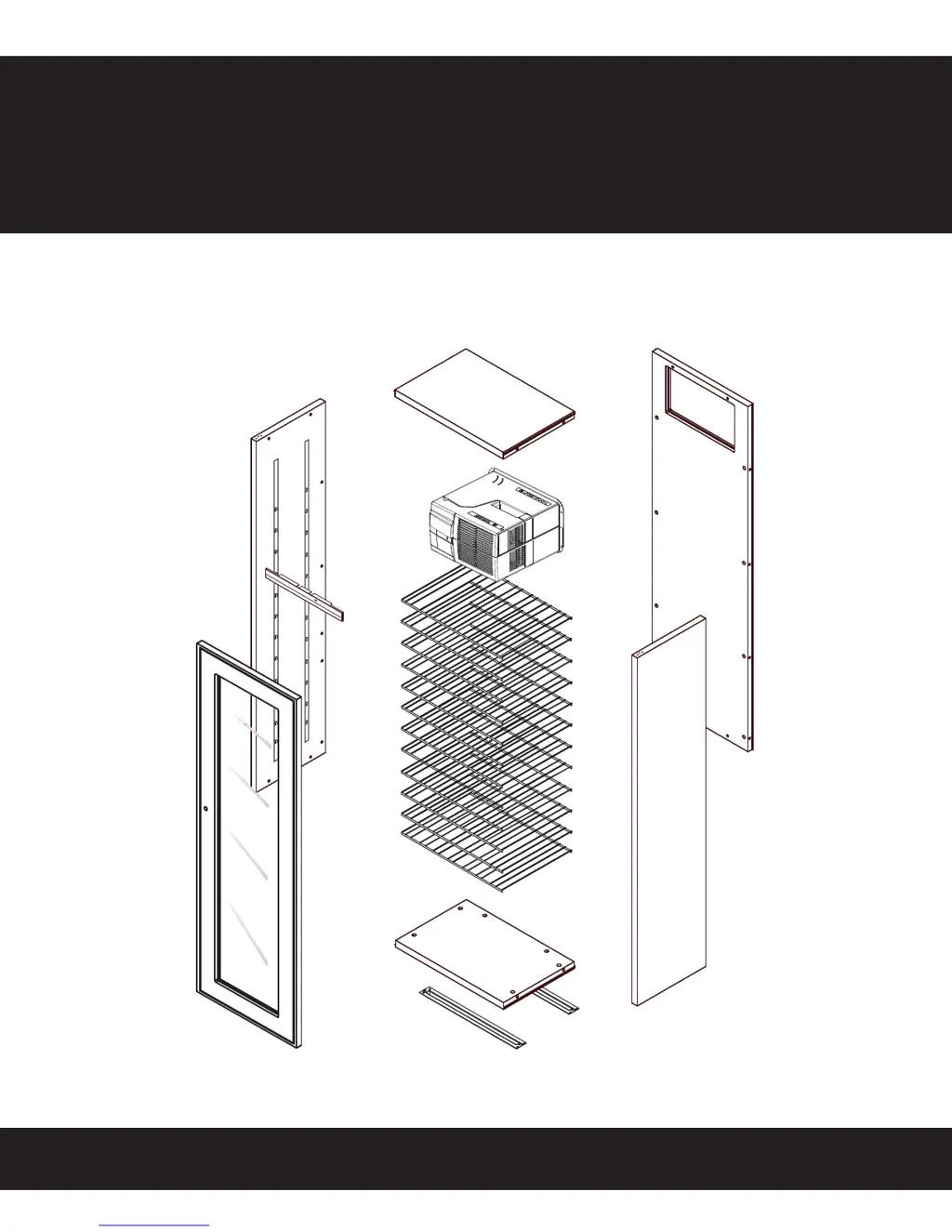

ASSEMBLY & OPERATION MANUAL

1 1 0 / 2 2 0

C E L L A R nuvo

k o o l s pac e

TM

Table of Contents

Questions and Answers

F
francismathewJul 29, 2025
What to do if my Nuvo Koolspace 110 Wine Cooler is running but not cooling sufficiently?
- E
  Erika PooleJul 29, 2025
  If your Nuvo Wine Cooler runs but doesn't cool well, several factors could be at play. First, remember it can take a few days to reach the set temperature, even in an airtight cabinet. Try to reduce ambient temperatures, especially if sunlight hits the cabinet. Check for air leaks by tightening all cams on the panels to ensure an airtight seal. Improve air circulation around the unit, and adjust the door to seal tightly by repositioning the upper hinge and leveling the cabinet. Also, consider increasing your set temperature and cleaning the fan and grille areas.
L
Lisa Green MDAug 14, 2025
Why is my Nuvo Koolspace 110 not running when plugged in?
- M
  Melissa SextonAug 15, 2025
  If your Nuvo Wine Cooler isn't running when plugged in, remember that it has a built-in 1-minute delay to protect the compressor. Also, ensure it's connected to a dedicated, separately fused and grounded 15 Amp, 120V line or 7.5 Amp, 240 V line without using an extension cord or sharing the outlet with other appliances. If it still doesn't work, unplug it for ten minutes and try again.

Summary

Read Before You Start

Step 1: Panel Preparation

Installing Insulation and Cam Pins

Attaching insulation strips and inserting cam pins into the back panel.

Step 2: Cabinet Assembly

Connecting Main Panels

Attaching top and bottom panels to the back panel using cam pins.

Locking Panels with Cams

Inserting and tightening cams to secure the connected cabinet panels.

Step 2 Continued: Cabinet Assembly

Preparing and Attaching Side Panels

Inserting cam pins into side panels and attaching them to the cabinet structure.

Securing Panels with Cam Caps

Inserting cam caps into all assembled cam holes for a complete connection.

Step 3: Hinge, Base, and Legs Installation

Step 4: Shelves Installation

Mounting Shelves

Hooking and snapping shelves into the cabinet hangers, first on one side, then the other.

Step 5: Cooling Unit Installation

Installing the Cooling Unit

Guiding and sliding the cooling unit into the back opening and securing it with bolts.

Step 7: Door Installation and Leveling

Mounting and Securing the Door

Placing the door onto the bottom hinge and securing it with the top hinge and bolts.

Controls and Operation

Unit Features and Operation

Controller Functions and Settings

Safety Features and Alarms

Troubleshooting Guide

Unit Not Running

Unit Not Cooling Sufficiently

Nuvo Koolspace 110 Specifications

General

Capacity	110 bottles
Number of Zones	2
Refrigerant	R600a
Installation	Freestanding
Temperature Zones	Dual Zone
Temperature Range	5°C to 18°C
