Nuvo Koolspace 110 - Step 1: Panel Preparation; Installing Insulation and Cam Pins

~ 4 ~
~ 5 ~

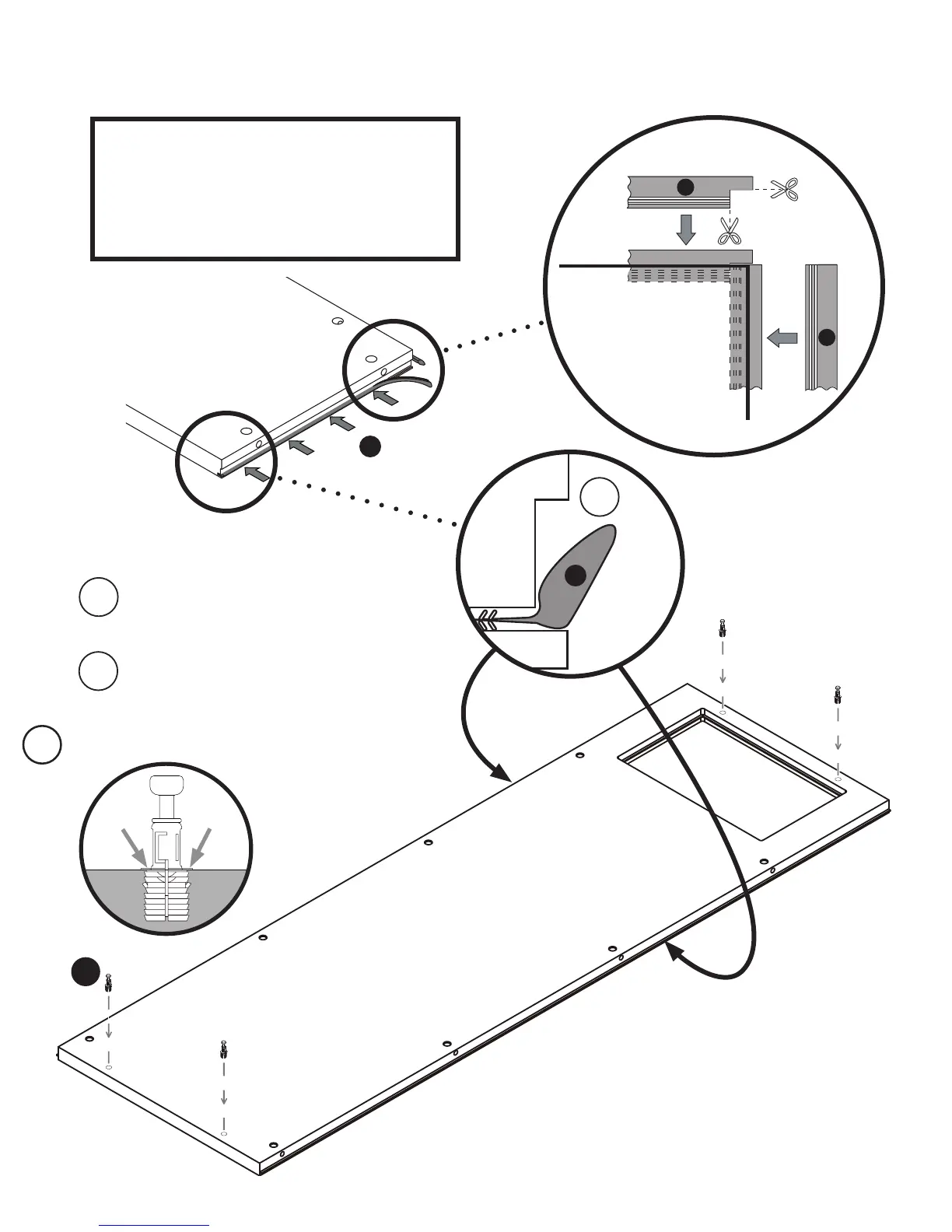

STEP 1 : PANEL PREPARATION
1
PANEL EDGE
H
CAUTION :
1. Watch for sharp staples on boxes.
2. DO NOT STEP ON PANELS
3. The manual will give a recommended
order to open boxes, it saves space and time.
2
H
!
Open Box VP1.
Install INSULATION STRIP (H) to Back,
Top, and Bottom Panels. PUSH IN
FULLY!
Insert Cam Pins (E) by hand in BACK
PANEL’S predrilled holes down to
TAB.(May require some force)
CAUTION : DO NOT BREAK CAM PIN TABS!
DO NOT HAMMER!
TAB
TAB
BACK PANEL
1
H
H
E
