Nvidia RTX A5000 User Manual

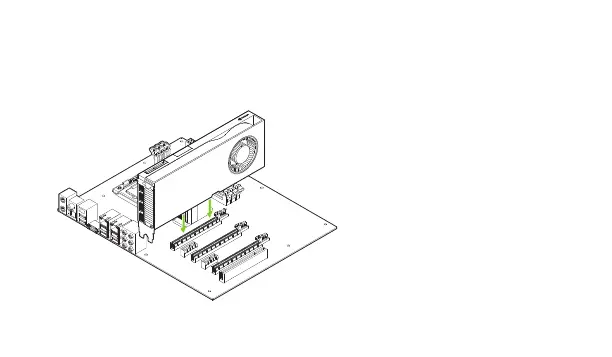

6 Install the card into the primary x16 PCI Express slot. Press gently
on the card until it is seated securely in the slot and reattach the
graphics card bracket retention mechanism.
Install the graphics card
into the primary x16 PCI
Express slot. The RTX
A6000, RTX A5000 and RTX
A2000 are dual-slot GPUs
and will cover the adjacent
slot. The RTX A4000 is a
single-slot card.

Nvidia RTX A5000 Specifications

General

GPU Architecture	Ampere
CUDA Cores	8192
Memory Size	24 GB
Memory Interface	384-bit
Memory Bandwidth	768 GB/s
TDP	230 W
NVLink	Yes
Boost Clock	1695 MHz
Interface	PCIe 4.0 x16
Tensor Cores	256
RT Cores	64
Display Outputs	4x DisplayPort 1.4a
Max Resolution	7680 x 4320 @60Hz
Power Connectors	1 x 8-pin
Form Factor	4.4" H x 10.5" L, Dual Slot
