Nvidia RTX A5000 User Manual

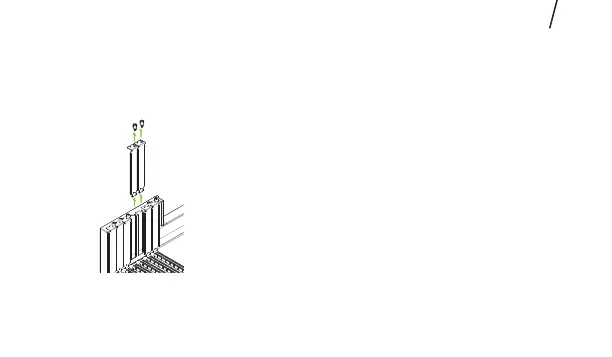

5 Remove the existing graphics card if present. If a retention
bar is holding the card in place, remove the screw securing
the card. OR, if there is no existing graphics card, remove the
access covers from the primary x16 PCI Express slot.
The RTX A6000, RTX A5000 and RTX A2000 are
dual-slot GPUs and will require removing two
adjacent slot covers. The RTX A4000 is a single
slot card and will only require a single-slot.
EN

Nvidia RTX A5000 Specifications

General

GPU Architecture	Ampere
CUDA Cores	8192
Memory Size	24 GB
Memory Interface	384-bit
Memory Bandwidth	768 GB/s
TDP	230 W
NVLink	Yes
Boost Clock	1695 MHz
Interface	PCIe 4.0 x16
Tensor Cores	256
RT Cores	64
Display Outputs	4x DisplayPort 1.4a
Max Resolution	7680 x 4320 @60Hz
Power Connectors	1 x 8-pin
Form Factor	4.4" H x 10.5" L, Dual Slot
