NV622 • REMOTE CONTROLLED LIGHTING SYSTEM • OWNER’S MANUAL
NVISIONLIGHTING.COM
1-800-835-0129
Page 3 of 12
Patent Pending
© Copyright 2018
Hopkins Manufacturing Corporation
Emporia, KS 66801
www.nVisionLighting.com
Specifications
Standard design 12V , max 40A
Rated input voltage DC 13V
Working voltage DC 11-15V
Working temperature 0°F - 225°F / -17°C - 107°C
Fuse 40A
Remote control battery 12V A23 alkaline
Low-voltage protection circuit 9.8V +/- 0.3V DC. with 8 sec delay
Thermal shut off temperature 248°F / 120°C

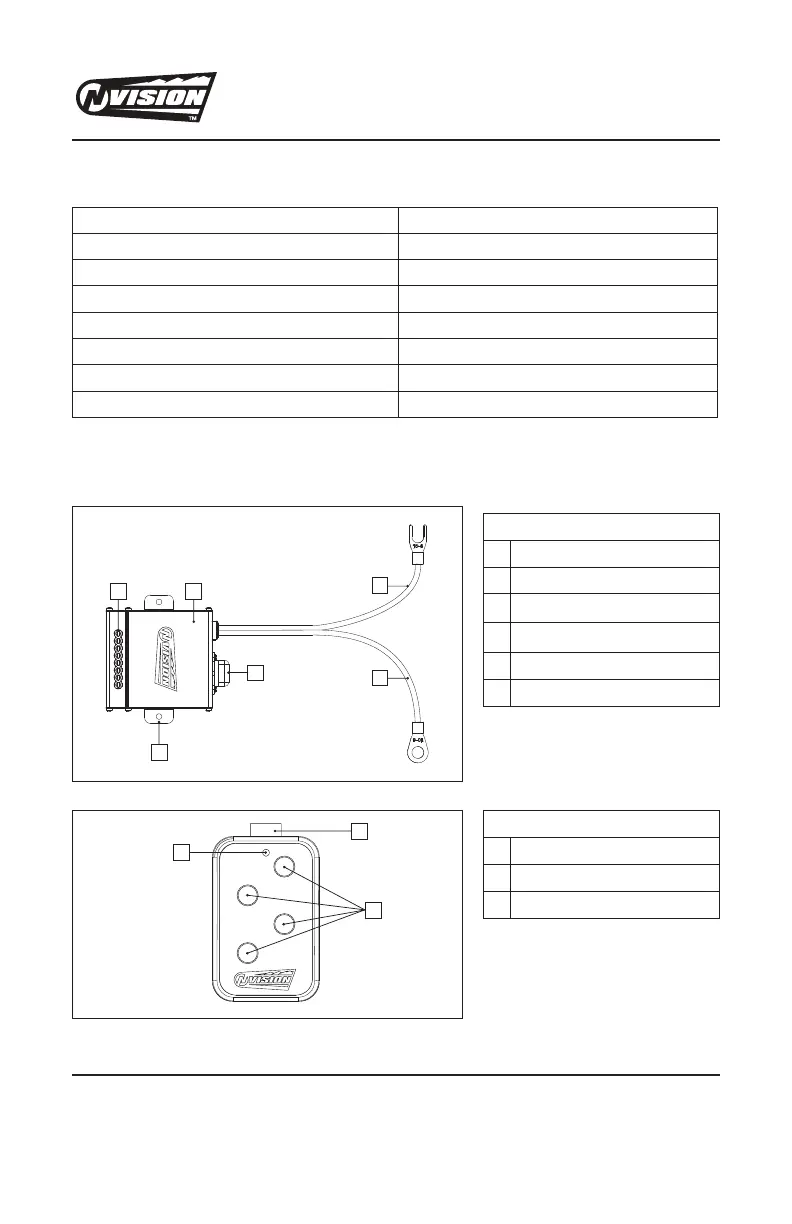

FIG 1
1 Main Unit
2 Terminals
3 Eyelet for Mounting Installation
4 Fuse Holder
5 Negative Cable
6 Positive Cable
FIG 2
1 LED Indicator / battery power
2 Visor Clip
3 Control Buttons (on/off)
FIG 2
FIG 1
12
18A
2A
2A
18A
1
2
3
3
4
5
6
