INSTALLATION
FLIP OVER THE SPARE TIRE
IF NEEDED
1. If your spare tire is Deep Side
UP then you need to unbolt it
and ip it over so the QBSTA
can sit inside of it. (See Figure 2)
SPARE TIRE WITH ABS NUT (AUDI/VW TYPICALLY)
Using x bolt and ABS Nut(supplied)
Some vehicles have a dierent type of spare tire mounting system as shown below.
Where there is a large “NUT” and a bolt coming through the center of the spare tire. If so....
1. Thoroughly clean the spare tire
2. Replace the original spare ABS xing nut with the supplied one that came with the QBSTA.
CONNECTING WIRING HARNESS
1. The QBSTA should be mounted into the spare tire area at this point.
2. Remove the M6 hex screws from the below the handle/port area as shown in Figure 5.
Insert Power/Input plug assembly. Make sure to push until it “clicks” into the locked position.
3. Once the Power/Input plug is securely plugged in, replace the handle/port cover with
the same hex screws. Tie-Wrap all wiring so it is clean and easy to remove the QBSTA
subwoofer when the time arises.
NO NEED TO FLIP OVER
THE SPARE TIRE
2. If your spare tire is Deep Side
DOWN then you simply need to
unbolt the spare tire and drop
the QBSTA in so it can sit inside
of it. (See Figure 3)
3. Make sure to check what size
the mounting bolt is as the
QBSTA comes with an 8mm and
a 10mm mounting bolt. Which
should t 90% of all vehicles out
today. (See Figure 4)

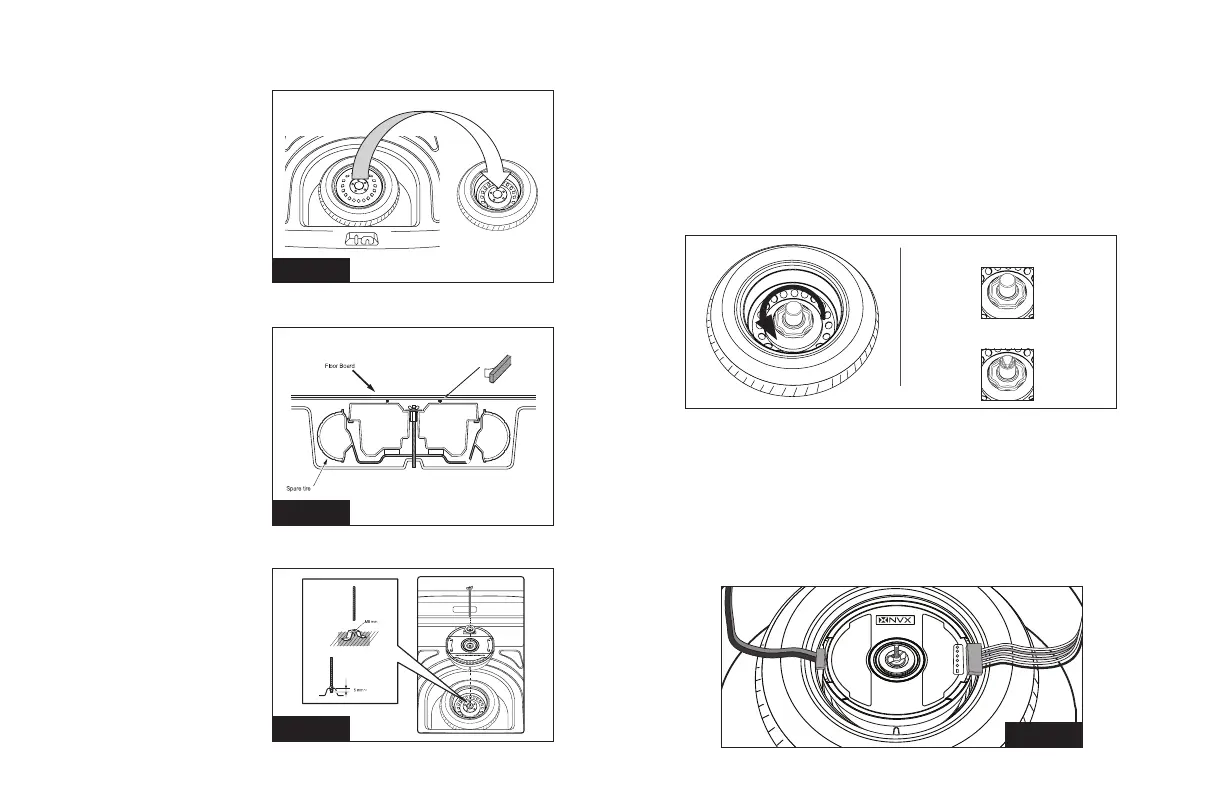

FIGURE 4
FIGURE 5
FIGURE 6
ORIGINAL OEM ABS NUT
REPLACEMENT ABS NUT (included)
FIGURE 7
5
