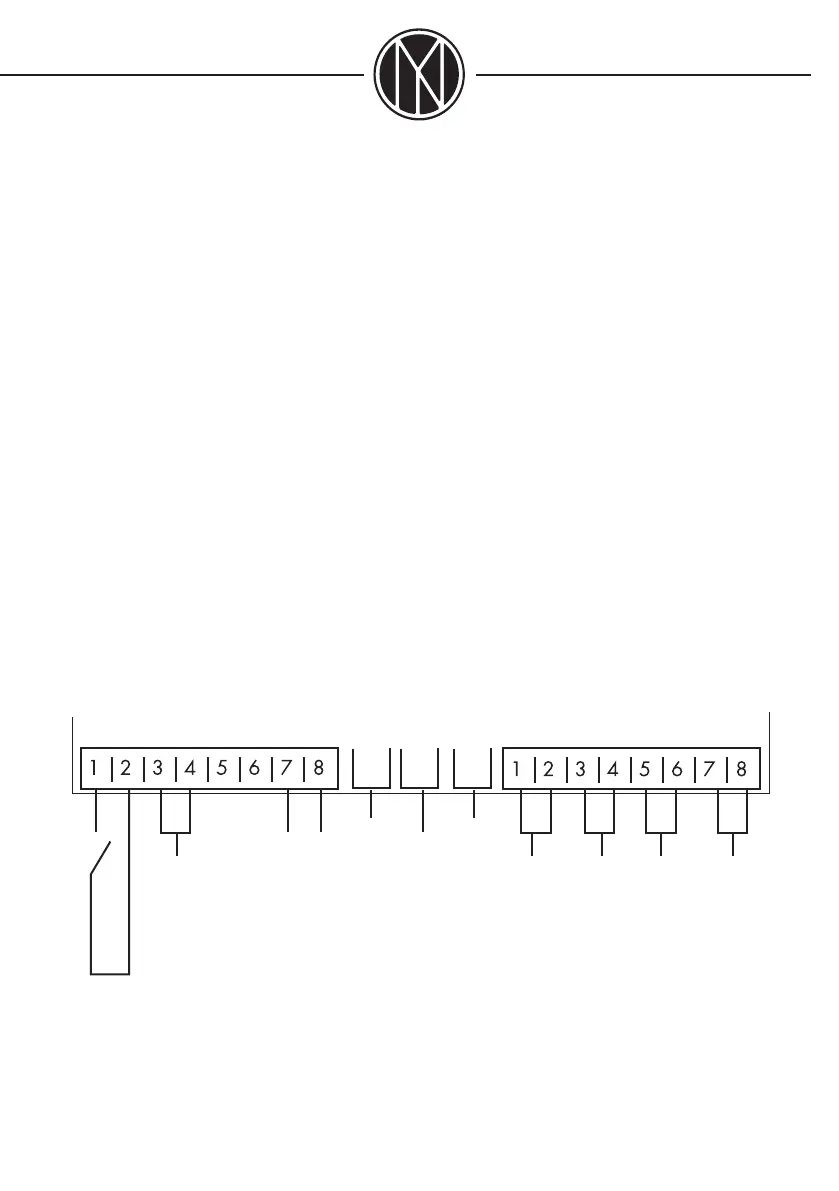

NyMo 200 - Connection of functions on the control unit; Terminals to the left; Fuses; Terminals to the right

5

 
ermostat Terminals 1 + 2
Photocell Terminals 3 + 4
Alarm (accessory) Terminals 5 + 6
Phase Terminal 7
Neutral mains Terminal 8
 
Mains fuse, 200 MA Left-hand fuse (next to terminal 8)
Fan, 2 A Middle fuse
Ignition coil, 6.3 A Right-hand fuse
 
Ignition coil Terminals 1 + 2
Fan Terminals 3 + 4
Feed auger Terminals 5 + 6
Additional feed auger Terminals 7 + 8
         



