05
C SERIES GOLD
C SERIES GOLD
Compliance Standard
ATX12V v2.52 / EPS12V v2.92
PF Correction
Active@0.96
AC Input & DC Output Rating
Fan Specs
Rated Voltage 12VDC
Bearing type Fluid Dynamic Bearing (FDB)
Dimension 135 x 135 x 25 (mm)
Air Flow 93.11 CFM
Noise value < 48.8 dBA
Rated speed 0 - 2,300 ± 10% RPM
Hazardous Materials
RoHS & China RoHS
Energy Efficiency
80 Plus Gold 10% loading: 85%, 20% loading: 87.5%, 50% loading: 90.5%, 100% loading: 87.5%
Operation Temperature
0 to 50°C
Regulations & Certifications
(EMC & Safety)
cTUV-SUDus, CUL (UL 60950/62368-1), TUV (EN 60950/62368-1),
CB (IEC 950/62368-1), CCC, CEC, BSMI, RCM, EAC, CE, LVD, UKCA, BIS, KC, FCC, IC
MTBF
100,000 hours

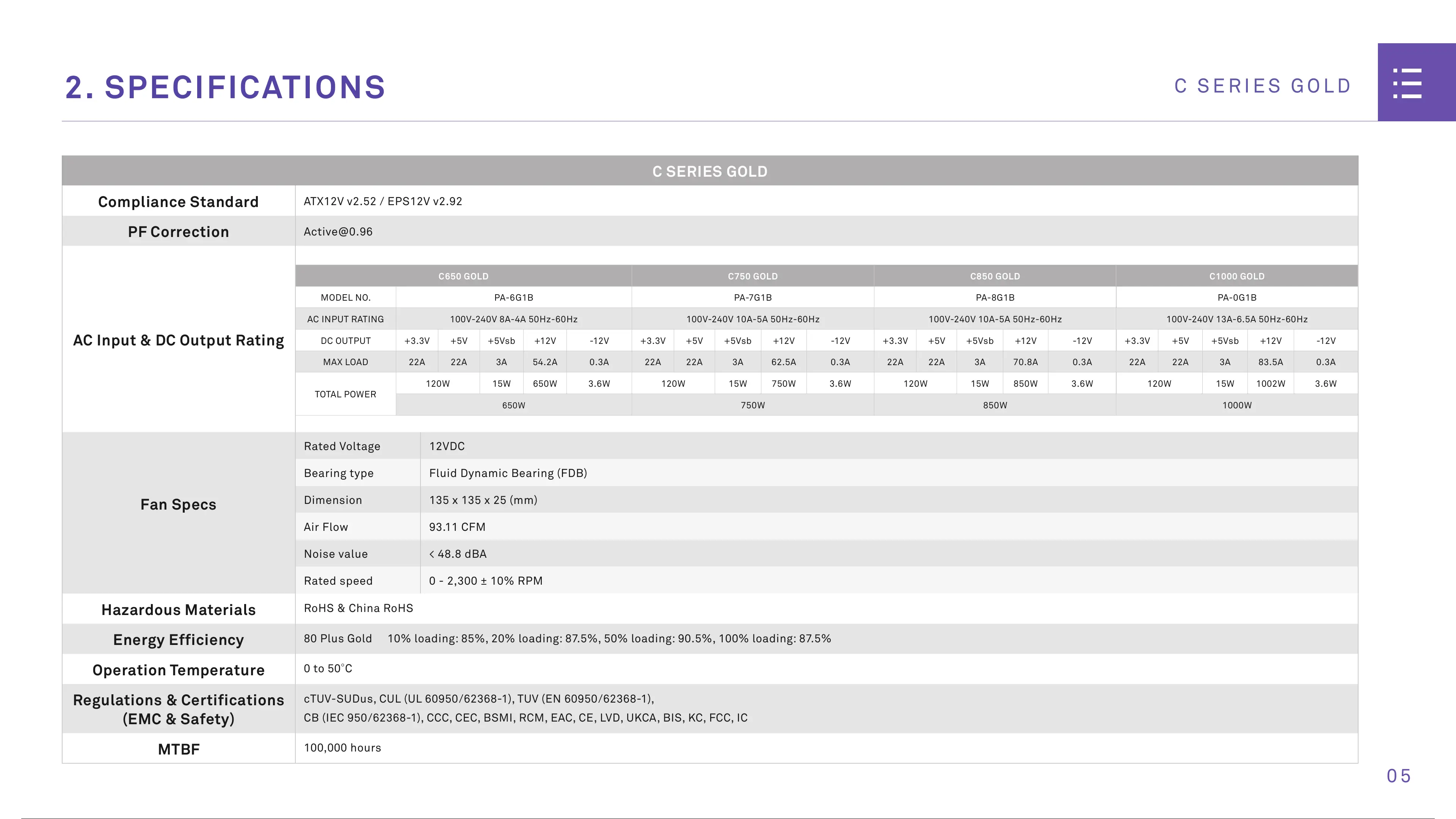

2. SPECIFICATIONS
C650 GOLD
MODEL NO. PA-6G1B
AC INPUT RATING 100V-240V 8A-4A 50Hz-60Hz
DC OUTPUT +3.3V +5V +5Vsb +12V -12V
MAX LOAD 22A 22A 3A 54.2A 0.3A
TOTAL POWER
120W 15W 650W 3.6W
650W
C850 GOLD
PA-8G1B
100V-240V 10A-5A 50Hz-60Hz
+3.3V +5V +5Vsb +12V -12V
22A 22A 3A 70.8A 0.3A
120W 15W 850W 3.6W
850W
C1000 GOLD
PA-0G1B
100V-240V 13A-6.5A 50Hz-60Hz
+3.3V +5V +5Vsb +12V -12V
22A 22A 3A 83.5A 0.3A
120W 15W 1002W 3.6W
1000W
C750 GOLD
PA-7G1B
100V-240V 10A-5A 50Hz-60Hz
+3.3V +5V +5Vsb +12V -12V
22A 22A 3A 62.5A 0.3A
120W 15W 750W 3.6W
750W
