NZXT N7 B650E - Ports Overview

12

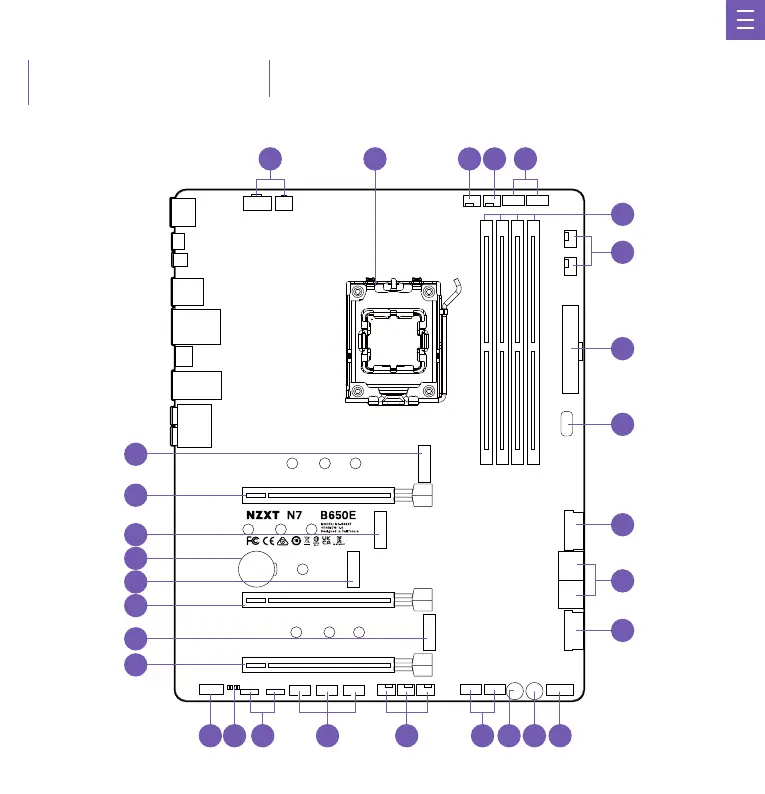

PORTS OVERVIEW
DESCRIPCIÓN GENERAL DE LOS PUERTOS
PRÉSENTATION DES PORTS
ANSCHLUSSÜBERSICHT
VISÃO GERAL DAS PORTAS
M2_4
M2_2
M2_3
PCIEX16_1
PCIEX16_2
PCIEX16_3
USB2_1 USB2_2 USB2_3
SYS_FAN5 SYS_FAN4 SYS_FAN3
F_PANEL
RSTBTN1 PWRBTN1
USB3_0_1
USB3_2_3
F_USB31_TC_2
CPU_FAN AIO_PUMP
SYS_FAN2 SYS_FAN1
ATX12V1 ATX12V2
REAR_AUDIO
HDMI
CLR_CMOS
BIOS_FB
USB2_R_1_2
USB31_TC_1
USB3G1R_1_4
USB3G2R_LAN
SATA3_0_1
SATA3_2_3
ATX_POWER
NZXT RGB 1 NZXT RGB 2
M2_1
BATTERY
2260 2242
2280
224222602280
224222602280
FRONT_AUDIO
5V_ARGB1 5V_ARGB2
NZXT RGB 3 NZXT RGB 4
7
5
6
8
9
11
10
2 3 4
129
21
22
23
26
25
24
28
27
1213141617 151820 19
