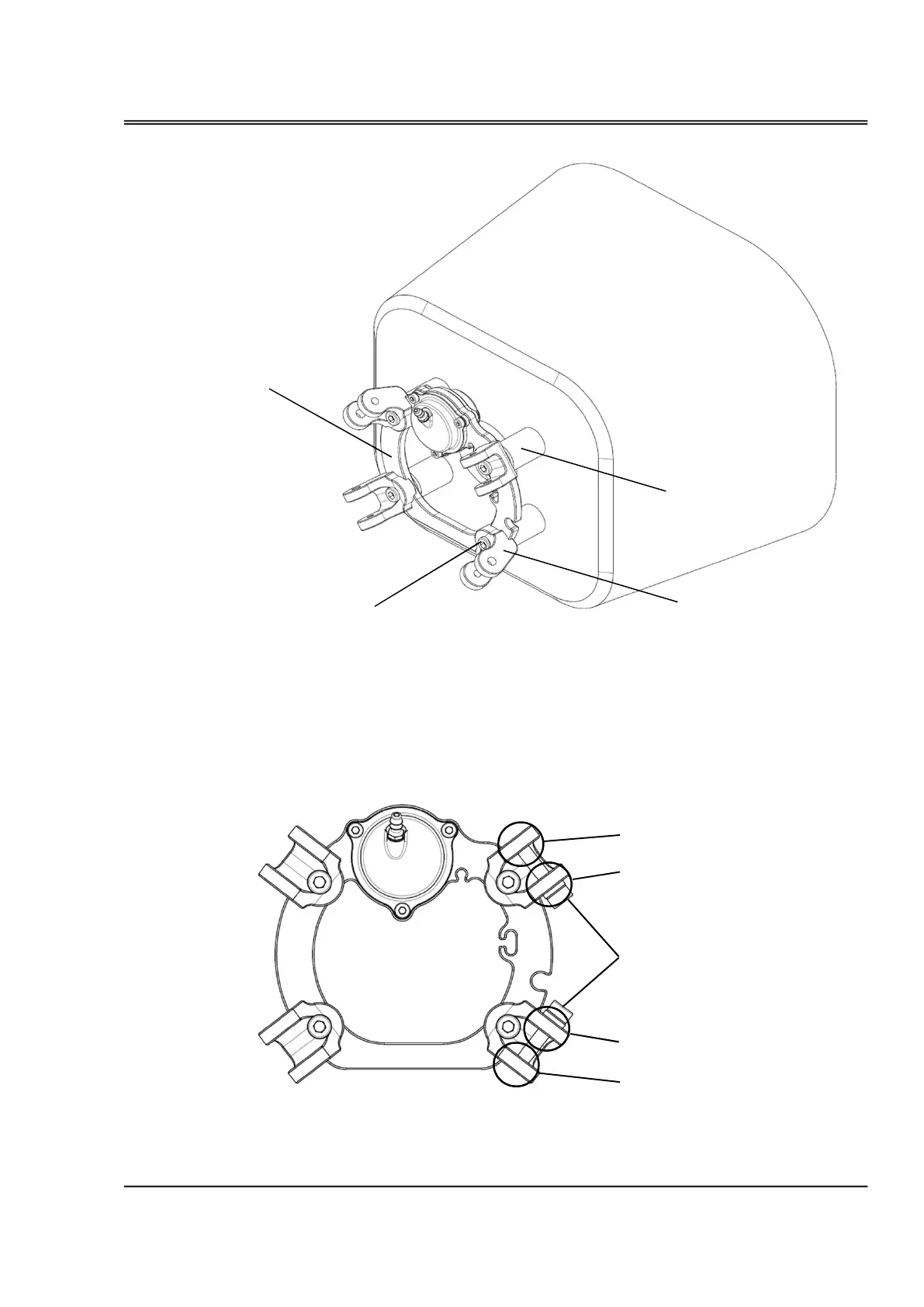

O.S. engine GF40U-FI - Installation: Mounting plate (R)

Threaded hole
Unthreaded hole
Unthreaded hole
Threaded hole
Installation
9
・Attach Mounting plate(R) to the Standoff mounts with M5x20 cap screws.
・There are two types of Engine brackets: Engine bracket A and B are different in direction of Engine
support bolts. Choose the proper engine bracker (A or B) to use on the Mounting plate (R) as shown
below.
Engine support bolt
Mounting plate (R)
Mounting plate(R)
Engine bracket
Standoff mount
M5x20 Bolt
Engine bracket A
Engine bracket B
Engine bracket B
Engine bracket A
