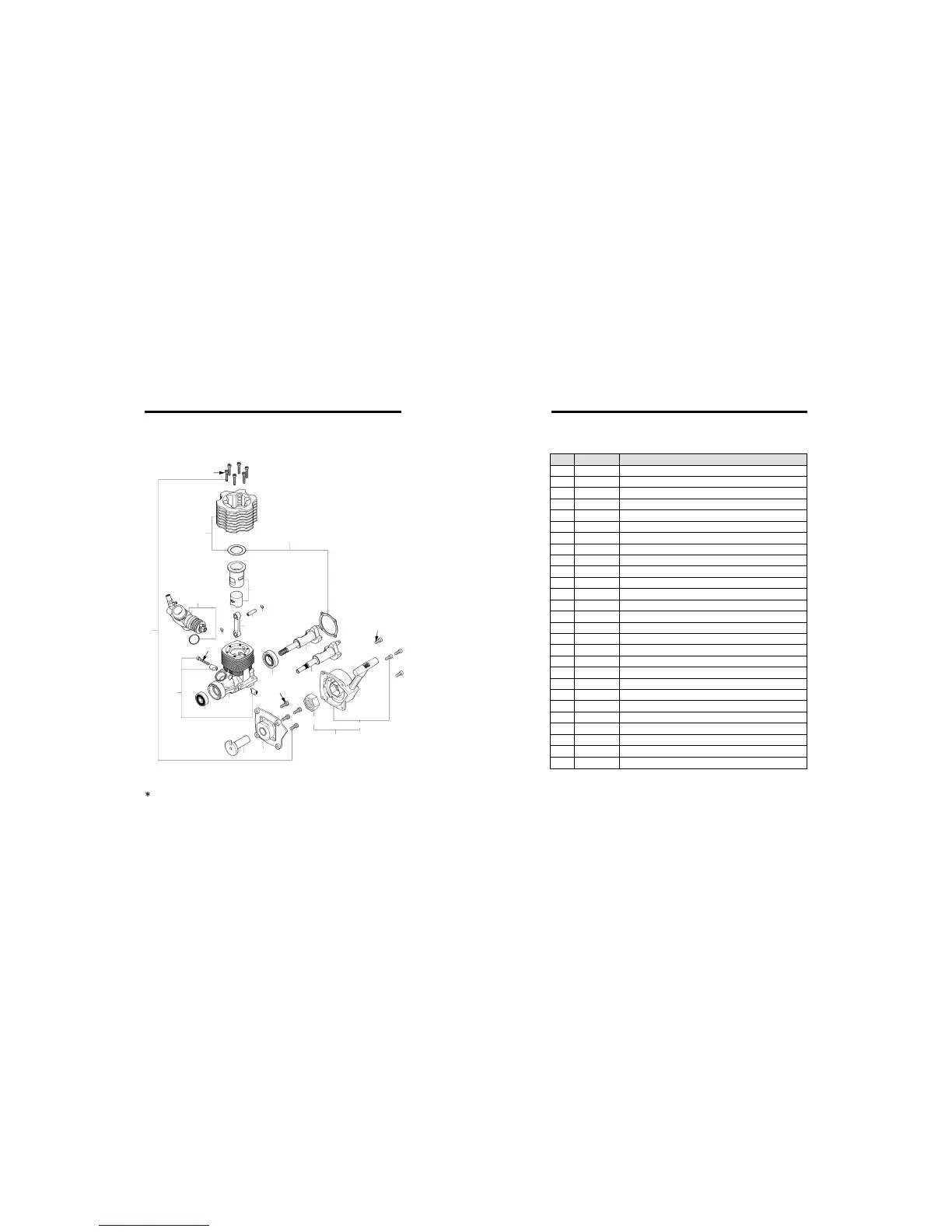

21RG-X, 21RG(P)-X ENGINE EXPLODED VIEW
Type of screw
C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
C.M2.6x15
1
2
3
4
4
5
6
7
8
9
10
11
12
11-A
13
14
15
C.M2.6x18
C.M2.6x7
M.+M2.6x7
16
16-1
16-2
27
21RG-X, 21RG(P)-X ENGINE PARTS LIST
The specifications are subject to alteration for improvement without notice.
1
2
3
4
5
6
7
8
9
10
11
11-A
12
13
14
15
16
16-1
16-2
23604010
23603000
23906000
23817000
23605000
23618001
23981700
41614000
23601000
22830000
23602030
23602020
23614000
23602050
23601800
22447005
73003000
73003100
73003200
72404110
72411000
72411020
72411050
72411010
72411040
72411030
71608001
Center Tube
Intake Elbow
Center Screen
Element Plate Set Comprising:
201 Filter Elements (4pcs.)
Super Air Cleaner 201 (W/two filter elements)
Screw Set
Gasket Set
Crankshaft Ball Bearing (Rear)
Crankcase
Crankshaft Ball Bearing (Front)
Carburetor Retainer (with screw)
Carburetor Complete (Type 20E)
Connecting Rod
Piston Pin Retainer (2pcs.)
Piston Pin
Cylinder & Piston Assembly
Heatsink Head
Crankshaft (For 21RG(P)-X)
Crankshaft (For 21RG-X)
Description
Code No.
No.
No.5 Recoil Starter Assembly
Rear Adaptor
Starting Shaft
Mount Spacer
No.5 Recoil Starter Body
No.5 Oneway Clutch
Glow Plug No.8
