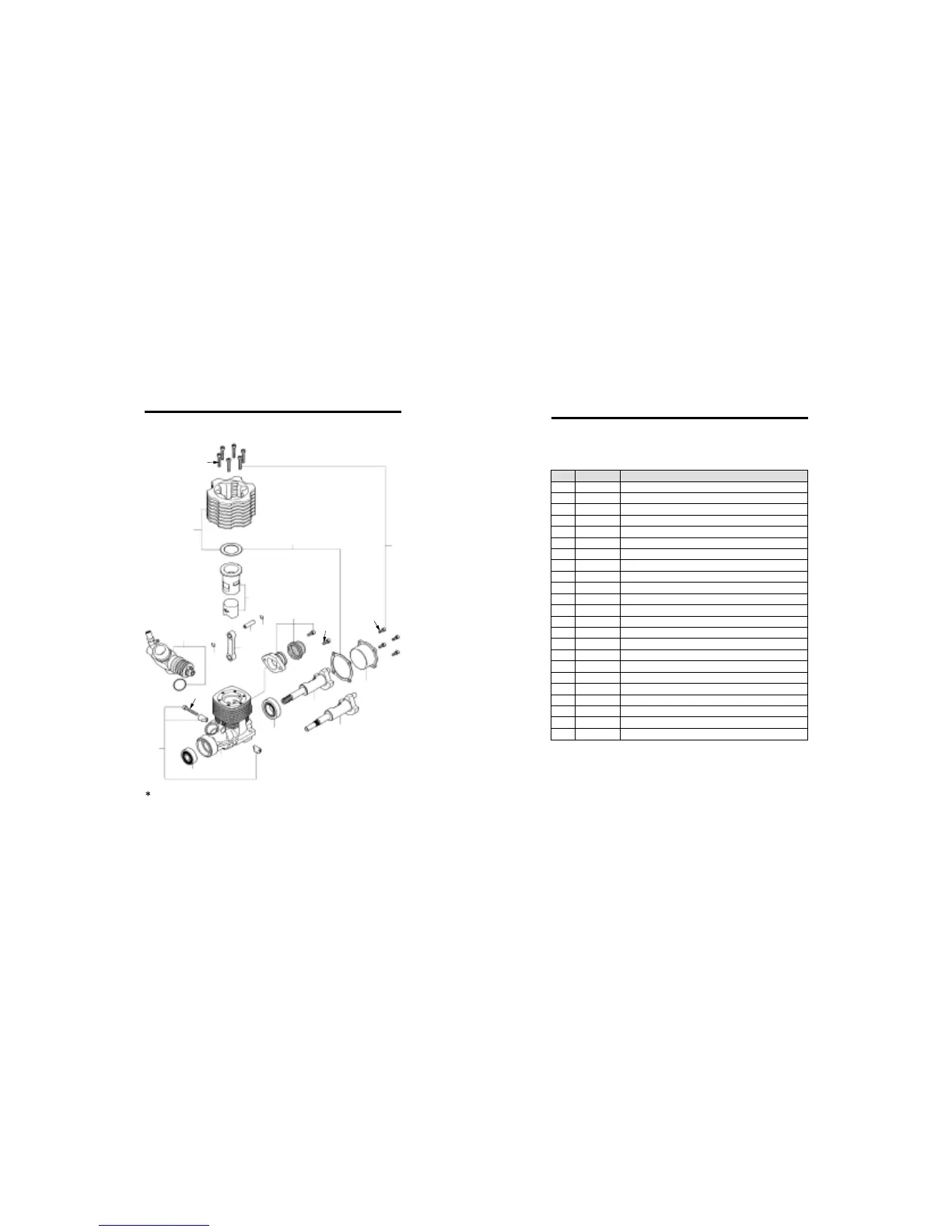

21RG, 21RG(P) ENGINE EXPLODED VIEW
C.M2.6x15
1
2
3
4
4
5
6
7
8
9
10
11
12
12-A
13
14
15
C.M2.6x18
C.M2.6x7
C.M3x8
Type of screw
C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
25
21RG, 21RG(P) ENGINE PARTS LIST
The specifications are subject to alteration for improvement without notice.
1
2
3
4
5
6
7
8
9
10
11
12
12-A
13
14
15
23604010
23603000
23906000
23817000
23605000
23618001
23981700
41614000
23601000
23626100
22830000
23602000
23602010
23614000
23607000
22447005
72411000
72411020
72411050
72411010
72411040
72411030
71608001
Description
Code No.
No.
Center Tube
Intake Elbow
Center Screen
Element Plate Set Comprising:
201 Filter Elements (4pcs.)
Super Air Cleaner 201 (W/two filter elements)
Screw Set
Cover Plate
Gasket Set
Crankshaft Ball Bearing (Rear)
Exhaust Adaptor (No.5)
Crankcase
Crankshaft Ball Bearing (Front)
Carburetor Retainer (with screw)
Carburetor Complete (Type 20E)
Connecting Rod
Piston Pin Retainer (2pcs.)
Piston Pin
Cylinder & Piston Assembly
Heatsink Head
Crankshaft (For 21RG(P))
Crankshaft (For 21RG)
Glow Plug No.8
