TOOLS
HEX SCREWDRIVER
SCREWDRIVER
Necessary for engine installation.
1.5mm, 2mm, 2.5mm, 3mm
Necessary for carburetor adjustments.
No.1, No.2, etc
LONG SOCKET WRENCH WITH PLUG GRIP
Recommended for easy removal and
replacement of the angled and recessed
glowplug, the O.S.Long Socket Wrench
incorporates a special grip.
Heatsink Head
Crankcase
Mounting Lugs
Exhaust
Carburetor
Type 11K
Crankshaft
Rear Adaptor

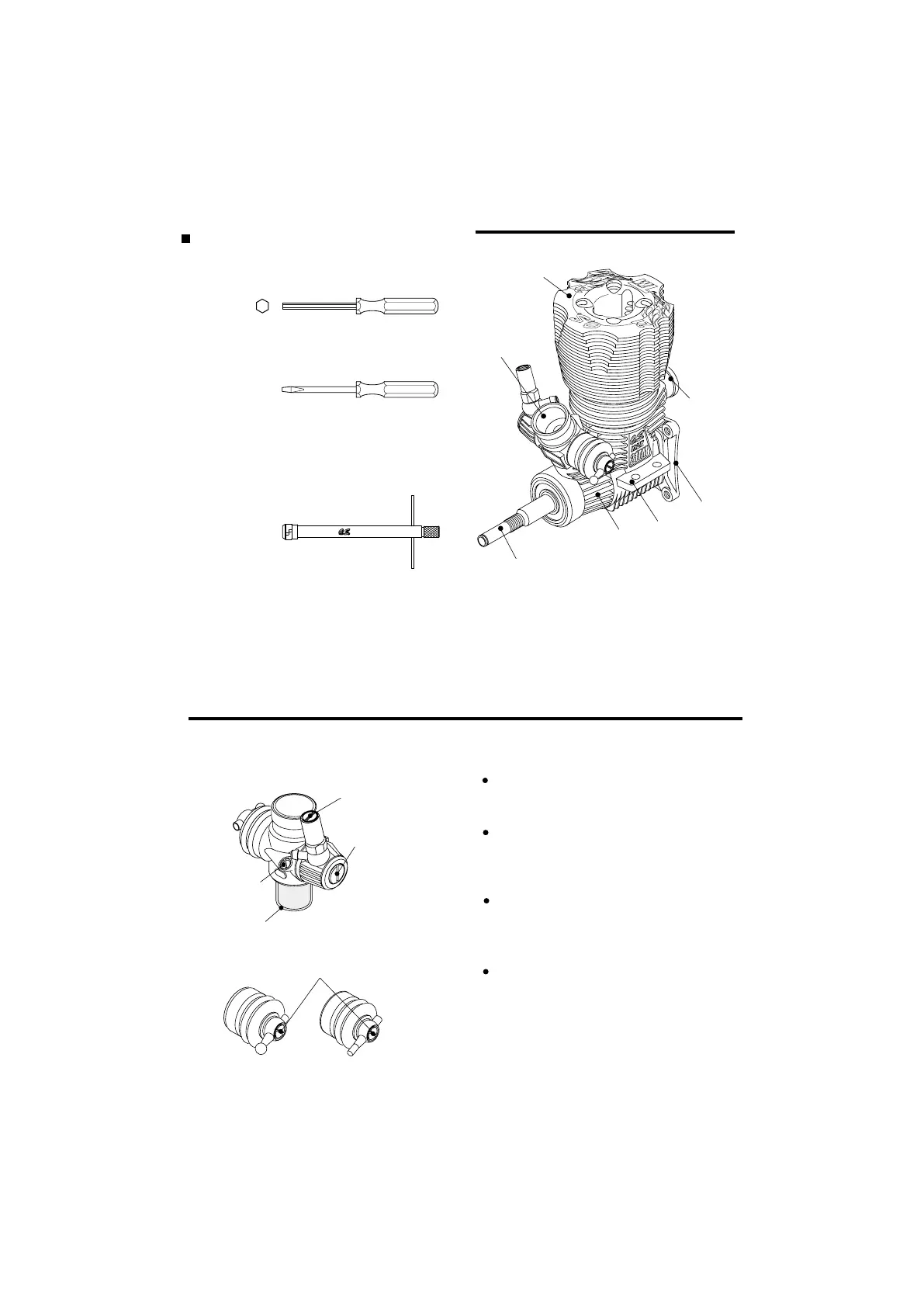

BASIC ENGINE PARTS
MAX-21TM (T-Maxx)
11
CARBURETOR CONTROLS
11K, 11K-R
The Needle-Valve:
The Mixture Control Valve:
Four adjustable controls are provided on
this carburetor.
For adjusting the mixture strength when the
throttle is fully open.
For changing the mixture strength at mid
speed and acceleration. (Do not rotate the
screw more chan one turn.)
The Throttle Stop Screw:
For setting the minimum idle speed:
For adjusting the mixture strength at part-
throttle and idle speed, to obtain steady
idling and smooth acceleration to mid speed.
The Metering Needle:
NOTE: Readjustment may be necessary,
occasionally to allow for changes in fuel
formula gear ratio or clutch engagement
point.
Metering Needle
Throttle Stop
Screw
Mixture Control Valve
Needle Valve
Thermo Insulator
