O.S. engine MAX-46AX User Manual

26

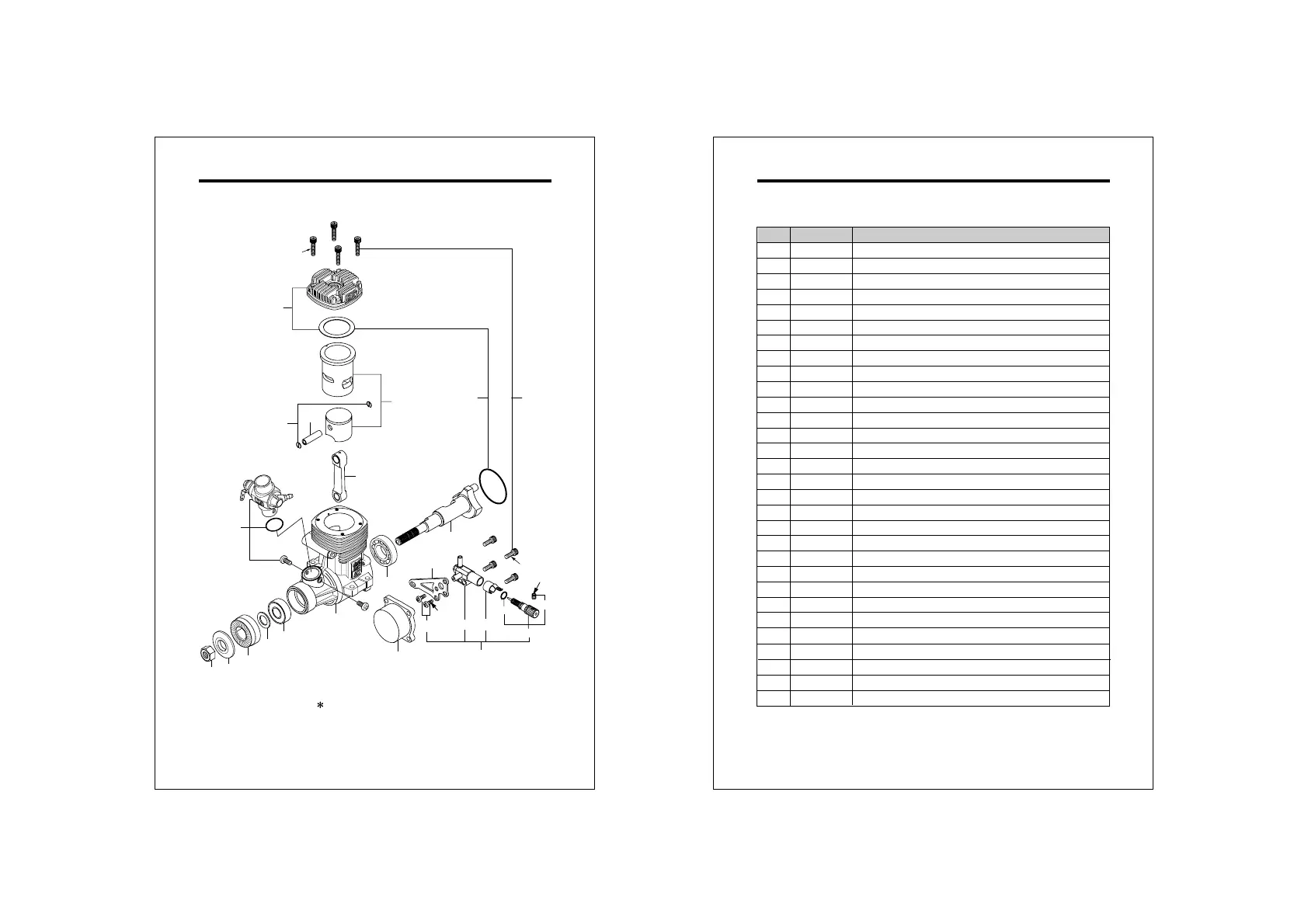

ENGINE EXPLODED VIEW
S.M3X3
18-1
18-2
18-3
18-418-5
18-6
T.+3x10
C.M3x15
C.M3x8
1
2
3
4
5
6
7
8
9
11
12
13
14
10
15
16
17
19
18
Type of screw
C...Cap Screw M...Oval Fillister-Head Screw T...Tapping Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
27
ENGINEN PARTS LIST
The specifications are subject to alteration for improvement without notice.
Cylinder Head
Cylinder & Piston Assembly
Piston Pin
Piston Pin Retainer
Connecting Rod
Carburetor Complete (Type 40G)
Propeller Nut
Propeller Washer
Drive Hub
Thrust Washer
Crankshaft Ball Bearing (F)
Crankcase
Crankshaft Ball Bearing (R)
Crankshaft
Gasket Set
Cover Plate
Needle Stay
Needle Valve Unit Assembly
Needle Assembly
"O" Ring (2pcs.)
Set Screw
Ratchet Spring
Needle Valve Unit Body
Needle Valve Unit Retaining Screw
Screw Set
Glow Plug A3
E-3010 Silencer Assembly
Pressure Fitting (No.7)
Assembly Screw
Retaining Screw (C.M3x35 2pcs.)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18-1
18-2
18-3
18-4
18-5
18-6
19
24604000
24603000
24806301
24817100
25305002
24681000
23210007
23209003
24608000
46120000
26731040
24601000
26730040
24602000
24614000
24607000
24682930
24681900
22681980
24981837
26381501
26711305
24681910
26582920
24613000
71605300
24625000
22681957
25425310
25425400
Description
Code No.
No.

O.S. engine MAX-46AX Specifications

General

Brand	O.S. engine
Model	MAX-46AX
Category	Engine
Language	English
