O.S. engine Max-50SX-H Ring - Three View Drawing

8.17 cc
(
0.499 cu.in.
)
22.0mm
(
0.866 in.
)
21.5mm
(
0.847 in.
)
2,000
~ 20,000 r.p.m.
1.8 bhp / 17,000 r.p.m.
413g(14.58oz.)
■
■
■
■
■
■

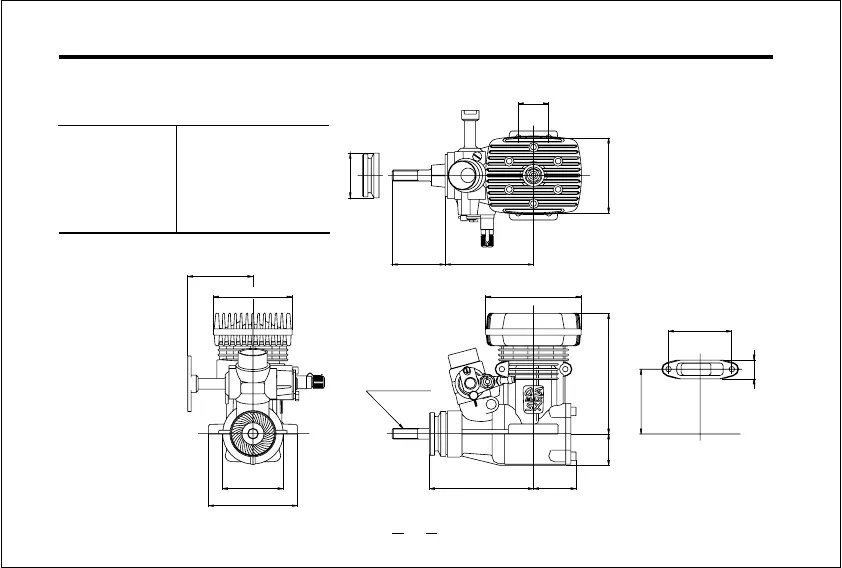

THREE VIEW DRAWING
Displacement
Bore
Stroke
Practical R.P.M.
Power output
Weight
SPECIFICATIONS
Dimensions(mm)
38
46
52
36
UNF1/4-28
61
24.8
56
70.5
18.5
37
37.7
11
44
51.631
Ø26.2
17.5
25
