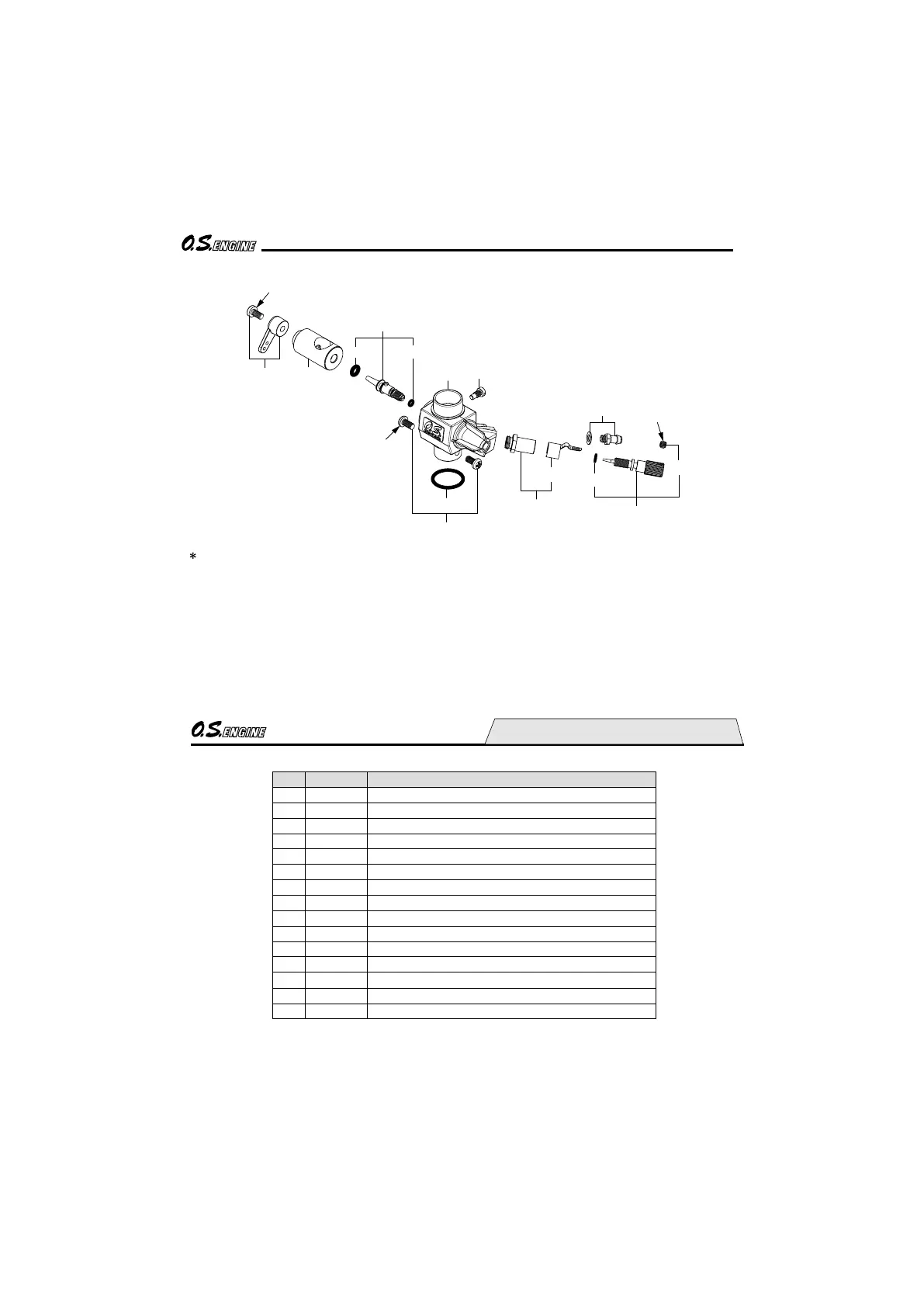

61C CARBURETOR EXPLODED VIEW
Type of screw
N...Round Head Screw S...Set Screw
45
61C CARBURETOR PARTS LIST
Description
Code No.
No.
Specifications are subject to alteration for improvement without notice.
Throttle Lever Assembly
Carburetor Rotor
Mixture Control Valve Assembly
"O" Ring (L) (2pcs.)
"O" Ring (S) (2pcs.)
Carburetor Body
Roter Guide Screw
Fuel Inlet (No.1)
Needle Assembly
"O" Ring (2pcs.)
Set Screw
Needle-valve Holder Assembly
Ratchet Spring
Carburetor Rubber Gasket
Carburetor Retaining Screw
1
2
3
3-1
3-2
4
5
6
7
7-1
7-2
8
8-1
9
10
22081408
29087200
29181620
46066319
22781800
29087100
45581820
22681953
24081970
24981837
26381501
27381940
26711305
46215000
25081700
