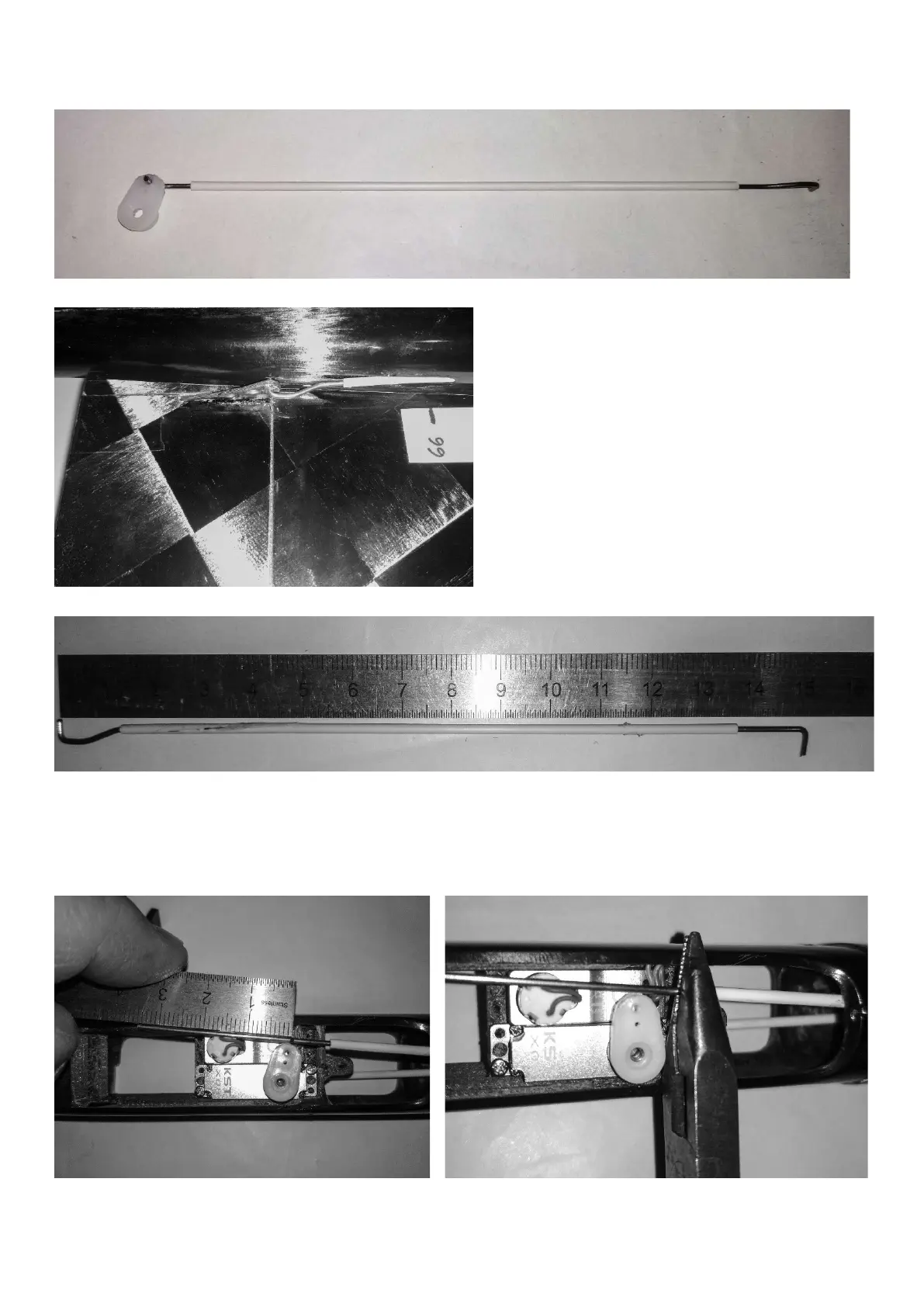

The sleeve must be glued only when the linkage will be entirely cut and ready (elbows and lengths). Don’t forget to insert rod in sleeve first.
Immobilize the aileron with a piece of tape and mount the wing on the fuselage.
Then prepare the aileron connexion with the right width and shape for an easy mounting/unmounting... The length will differ for your installation, so do not take this
image as a reference for length.
After the aileron bends are prepared, mark with a pen about 1.5 mm before the horn hole. (Again, aileron is secured at
neutral and servo at neutral with the definitive tilt!) The difficulty is to bend the rod at the right length, take your time
and calculate your gesture. Put your pliers just over the pen mark, edge to edge, the pliers must cover the pen mark. Fold
up the rod and cut it at the right height, to let the nosecone slide into position without friction.
