Disassemble Procedure

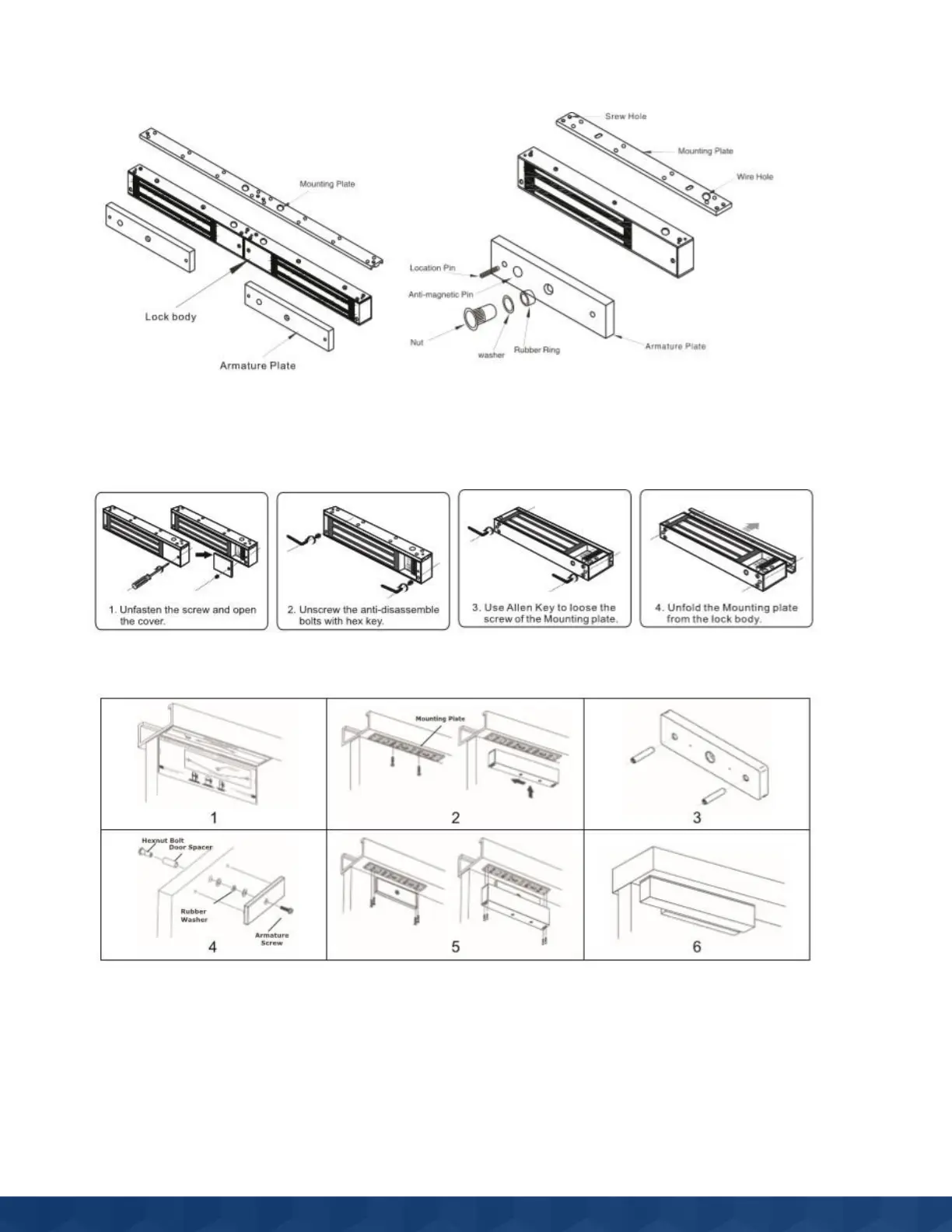

Disassemble the cover and band before installing the lock.
Main Components Diagram
Standard Mounting Method
1. Use the supplied template to determine the correct location and size of mounting holes
for both the door and frame header. Ensure that the door opens away from the Maglock. In
the case of a single door, the Maglock is positioned as close as possible to the vertical
section of the door jamb.Drill door and frame as indicated.
2. Loosely install the mounting plate using two of the supplied Philips head mounting
screws in the elongated slots. Attach the Maglock to the mounting plate.
Double Door Single Door
To Next Page
