8. Tap in a “Tee” foot on the outermost ends of the product.
Install two (2) Tees in the middle section and two (2) Mono legs on the inner
Tee of the outer panels.
IF YOU CHOOSE TO GLUE:

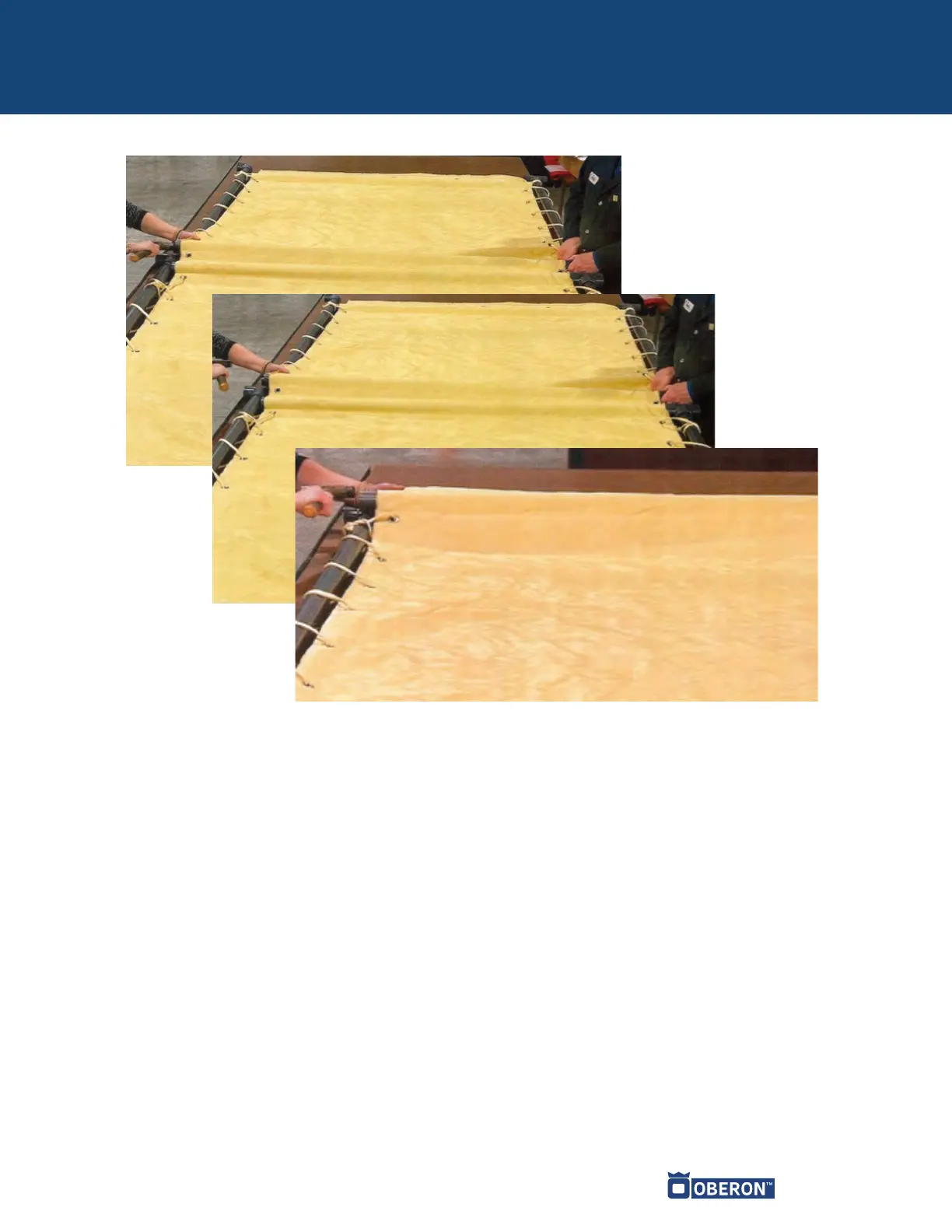

9. Clean all joining areas with a clean rag. Apply cement to the bottom end of
a 64-1/2” tube (be sure to move the fabric away from the area), and the
appropriate Tee socket, and install with a quarter turn until the tube bottoms
out.
Hold in place for approximately 15 seconds. Joint may slip open if not held.
Cement all six (6) tubes to the Tee joints.
10. Install feet as per instruction #8. DO NOT GLUE Tee feet. You may choose to
glue the “Mono feet” in place. This is recommended.
Assembly Instructions
© Oberon
TM
| All rights reserved. Page 6 of 10
Arc Curtain Cube
