Oceanic ALPHA 8 - Page 11

REGULATORS

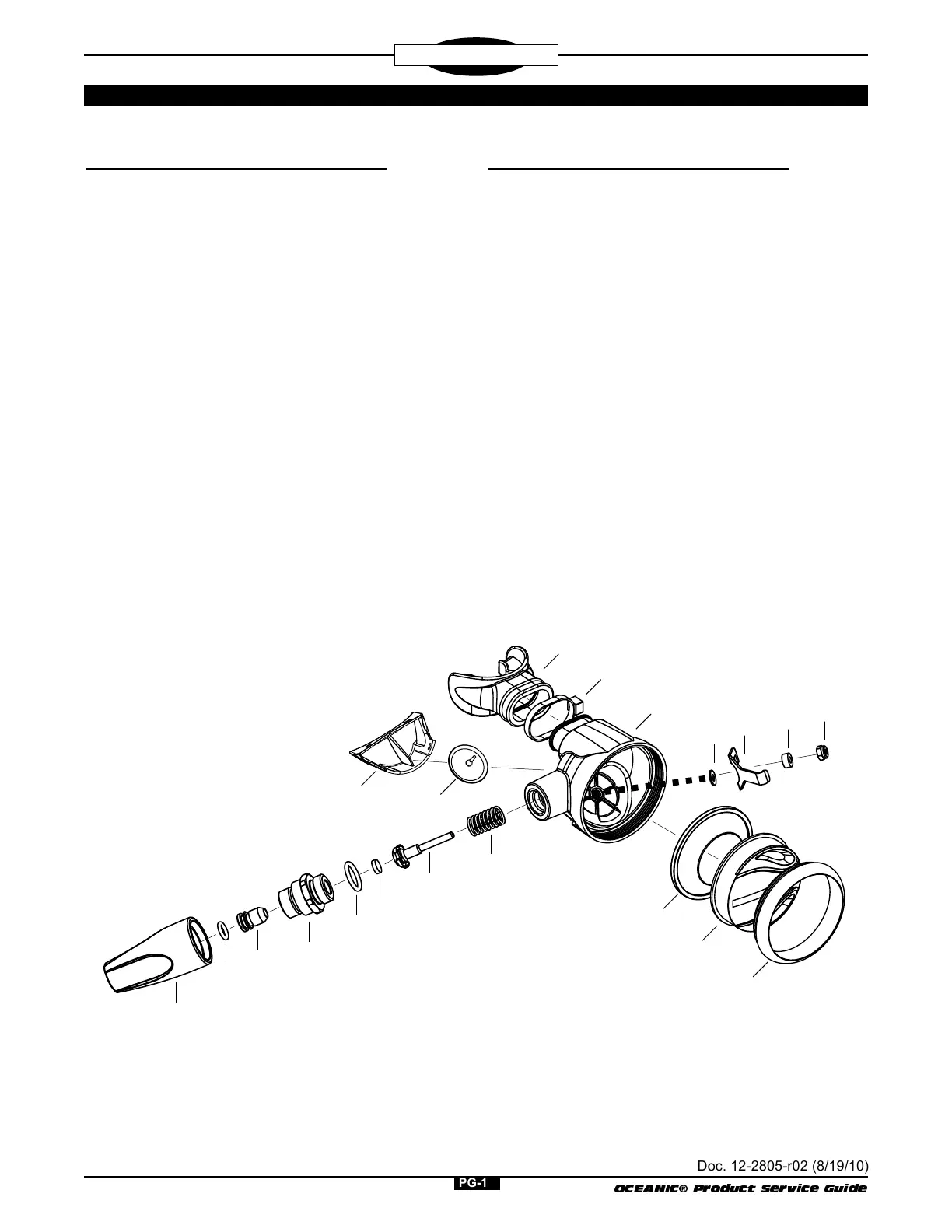

ALPHA 8 SECOND STAGE
© 2002 Design, 2005
OCEANIC ® Product Service Guide
Doc. 12-2805-r02 (8/19/10)
PG-11
1a 2.010 O-RING, ORIFICE
2c 6621 ORIFICE
3c 4330 COUPLING, INLET
4b 3.906 O-RING, COUPLING
5a 4340 SEAT, POPPET
6c 4333 POPPET
7b 5074 SPRING, POPPET
8c 6833.07A ASSEMBLY, HOUSING (BK)
9c 4587 ARM, LEVER
10a 5117 WASHER
11b 4335 SPACER
12a 4336 NUT, LOCK
13c 6822.07 COVER, EXHAUST (BK)
14b 6326 VALVE, EXHAUST
20
Dia.
No. Part # Description
Dia.
No. Part # Description
15b 6827 DIAPHRAGM
16c 6831.07 COVER, FRONT (BK)
6831.29 COVER, FRONT (BK/GY)
6831.53 COVER, FRONT (BK/YL)
17c 6832 RING, COVER (PLASTIC)
6861 RING, COVER (ALUMINUM)
18b 4485.07 MOUTHPIECE (BK)
19a 1978.07 WRAP, TIE
20c 6325 PROTECTOR, HOSE
N/S 40.2100.030 HOSE, LP (30" BK)
N/S 40.2118.039 HOSE, LP (39" YL)
N/S 2.010 O-RING, LP HOSE (SECOND STAGE END)
N/S 3.903 O-RING, LP HOSE (FIRST STAGE END)
N/S 40.6160 KIT, SERVICE PARTS (Includes all Bold items)
(P/N 2.004 O-RING is not used with the Alpha 8)
