4.2 Skeg Installation (Q-Boat 1800D)
The following items are required to install the skeg:
1 Aluminum skeg
6 #10-24 x 1” flathead machine screws
6 #10-24 locking nuts
6 #10 flat washers
1 Phillips screwdriver
1 3/8” end wrench
RTV sealant as required

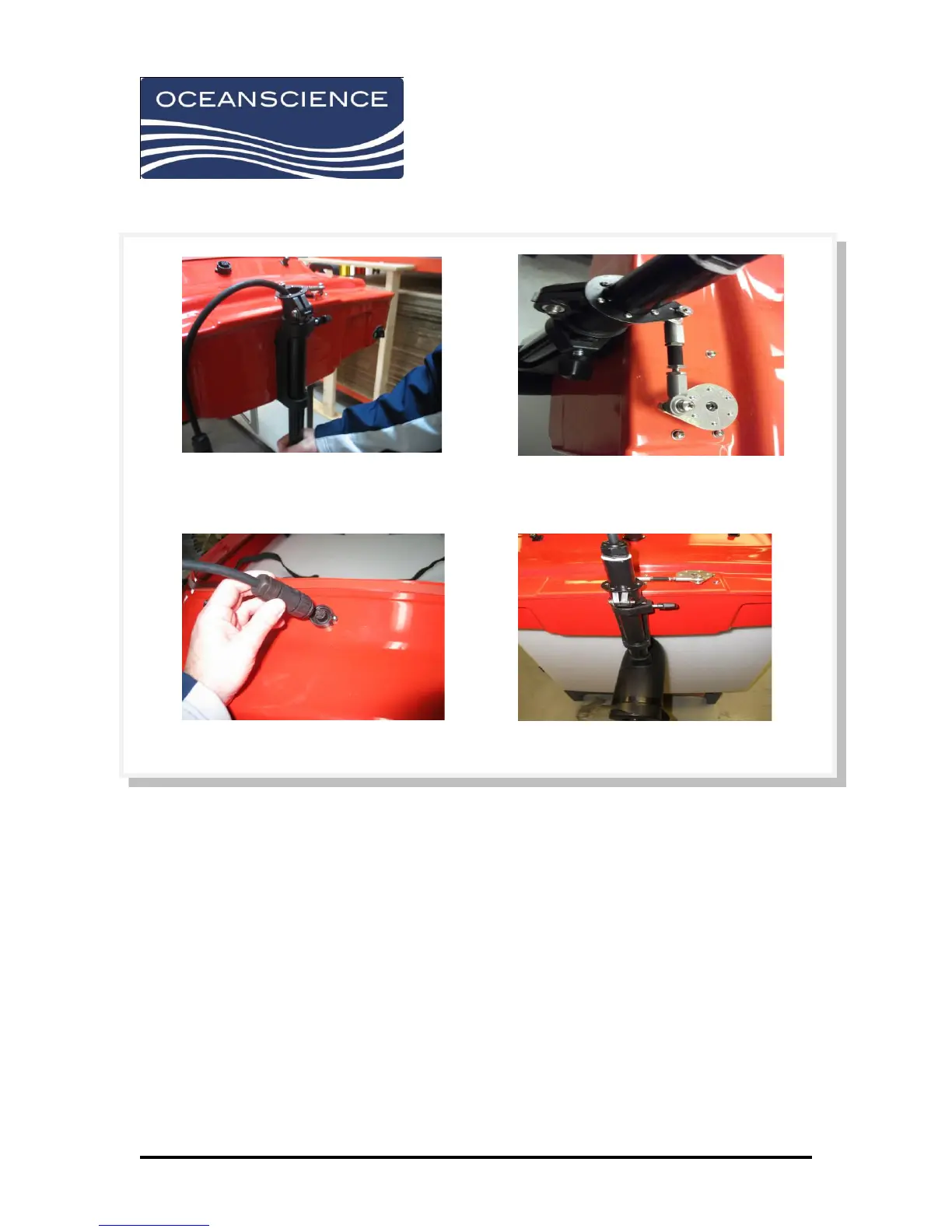

(Fig. 4.1) Insert connector and cable up
through outdrive mount and steering
clamp
(Fig. 4.2) Position outdrive shaft so top of
cable is 2-3” above outdrive steering arm
(Fig. 4.3) Attach steering linkage to
outdrive steering and servo arm.
(Fig. 4.4) Connect motor power/control
cable to the 4-pin bulkhead
