ODB SCL800SM-3X - In-Cab Controls Mount - 3 Axis

143
ODB COMPANY
800-446-9823 SCL800SM3X

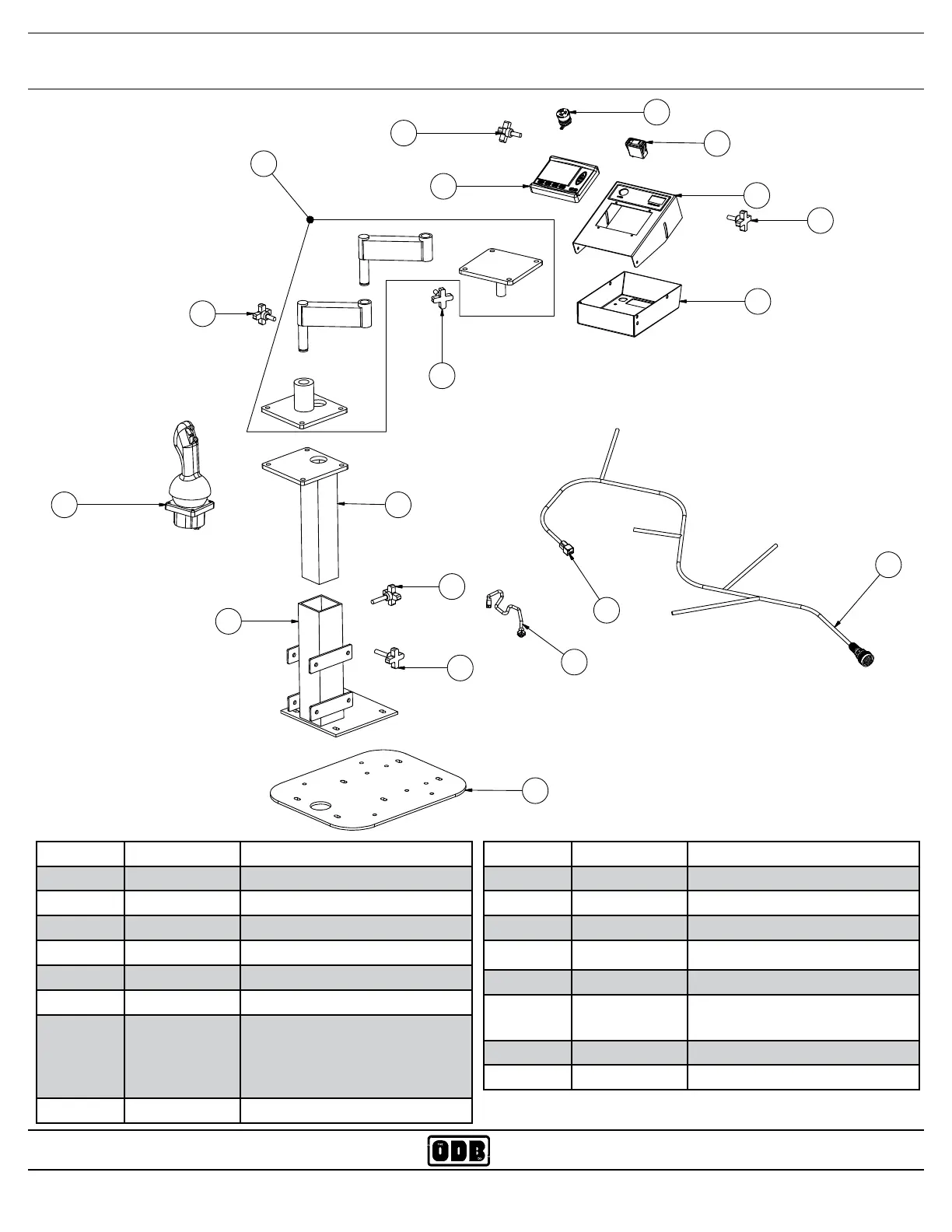

11.4 In-Cab Controls Mount - 3 Axis
3 Axis units May 2010 and after
ITEM # PART # DESCRIPTION
1
TCC.2000 IQAN Display
2
STD.3040.B Emergency Stop Button,2013-
3
STD.3016 Power Switch
4
TCC.2027F Display Box Top
5
TCC.2027B Display Box Bottom
6
TCC.1109F Knob, Adjustment
7
TCC.1109B Swivel Mount Kit
*Male Mounting Plate
*Swivel Arm x2
*Female Mounting Plate
8
TCC.1109C Telescoping Tube
ITEM # PART # DESCRIPTION
9
TCC.1109J Receiving Tube
10
TCC.1109E Knob, Adjustment
11
STD.4205 Wiring Harness, Joystick
12
TCC.2014C Wiring Harness,
IQAN to Engine
13
STD.3118C Mounting Plate
14
STD.4204
TCC.2043.B
Joystick
Guard
15
VF4-15F11 Relay on Wiring Harness
NS
TCC.2060 Diode
5
6
4
3
2
6
1
6
6
14 8
9
13
11
12
15
10
10
7
