8.ENGINE
8-2
INSPECTION
ENGINE OIL PRESSURE
NOTE : The engine oil pressure test
should be
Done with a warm engine100°C(212 ° F)
and the recommended oil.
Remove the oil pressure switch. Refer to
OIL PRESSURE SWICH in this subsection.

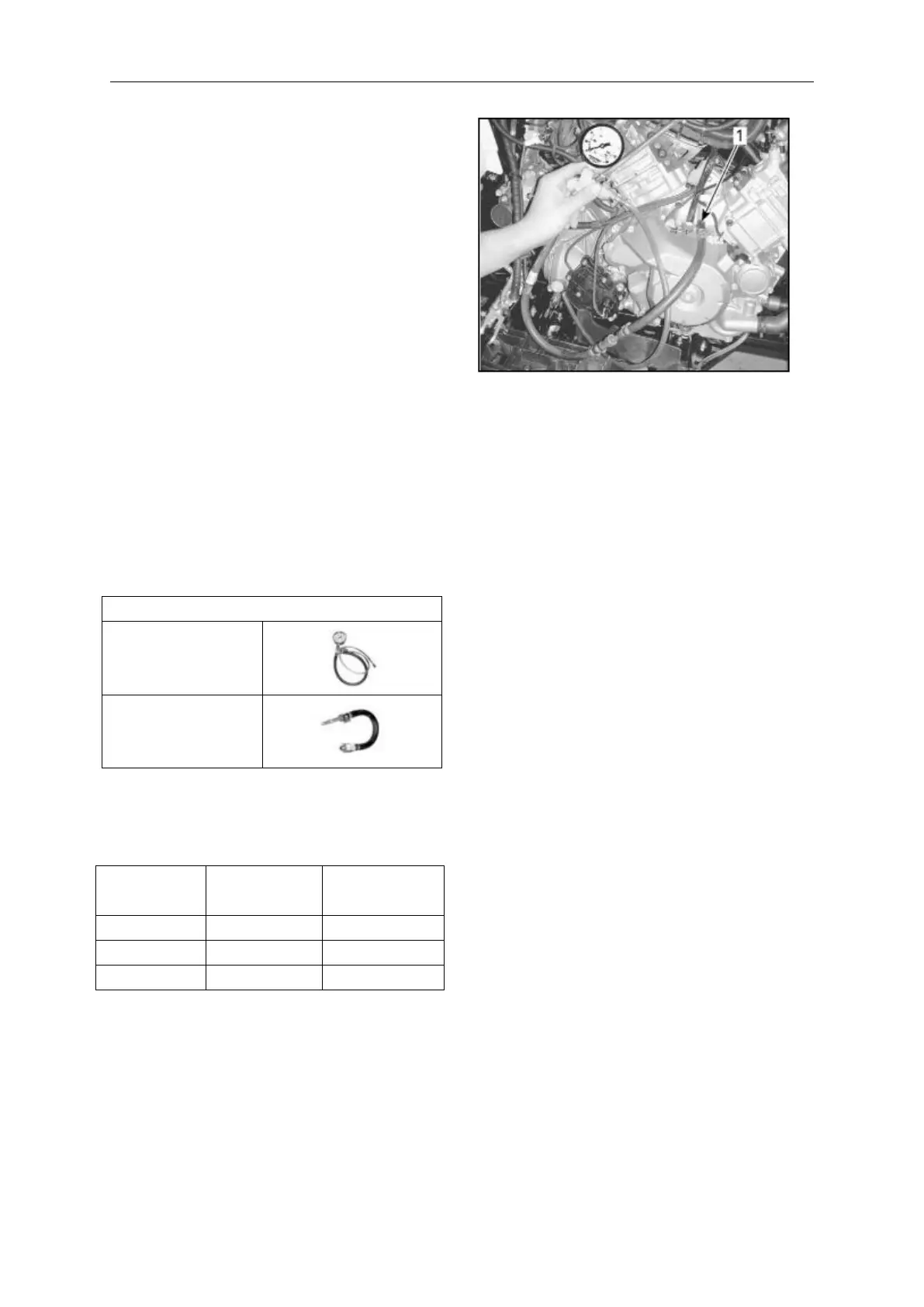

Use the pressure gauge with the proper
adapter hose.
REQUIRED TOOL
PRESSURE GAUGE
ADAPTER HOSE
The engine oil pressure should be within
the fol- lowing values.
OIL
PRESSURE
1250 RPM
6000 RPM
MINIMAL
70kPa(10PSI)
300kPa(44PSI)
NOMINAL
150kPa(22PSI)
350kPa(51PSI)
MAXIMA L
250kPa(36PSI)
450kPa(65PSI)
If the engine oil pressure is out of
specifications,
check the points described in
TROUBLESHOOT
INE in this subsection.
Remove oil pressure gauge and adapter
hose.
Reinstall the oil pressure switch,
TROUBLESHOOTING
LOW OR NO OIL PRESSURE
1. Oil level is too low.
-Refill engine with recommended engine
oil Refer to OIL LEVEL VERIFICATION in
the PERIODIC MAINTENANCE
PROCEDURES subsection.
-Check for high oil consumption ,refer to
