Installating Oil Cooler
For installation, reverse the remova1
procedure. Pay attention to the following
details.
Wipe off any oil and coolant spillage.
Install a NEW gasket.
Refer to PERIODIC MAINTENCE
PROCEDURES subsection and carry out
the following:
- Refill engine oil with recommended oil
and at the proper oil lever.
- Refill and bleed cooling system.
OIL PRESSURE SWITCH (OPS)

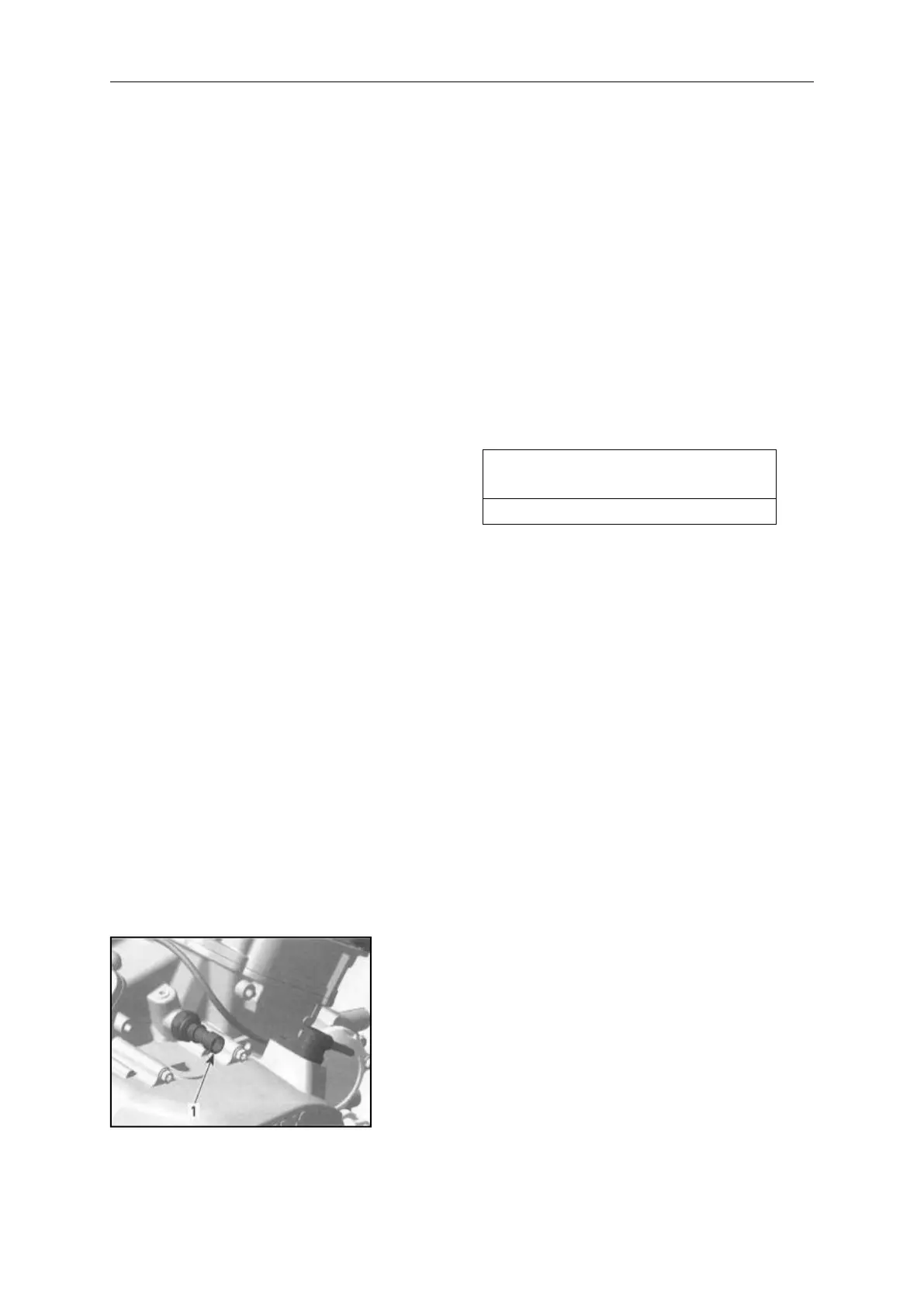

Oil Pressure Switch Location
The oil pressure switch is located at
engine MAG side above the magneto
cover.
1. Oil pressure switch
Oil Pressure Switch Access
Open the cargo box to reach the engine
Oil Pressure Switch Activation
The oil pressure switch activates when
the engine oil pressure is lower than the
operating pressure range.
To check the function of the oil pressure
switch, an oil pressure test has to be
performed. Refer to ENGINE OIL
PRESSURE in this subsection.
If the engine oil pressure is good perform
the oil pressure switch resistance test.
Testing the Oil Pressure Switch
Resistance Disconnect the connector
from the oil pressure switch.
Use a multimeter to check the resistance
between as shown.
