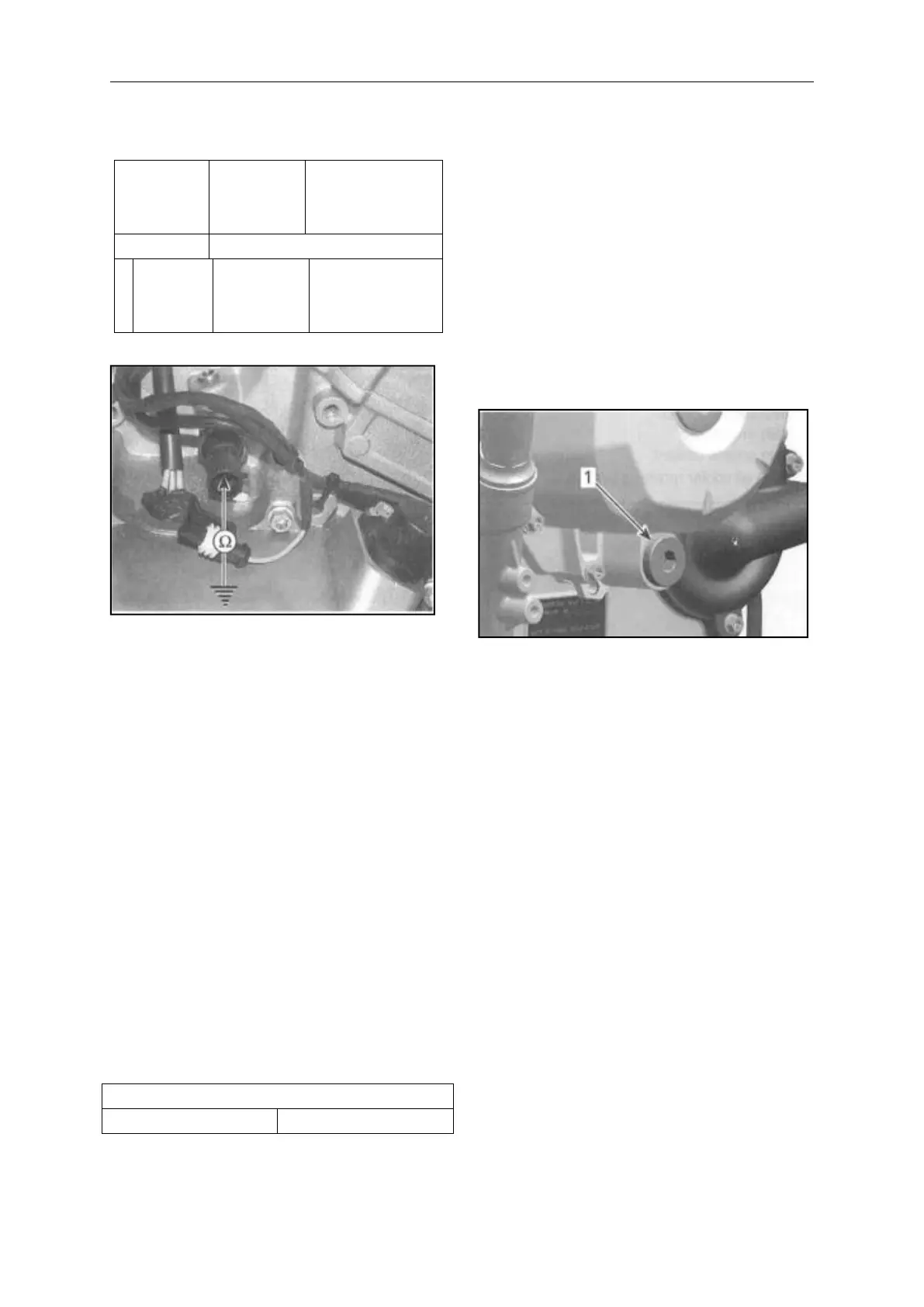

8.ENGINE
8-6
OPS
CONNECT
OR
ENGINE
NOT
RUNNING
ENGINE
RUNNING
PIN
RESISTANCE(Ω)
4
Engine
ground
Close to 0Ω
(normally
reaches
Infinite(open)
when pressure
30kPa±10kPa
If resistance values are incorrect, replace
the oil pressure switch.
If the values are correct, check wiring.
Removing the Oil Pressure Switch
Unplug the oil pressure switch connector.
Unscrew and remove oil pressure switch.
Installing the Oil Pressure Switch
Tighten oil pressure switch to specified
torque.
TIGHTENING TORQUE
Oil pressure switch
12.5N·m±1 N·m
ENGINE OIL PRESSURE
REGULATOR
Oil Pressure Regulator Location
The oil pressure regulator is located on
the engine magneto side(inside magneto
cover).
1. Engine oil ρressure regulator
NOTE: The oil pressure regulator system
works when the oil pressure exceeds
400kPa (58PSl).
Oil Pressure Regulator Access
Remove plug screw and pull oil perssure
regulator out.
Oil Pressure Regulator Removal
Remove plug screw and pull oil pressure
regulator out.
