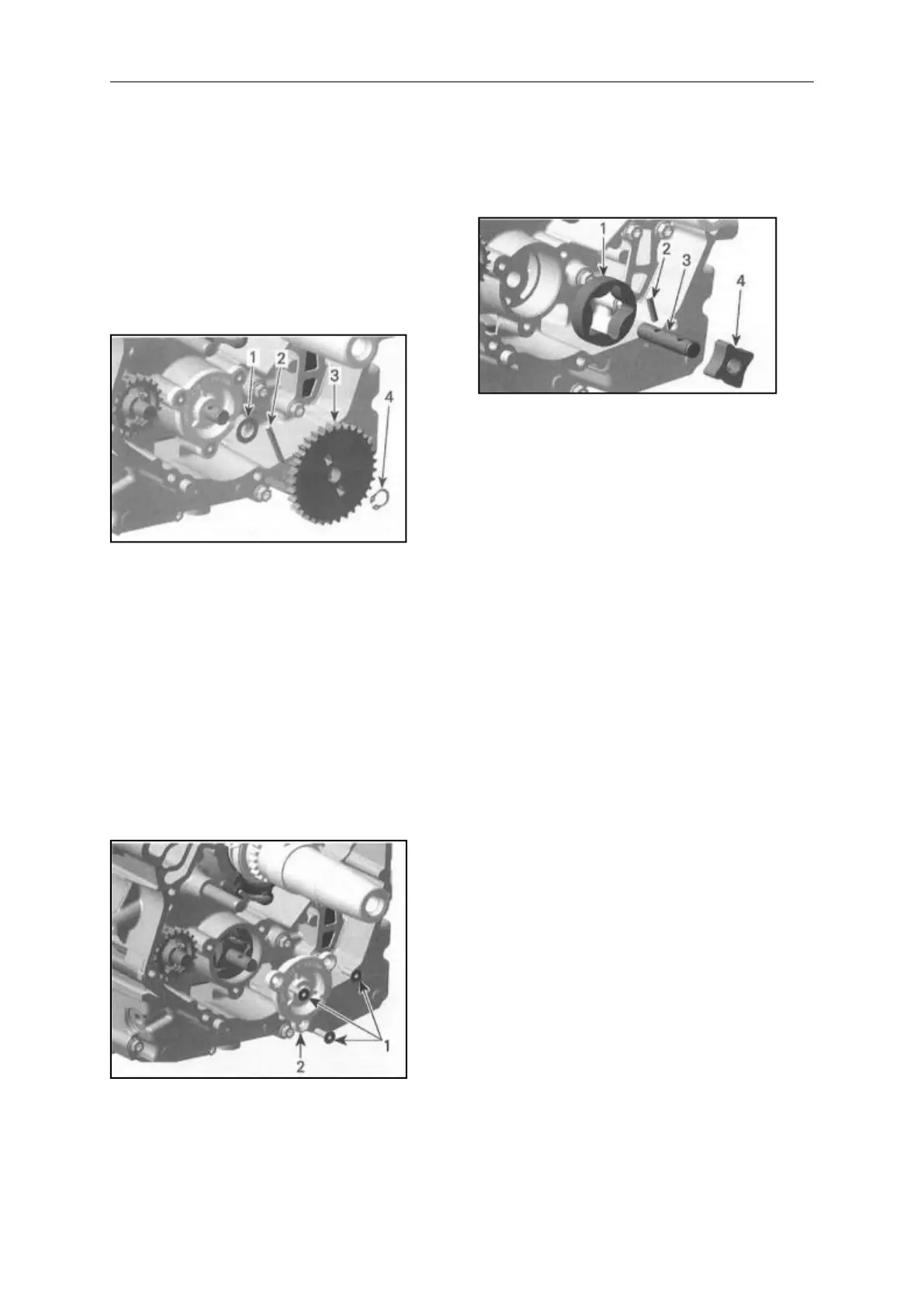

- Retaining ring
- Oil pump gear
- Needle pin
- Thrust washer.
1.Thrust washer
2. Needle pin
3.Oil pump gear
4. Retaining ring
Remove oil pump cover screws and
pull oil pump cover out..
1. Retaining screws
2. Oil pump cover
3. Remove oil pump shaft with needle pin
and inner rotor.
4. Remove outer rotor.
1. Outer rotor
2. Needle pin
3. Oil pump shaft
4. Inner rotor
Inspecting the Oil Pump
Inspect oil pump and oil pump cover
bore for marks, scratches or other
damages. Check for scratches in
crankcase between outer rotor and
oil pump bore. lf so, replace damaged
parts.
Check oil pump cover for damages and
for surface straightness with a
straightedge.
To Next Page
