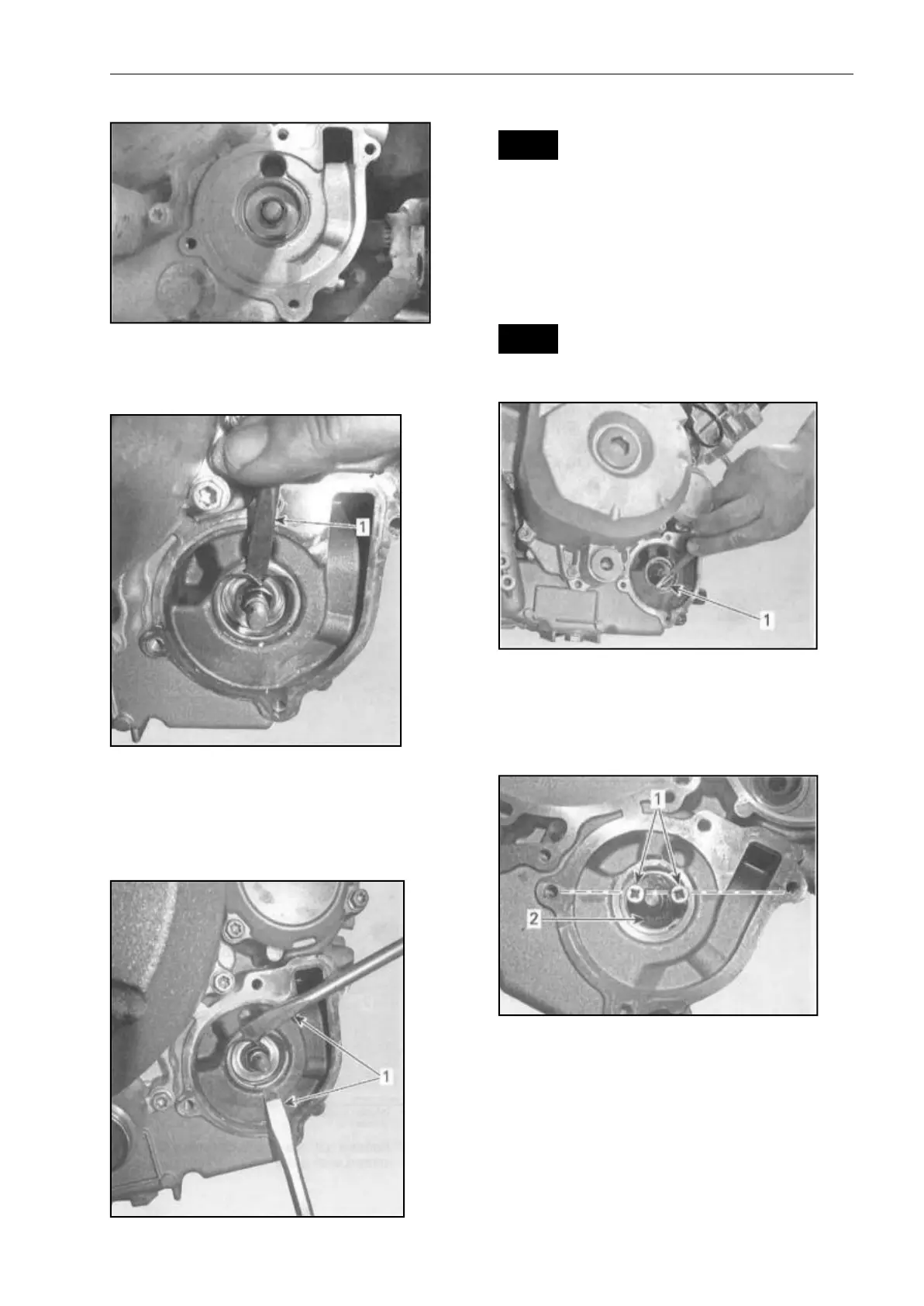

7. Inner part of rotary seal
TYPICAL – INNER PARTS OF ROTARY SEAL REMOVED
3. Carefully bend down the outer part of
rotary seal lip using a smal1 chisel.
1. Small chisel
4. Use 2 screwdrivers and carefully remove
the outer part of the rotary seal.
1. Screwdrivers
NOTICE Be careful not to damage the
crankcase while removing outer part of the
rotary seal.
Thoroughly remove carefully sealing
residue and burr of rotary seal using a
scraper.
NOTICE Be careful not to damage water
pump shaft.
1. Scraper
Install 2 wooden screws in the seal
1. Wooden screws
2. Oil seal
7. Remove oil seal from crankcase by
pulling screws with pliers.
