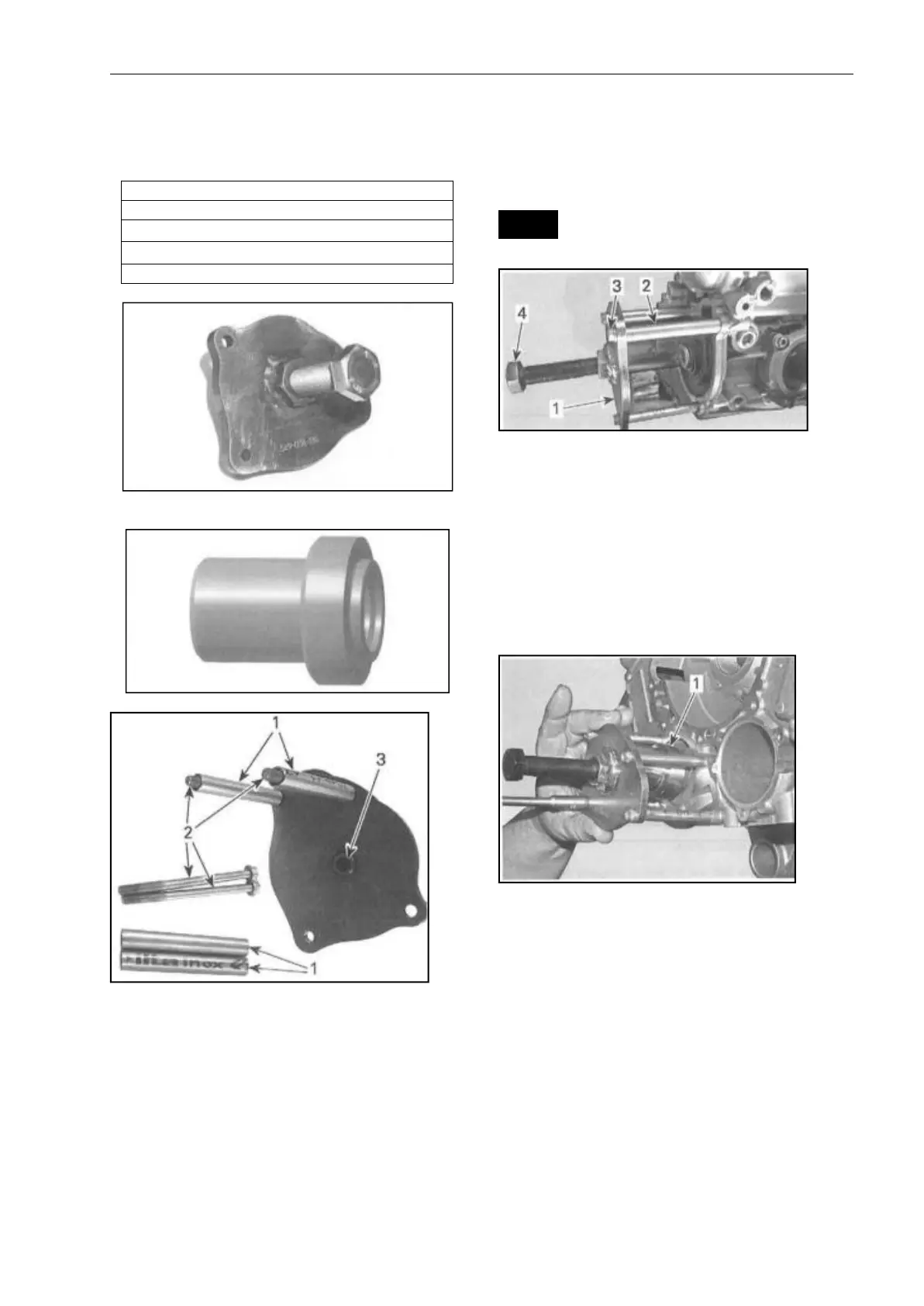

ROTARY SEAL PUSHER PLATE
SEAL PUSHER
ROTARY SEAL PUSHER PLATE ASSEMBLY
1. 4×tubes (70mm(2.75in) length)
2. 4×screws M6×85
3. Plane surface on pus1ler bolt
NOTE: Make sure pusher bolt has a plane
surface.
12.1 Apply a little grease at the end of tool
pusher bolt.
12.2 Ensure that pusher bolt is completely
unscrewed.
12.3 Instal1 rotary seal pusher plate on
crankcase by tightening M6 screws.
NOTICE Do not use pneumatic or electric
tools for tightening screws.
ROTARY SEAL PUSHER PLATE INSTALLTION
1. Rotary seal pusher plate
2. Tube (70mm (2.75in)length)
3. M6×85 screw
4. Pusher bolt
12.4 Install seal pusher between rotary
seal pusher plate and water pump shaft.
SEAL PUSHER INSTALLTION
1. Seal pus1lerai1gneol with pusher bolt
12.5 lighten the pusher bolt by hand until it
stops against the sea1 pusher.
13. Carefully thread the pusher bolt1-1/2
turns.
14. Ensure that the rotary seal is going
straight into crankcase.
15. Remove rotary seal installation tools
from crankcase.
Repeat the steps9to15 until rotary sea1 is
