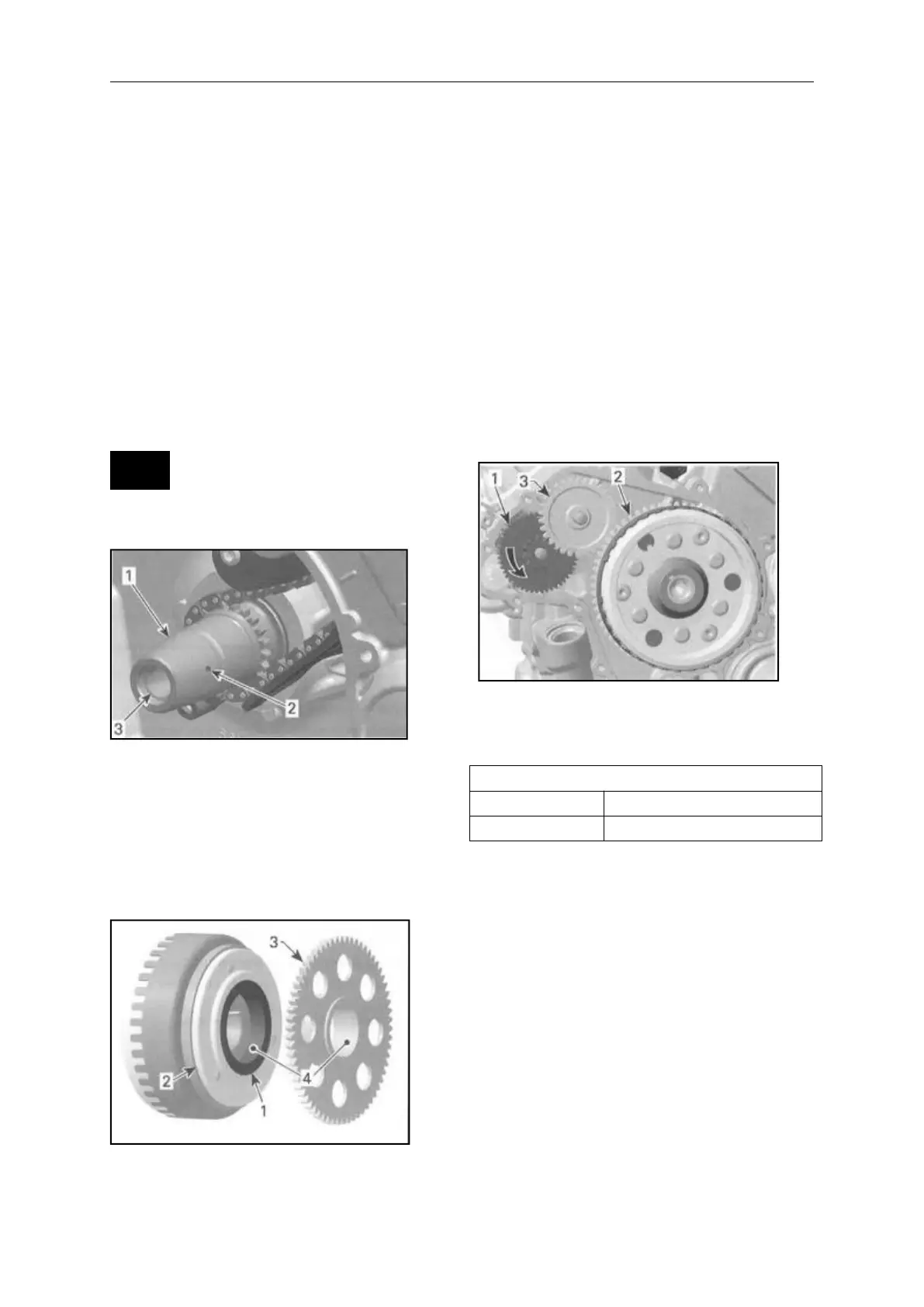

Use PULLEY FLANGE CLEANER to clean
following:
- Crank shaft taper
- Oil passage in crank shaft taper
- Thread in crankshaft
- Rotor taper
- Oil bore in rotor.
NOTICE Taper on crankshaft and rotor
must be free of grease.
1. Crankshaft (MAG side)
2. Oil passage
3. Threads
Oil sprag clutch and instal1 sprag clutch
gear.
1. Sprag clutch
2. Sprag clutch housing
3. Sprag clutch gear
4. Apply engine oil here
Slide rotor onto crankshaft. The woodruff
key and the keyway must be aligned.
Rotate starter double gear
counterclockwise to align intermediate
gear teeth with sprag clutch gear.
1. Starter double gear
2. Sprag clutch gear
3. Intermediate gear
ROTOR RETAINING SCREW
Service product
德邦 2569
Tightening torque
150N·m±10N·m
SPRAG CLUTCH
Sprag Clutch Removal
Remove MAGENTO CIVER. See
procedure in this subsection.
Heat sprag clutch housing screws in
order to break the Loctite.
Loosen screws.
