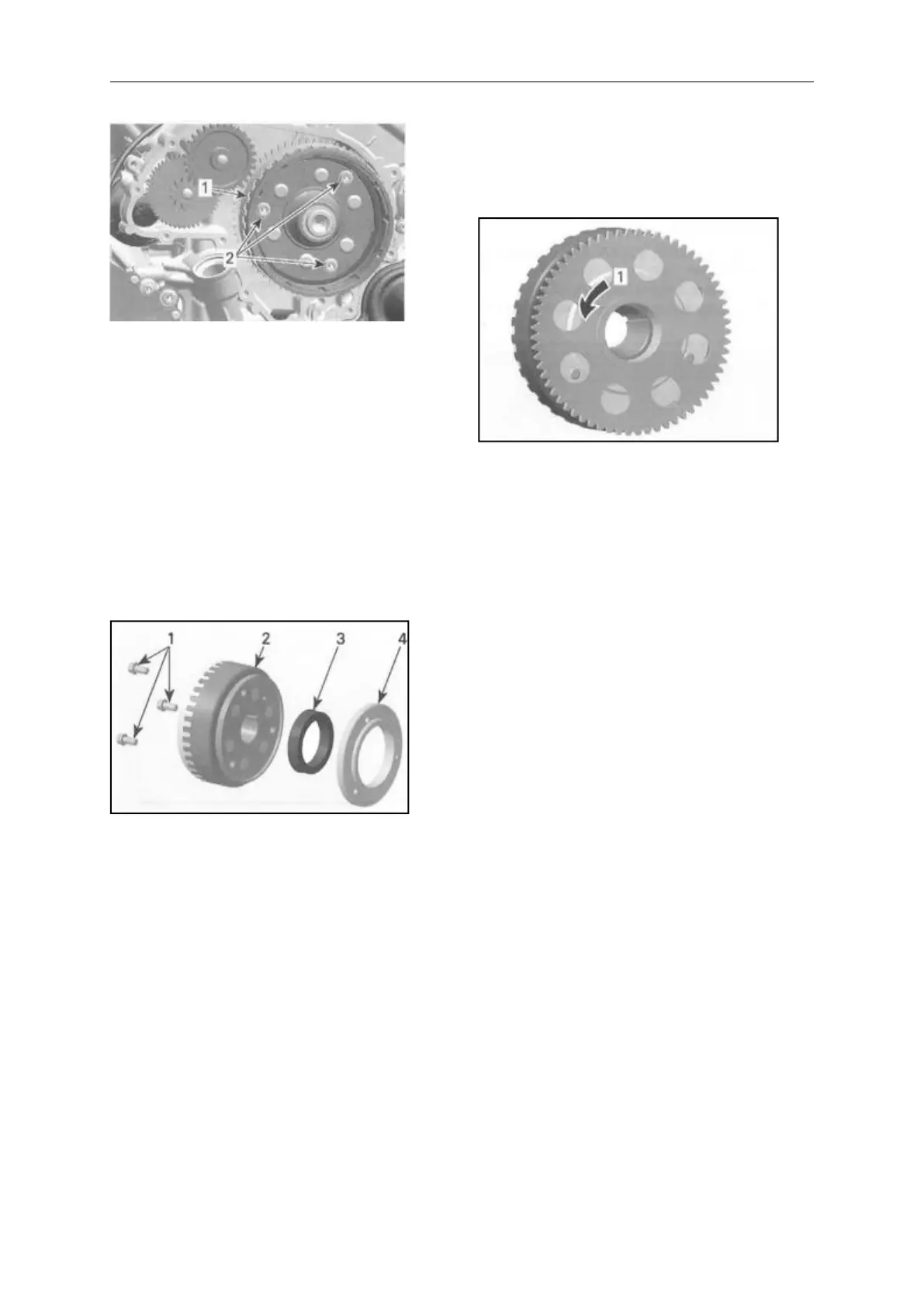

1. Rotor
2. Sprag clutch housing screws
Remove rotor,refer to ROTOR in this
subsection.
Remove sprag clutch gear.
Remove sprag clutch housing screws and
sprag clutch housing.
1. Sprag clutch housing screws
2. Rotor
3. Sprag cluth
4. Sprag clutch housing
Inspecting the Sprag Clutch
Inspect sprag clutch and sprag clutch
housing for wear and damage.
Also check the collar of the sprag clutch
gear.
Rotate sprag clutch gear in sprag clutch.
NOTE: Sprag clutch must lock in
counterclockwise direction.
SPRAG CLUTCH FUNCTION TEST
1. Lock
NOTE: Sprag clutch, housing and gear
must be replaced at the same time, if
damaged.
Installating the Sprag Clutch
For installation, reverse the removal
procedure.
Pay attention to the following details.
Use PULLEY FLANGE CLEANER to clean
following:
-Threads in sparg clutch housing
-Threads of sparg clutch housing screws.
Apply 2569 on threads of sprag clutch
housing screws.
Install screws but do not torque yet.
