ODES WORKCROSS UTV650 - Page 131

8.ENGINE
8-30

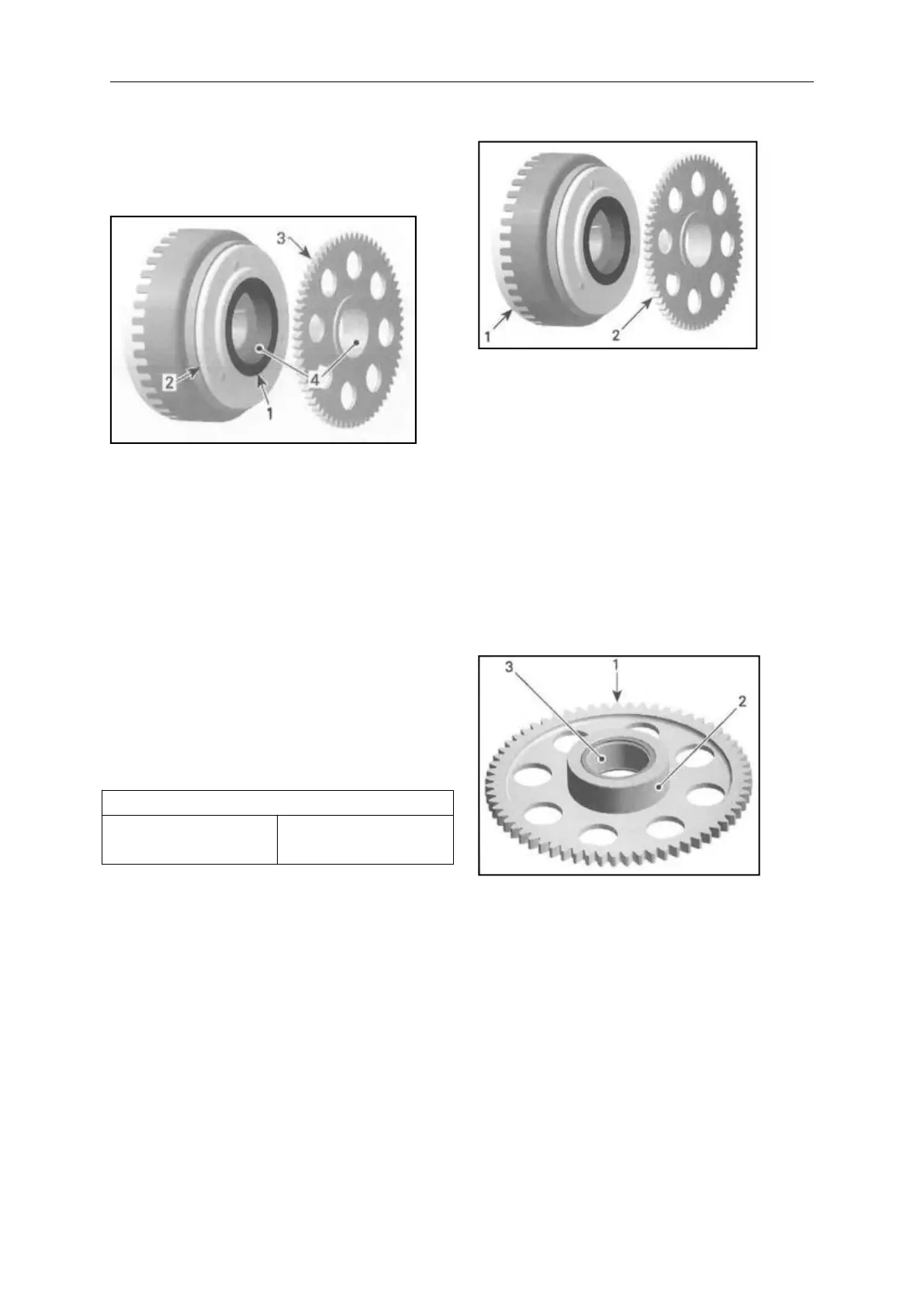

Apply engine oil on sprag clutch and
sprag clutch gear needle bearing.
1. Sprag clutch
2. Sprag clutch housing
3. Sprag clutch gear
4. Apply engine oil here
Insta11 rotor, refer to ROTOR in this
subsection.
Tighten sprag clutch housing screws to
specification.
TIGHTENING TORQUE
Sprag clutch housing
screws
30N·m±2N·m
SPRAG CLUTCH GEAR
Sprag Clutch Gear Removal
Remove ROTOR. See procedure in this
subsection.
Pul1 sprag clutch gear out of the rotor.
1. Rotor
2. Sprag clutch gear
Inspecting the Sprag Clutch Gear
Inspect gear, especially teeth and sprag
clutch Collar, for wear and other damage.
Check needle bearing condition.
Replace sprag clutch gear if necessary.
INSPECT
1. Teeth
2. Collar
3. Needle bearing
Installating the Sprag Clutch Gear
The installation is the reverse of the
removal Procedure.
NOTE: Apply engine oil on needle
