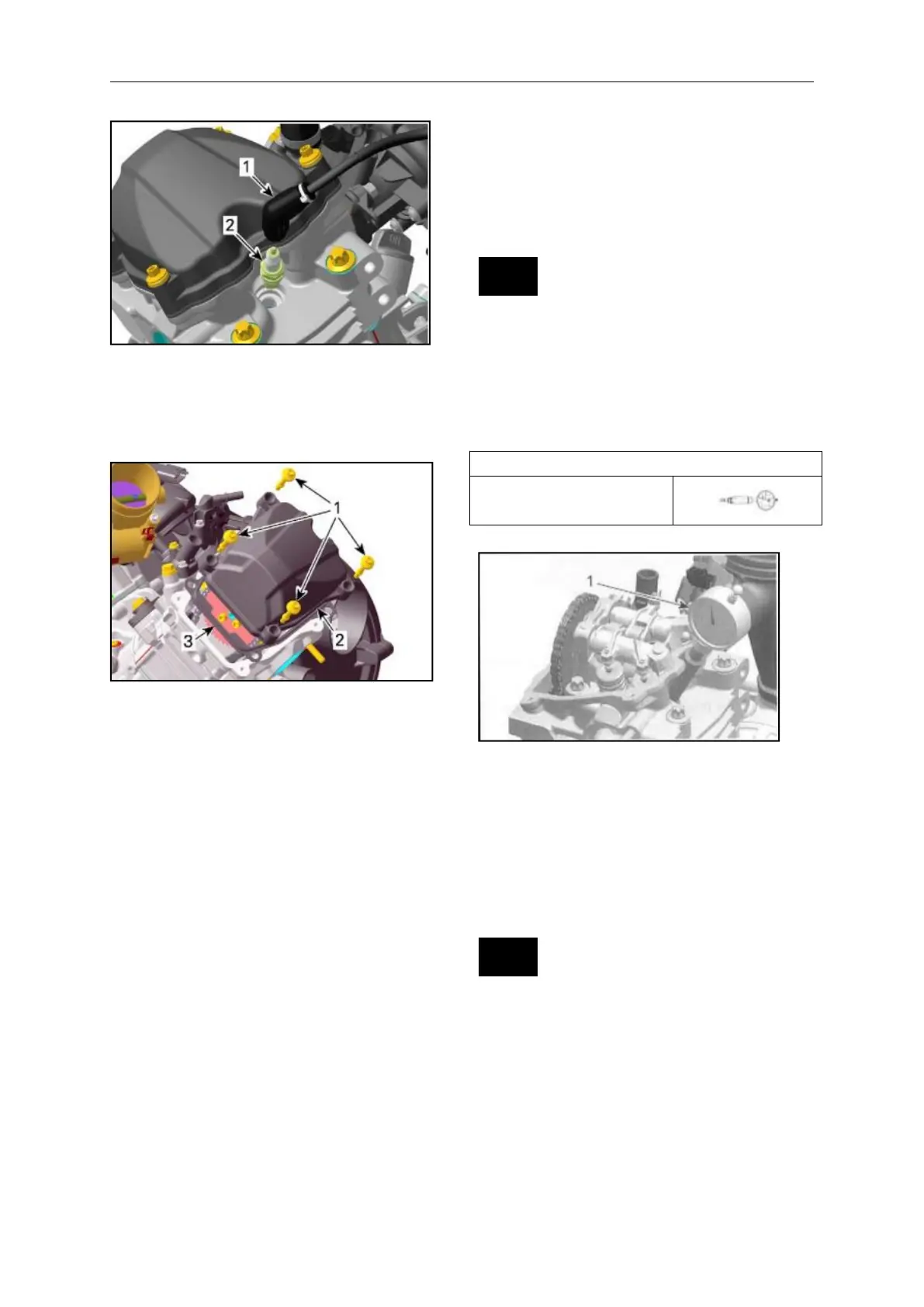

1. Spark plug cable
2. Spark plug
Remove valve cover.
1. Valve cover screws
2. Valve cover
3.Gasket
Rotate crankshaft until piston is at
ignition TDC.
To turn crankshaft, there are two possible
procedures.
First Procedure
Turn the drive pulley.
Second Procedure
1. Remove plug screw with O-ring from
magneto cover.
2. Use a14 mm Allen key and turn
crankshaft.
NOTICE Turn only clockwise to avoid
loosening of magneto flywheel Allen
screw. Set the piston to precisely ignition
TDC.
1. Dial gauge
NOTE: If a dial gauge is not available , use
a screw driver or another similarly
suitable tool.
NOTICE Do not scratch or damage
piston/ cylinder surface.
NOTE: At ignition TDC the marks on the
camshaft timing gear have to be parallel
to cylinder head base as per following
To Next Page
