illustration.

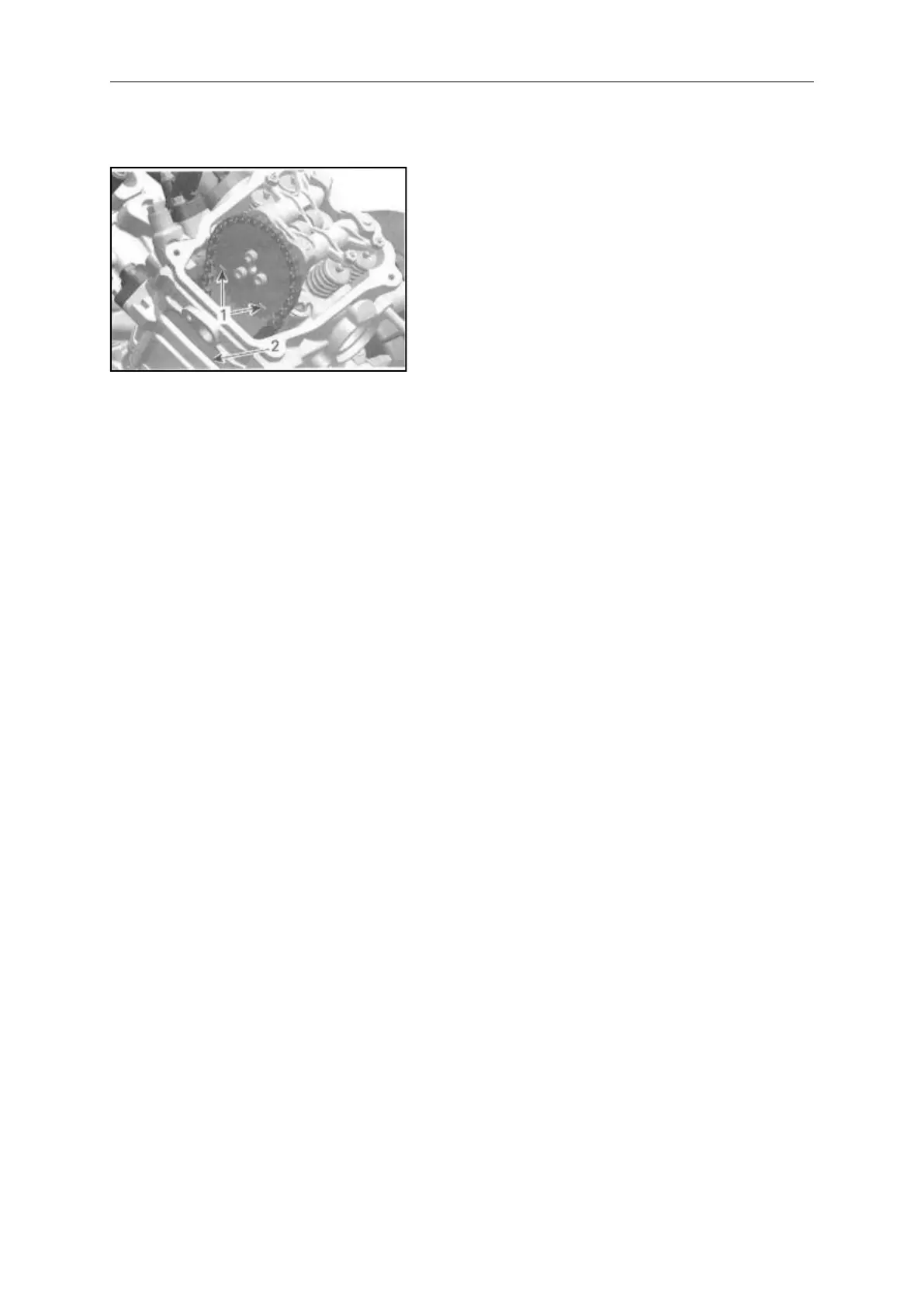

1. Marks on camshaft timing gear
2. Cylinder 1leaol base
Diagnosis
Listen for air leaks .
_ Air escaping in intake port/throttle
body means leaking intake valve(s).
_ Air escaping in exhaust port means
leaking exhaust valve(s).
_ Air bubbles in the coolant (radiator)
means leaking cylinder head gasket.
_ Air/coolant escaping from
cylinder/head means damaged gasket(s)
and/or loosened screws.
_ Air escaping into crankcase area means
excessively worn cylinder and/or broken
piston rings.
_ Air/oil escaping from crankcase means
damaged gasket and/or loosened
screws(refer to BOTTOM END
subsection).
NOTE: For all the checkpoints mentioned
above, see the appropriate engine
section to diagnose and repair the
engine.
Reassembly
Reverse the preparation procedure.
Ensure to respect torque values and use
of appropriate Products / lubricants.
Refer to exploded views in other
subsections of this manual as required.
PROCEDURES
VALVE COVER
Valve Cover Access
Cylinder 1(front)
Remove the engine service cover located
on the rear upper bulkhead.
Cylinder 2(rear)
Simply open the cargo box.
Removing the Valve Cover
Remove:
To Next Page
