- valve cover screws
- valve cover.
- gasket

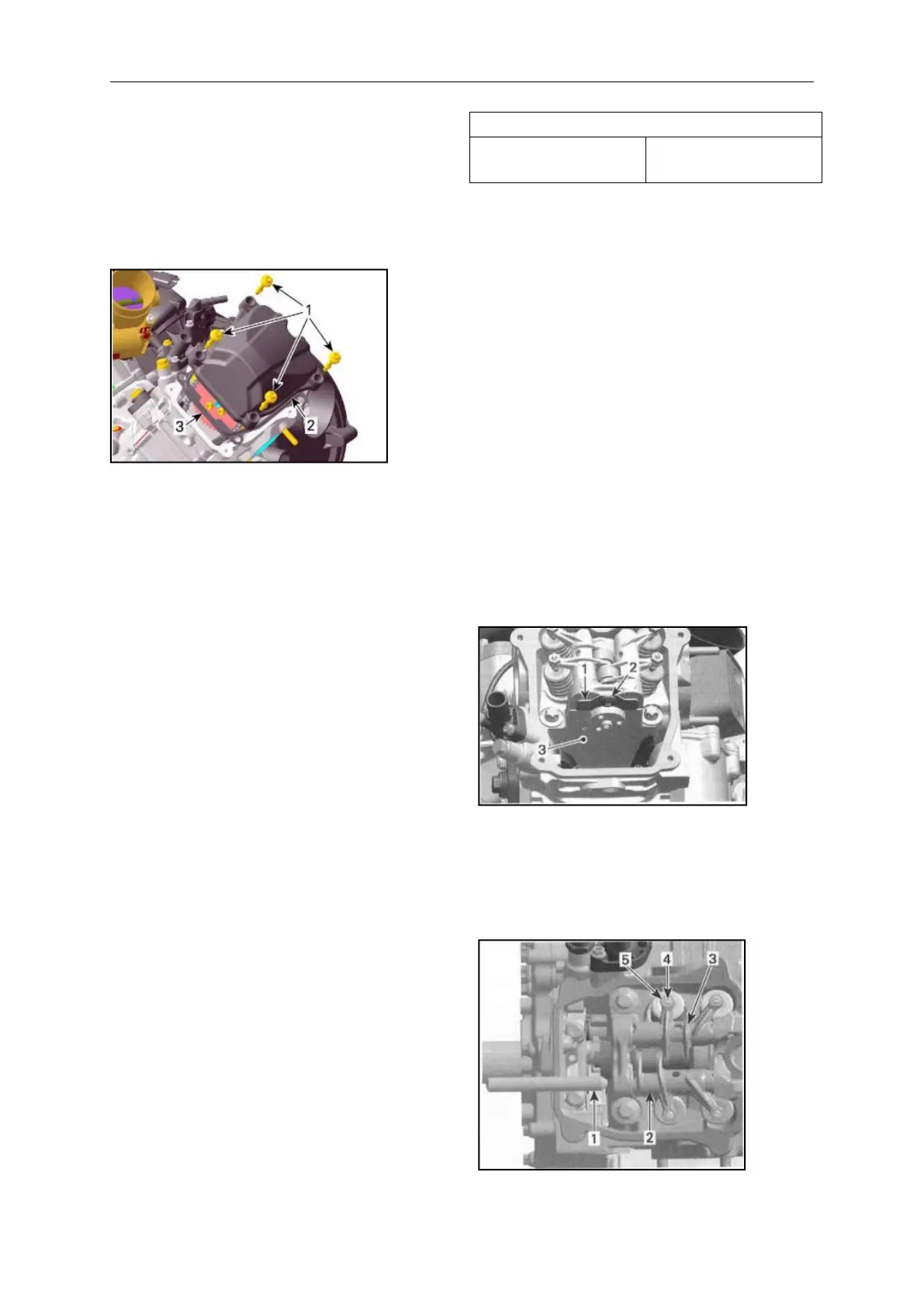

1. Valve cover screws
2. Valve cover
3. Gasket
Repeat the procedure for the other valve
cover if required.
Inspecting the Valve Cover
Check the gasket on the valve cover if it is
brittle, cracked or hard. If so, replace the
gasket.
Installating the Valve Cover
For installation, reverse the removal
procedure.
Tighten valve cover retaining screws to
specified torque in a criss -cross
sequence.
TIGHTENING TORQUE
Valve cover screws
7N·m±0.8N·m
ROCKER ARM
Rocker Arm Removal
Remove valve cover.
Refer to TIMING CHAIN subsection and
remove the following parts:
- Timing chain tensioner
- Camshaft timing gear.
Remove pan head screw and camshaft
retaining plate.
1. Camshaft retaining plate
2. Pan head screw
3. Cylinder head
Remove rocker arm shafts
