8.ENGINE
8-45

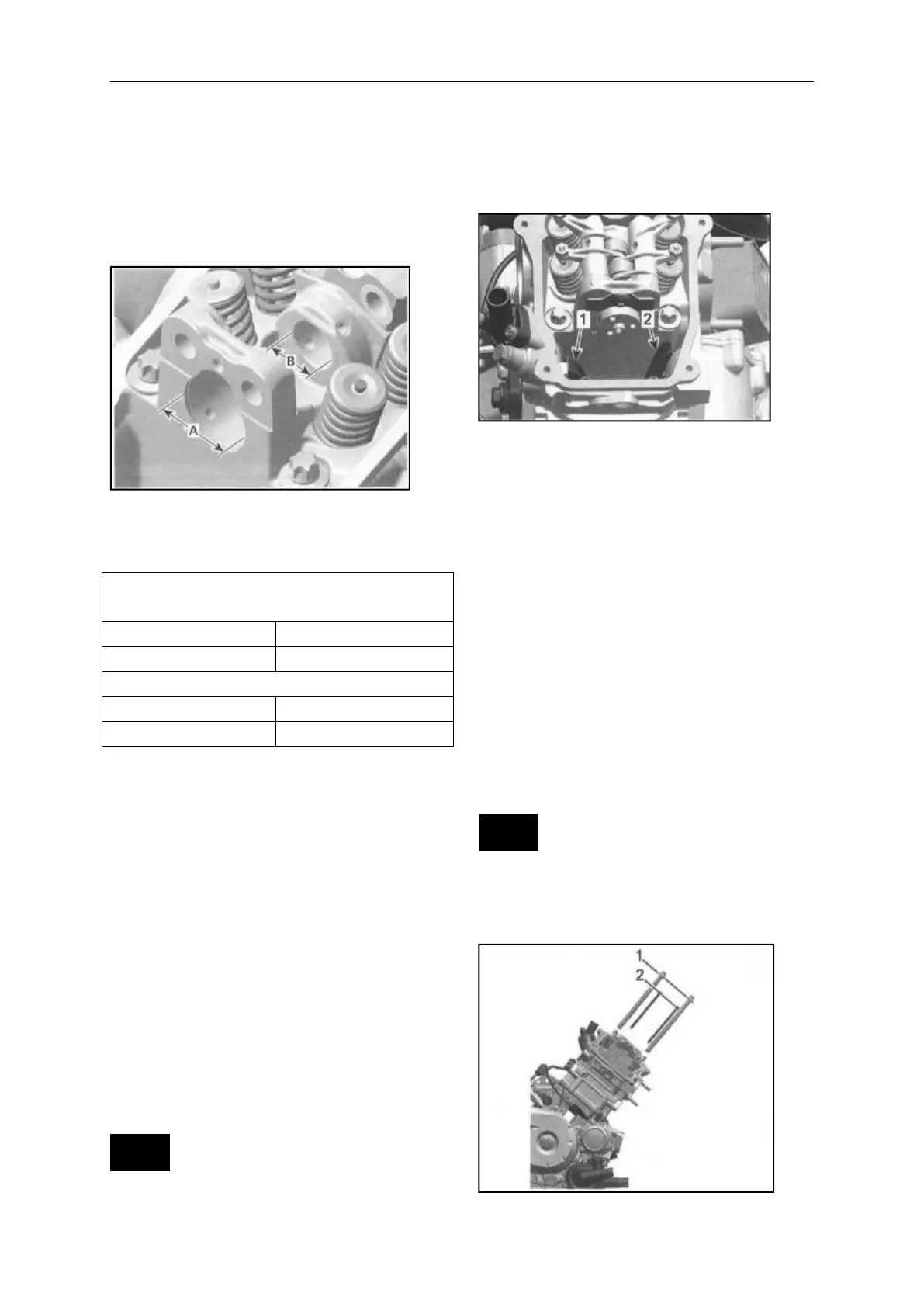

Camshaft Bearing
Measure camshaft bearing in cylinder
head.
A. Cam shaft bearing (timing chain side)
B. Cam shaft bearing (spark plug side)
CAMSHAFT BEARING
(TIMING CHAIN SIDE)
NEW
35.000 mm to35.025mm
SERVICE LIMIT
35.040 mm
CAMSHAFT BEARING (SPARK PLUG SIDE)
NEW
22.000mm to22.021 mm
SERVICE LIMIT
22.040 mm
Cylinder Head Installation
NOTE: Never invert front and rear
cylinder heads. 0n the800R, cylinder
heads are not identica1.
For installation, reverse the removal
procedure. Pay attention to the
following details.
Ensure dowel pins are in place.
NOTICE Timing chain guide (fixed) has
to be fixed between cylinder and
cylinder head.
1. Timing chain guide (tensioner side)
mounted in crankcase
2. Timing chain guide (fixed) between
cylinder ,and cylinder head
Install a NEW cylinder head gasket.
Install cylinder head screws in correct
position.
NOTICE Cylinder head screws have
different sizes and lengths.
