8.ENGINE
8-46
1. Location no. 1
2. Location no. 2
CYLINDER HEAD SCREW IDENTIFICATION
Location no. 1
M10×159
Location no. 2
M6×105
Tighten M10 cylinder head screws
FIRST as per following
specifications.
NOTE:Always perform one step on
all M10 cylinder hend screws before
going to the next step.

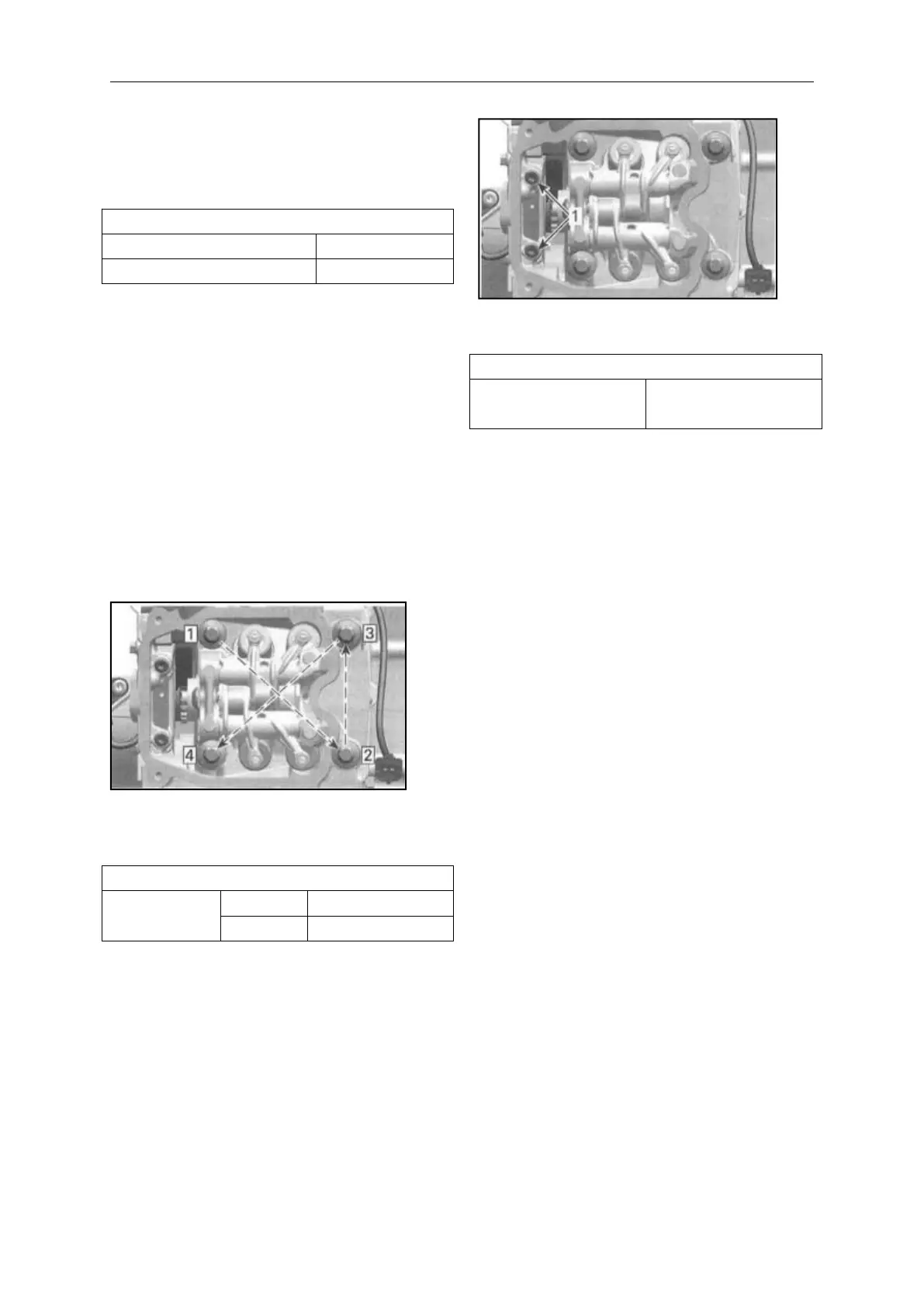

TIGHTENCE SEQUENCE-M10 CYLINDER
HEAD SCREWS
TIGHTENING TORQUE
M10 cylinder
hend screws
Step A
20N·m±1N·m
Step B
180°+/5°
Tighten M6 cylinder head screws as
per following specification.
1. M6 Screws
TIGHTENING TORQUE
M6 cylinder head
screws
10N·m±1N·m
Check timing chain guide (tensioner
side) for movement.
On cylinder1, install the plenum
bracket, refer to INTAKE
MANIFOLD subsection.
VALVE SPRINGS
Valve Spring Removal
Refer to following procedures in this
subsection to remove:
- CAMSHAFT
- CYLINDER
