NOTE: Align tube of camshaft
adjustment tool properly with machined
radius on cylinder head.

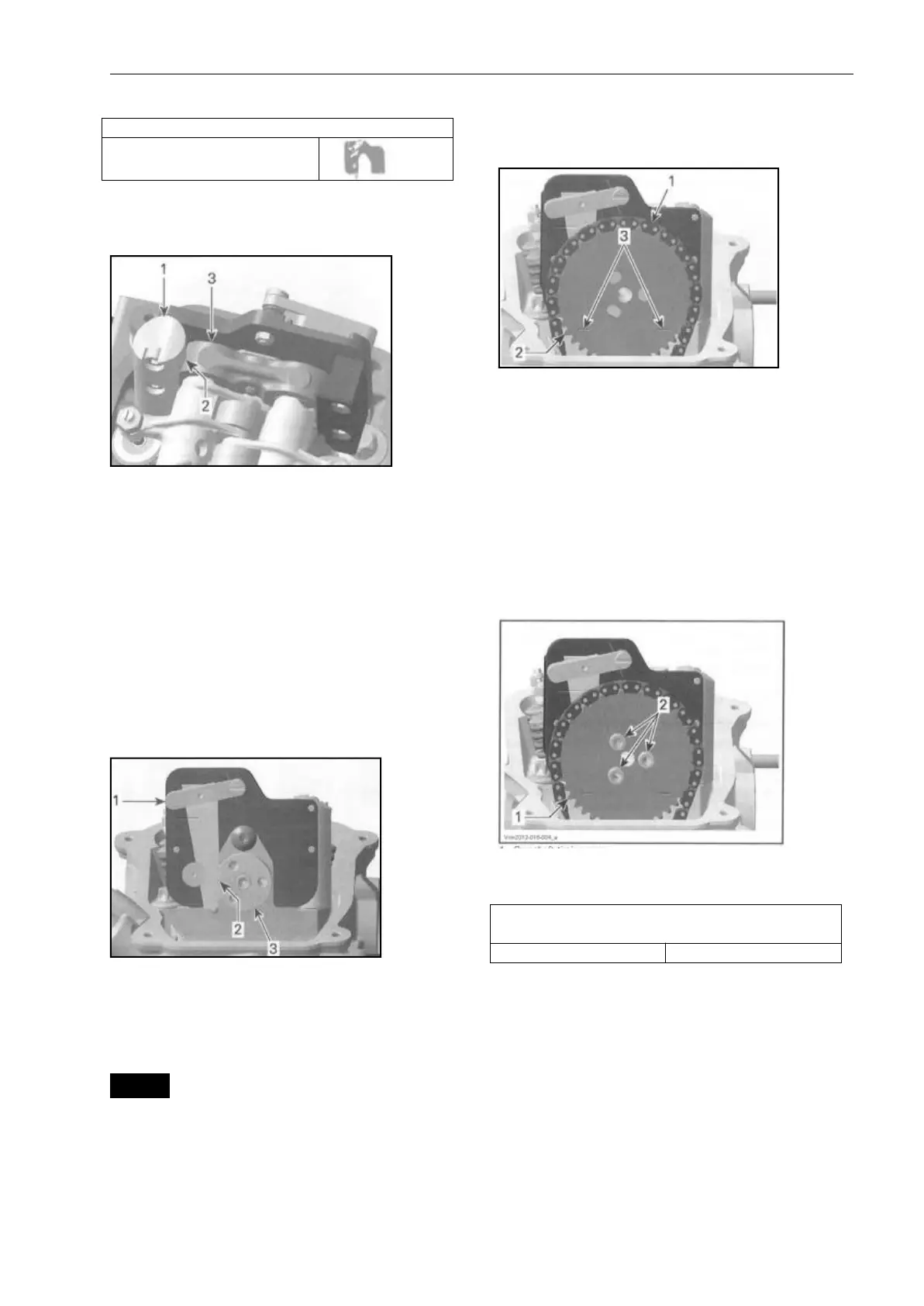

CAMSHAFT TIMING TOOL INSTALLED
1. Tube (camshaft adjustment tool)
2. Machined radius (camshaft
adjustment tool)
3. Cylinder head
4. Set camshaft to TDC ignition position
by aligning the camshaft flange flat spot
with the tool lever.
NOTE: In addition, to ensure proper
camshaft timing, press camshaft
adjustment tool lever downwards.
PRESS TOOL LEVER DOWN
1. Lever
2. Flat spot
3. Camshaft
NOTICE Crankshaft and camshaft must be
locked at TDC ignition position to place
camshaft timing gear and timing chain
in the proper position.
5. Place camshaft timing gear along with
the timing chain on the camshaft.
NOTE: The printed marks on the
camshaft timing gear must be parallel to
the cylinder head base.
1. Timing chain
2. Camshaft timing gear
3. Printed marks on camshaft timing gear
6. Install and adjust timing chain
tensioner , refer to TIMING CHAIN
TENSIONERS in this subsection.
7. Install and tighten camshaft timing
gear retaining screws to specified
torque.
1. Camshaft timing gear
2. Timing gear retaining screws
8. Remove the CAMSHAFTTIMING
TOOL
Camshaft Timing
NOTE: If a piston (of cylinder1 or2) is
set to TDC ignition, the camshaft timing
gear of the opposite cylinder must be in
the following position.
