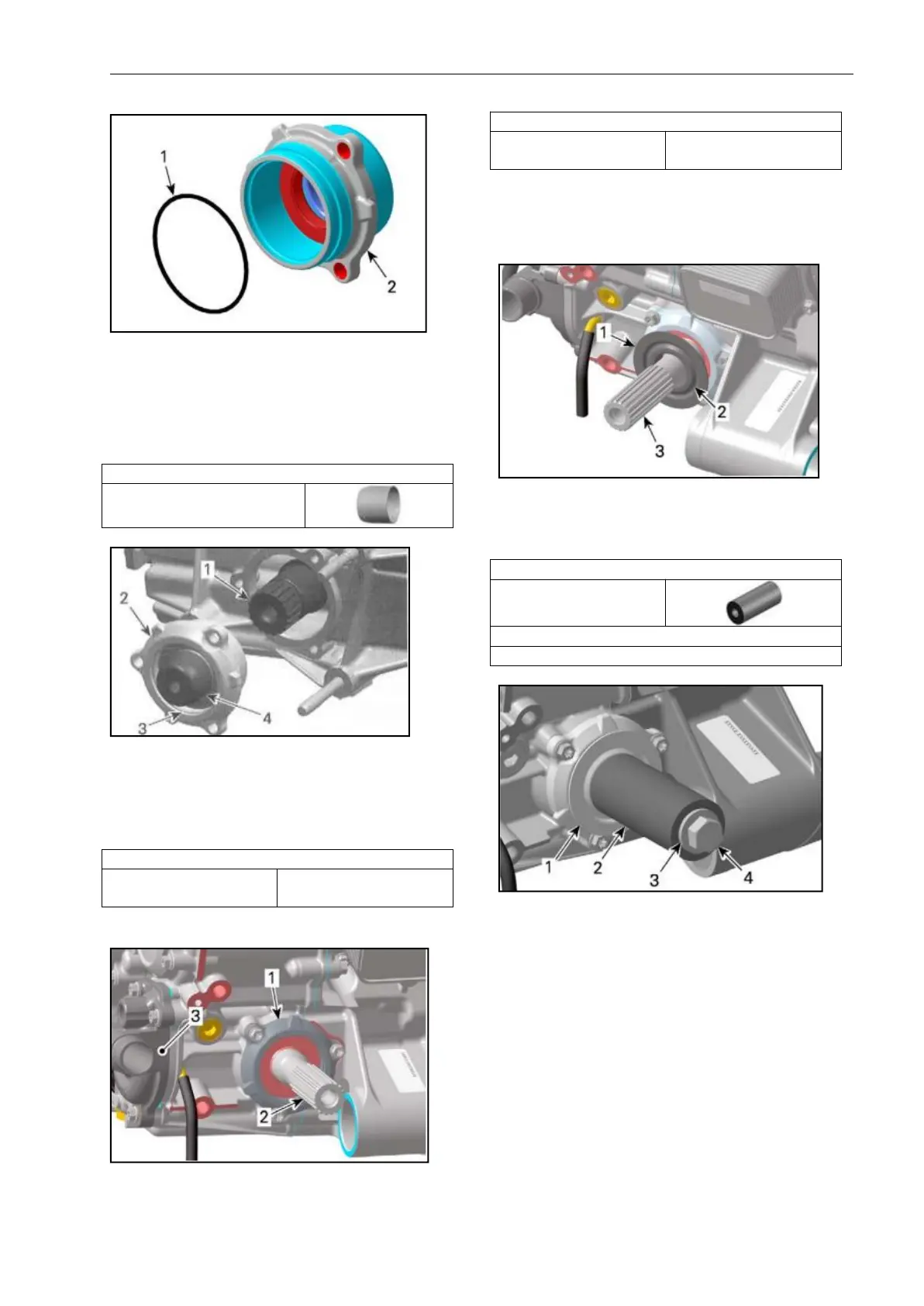

1. O-ring
2. Bearing cover
For bearing cover installation on
gearbox side, protect the oil seal to
avoid damaging the sealing lip.
REQUIED
ERIVE SHAFT OIL SEAL
1. Drive shaft
2. Bearing cover gearbox side
3. O-ing
4. Protection sleeve
TIGHTENING TORQUE
Rear bearing cover
screws
10N·m 士 1 N·m
Installating the Front Bearing Cover
1. Bearing cover
2. Drive shaft
3. Water pump cover
TIGHTENING TORQUE
Front bearing cover
screws
10N·m 士 1 N·m
Place NEW cover washer on drive shaft.
NOTE:Groove must face outwards the
engine
1. Cover washer
2. Groove
3. Drive shaft
Press cover washer on drive shaft
REQUIED YOOL
COVER WASHER
INSTALLER
Flat washer
M12×1.25×25hexagonal screw
1. Cover washer
2. Cover washer installer
3. Flat washer
4. M12×1.25×25 hexagonal screw
Installating the Engine Drive Shaft
Finally check for axial play of the drive
shaft
Front Oil Seal Replacement
(Engine Drive Shaft)
Remove front propeller shaft.Refer to
FRONT DRIVE subsection
2. Remove the front bearing cover, refer
to ENGINE DRIVE SHAFT
