REMOVAL / INSTALLATION in this
subsection.

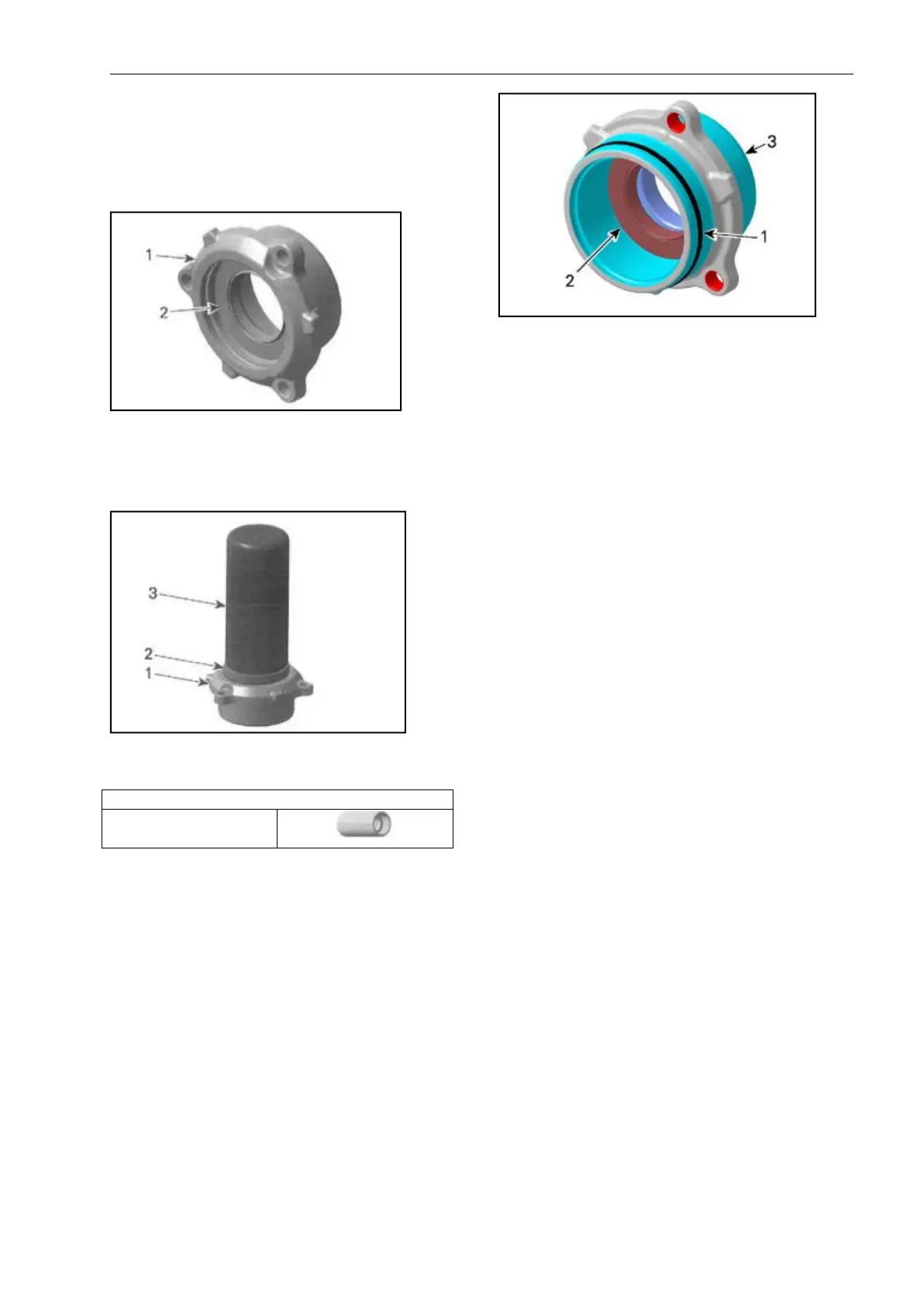

3. Remove drive shaft seal from bearing
cover.
1. Bearing cover
2. Oil seal
4. Install drive shaft oil seal.
1. Bearing cover
2. Oil seal
3. Oil seal installer
REQUIED TOOL
ERIVE SHAFT OIL
SEAL INSTALLER
5. Reinstall remaining parts in the reverse
order of removal.
REAR OIL SEAL
(ENGINE DRIVE SHAFT)
Rear Oil Seal Replacement
(Engine Drive Shaft)
1. Remove rear bearing cover , refer to
ENGINE DRIVE SHAFT REMOVAL /
INSTALLATION in this subsection.
2. Remove drive shaft seal from bearing
cover.
1. Bearing cover
2. O-ring
3. Bearing cover
