4. Reinstall remaining parts in the reverse
order of removal.
PTO COVER OIL SEAL
To replace oil seal it is not necessary to
remove engine from vehicle.
Removing the PTO Oil Seal
Refer to CONTINUOUSLY VARLABLE
TRAINSMISSION (CVT) subsection to
remove the following parts:
- CVT cover
- Drive pulley
- Driven pulley
- CVT air guide.

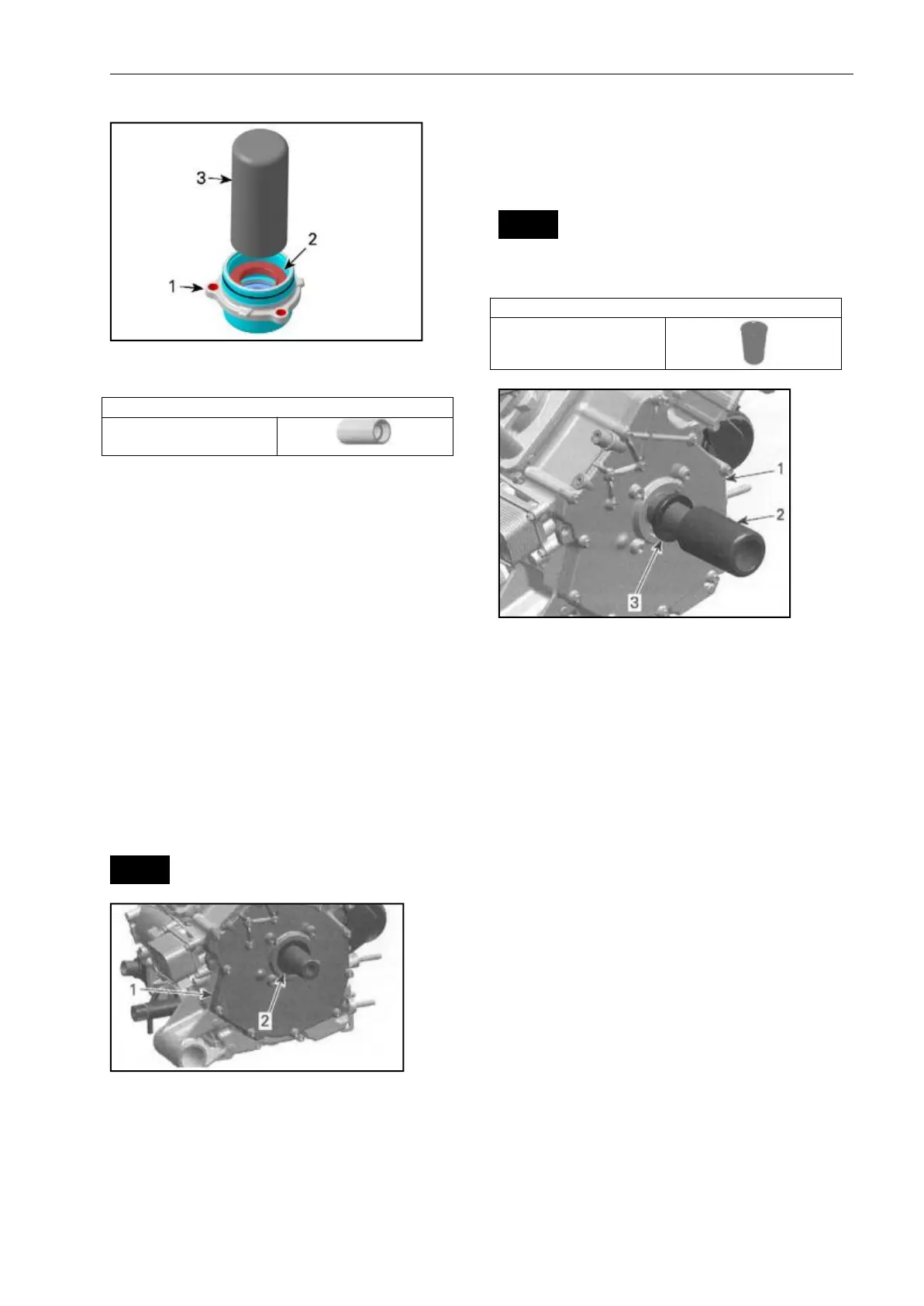

Remove oil seal with a small flat screwdriver.
NOTICE Avoid scoring surfaces with tool.
1. PTO cover
2. Oil seal
Inspecting the PTO Oil Seal
Check oil seal running surface of crankshaft
PTO side for grooves. Replace if necessary.
Installating the PTO Oil Seal
The installation is the reverse of the removal
procedure.
Pay attention to the following details.
NOTICE Oil seal must be installed with
sealing lip toward the engine.
Push oil seal in place.
1. PTO cover
2. Oil seal installer
3. Oil seal
PTO COVER
Removing the PTO Cover
Refer to CONTINUOUSLY VARLABLE
TRAINSMISSION (CVT) subsection to
remove the following parts:
- CVT cover
- Drive pulley
- Driven pulley
- CVT air guide.
Disconnect vent hose.
Remove PTO cover screws and pul1 PTO
cover.
To Next Page
