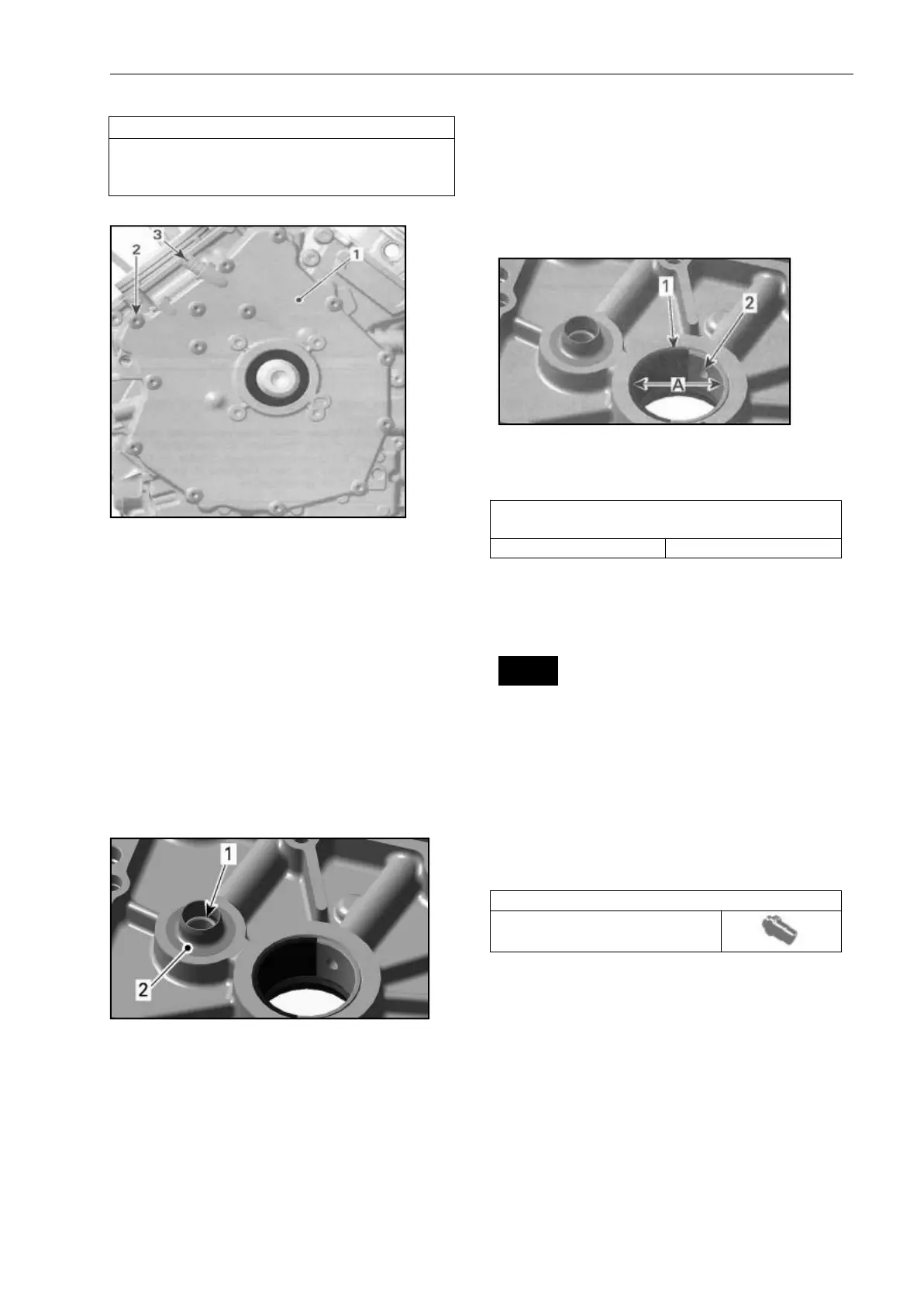

1. PTO cover
2. PTO cover screws
3. Vent hose nipple
Inspecting the PTO Cover
Check the PTO cover for cracks or other
damage. Replace PTO cover if damaged.
Clean oil breather bore in PTO cover from
contaminations with part cleaner then use
pressurized air to dry it.
Check surface of sealing sleeve for wear or
other damages. Replace PTO cover if
damaged.
1. Oil breather bore
2. Surface of sealing sleeve
Check plain bearings for scorings or other
damages.
NOTE: Measure plain bearing inside
diameter
(PTO cover) and compare to crankshaft
journal
Diameter (PTO cover bearing). Refer to
CRANK SHAFT in this section. Replace if
the measurement is out of specification.
1. Plain bearing
2. Oil bore
A. Measure plain bearing inside diameter
PLAIN BEARING INSIDE DIAMETER
(PTO COVER)
SERVICE LIMIT
34.120 mm
Plain Bearing Replacement (PTO
Cover)
Removing the Plain Bearing
NOTICE Unless otherwise instructed, never
use a hammer to install plain bearings. Use
a press only.
Carefu1ly remove the PT0 oil seal with a
screwdriver, without damaging the PT0
cover.
Press out the plain bearings from the
outside towards the inside.
REQUIED TOOL
PLAIN BEARING
REMOVER / UNSTALLER
The PTO cover has to be supported from
below with suitable support with straight
surface, in order to prevent damage of the
sealing surface.
▲WARNING
Always wear skin and eye protection. Chemicals
can cause skin rash, skin burns and severe eye
injury.
