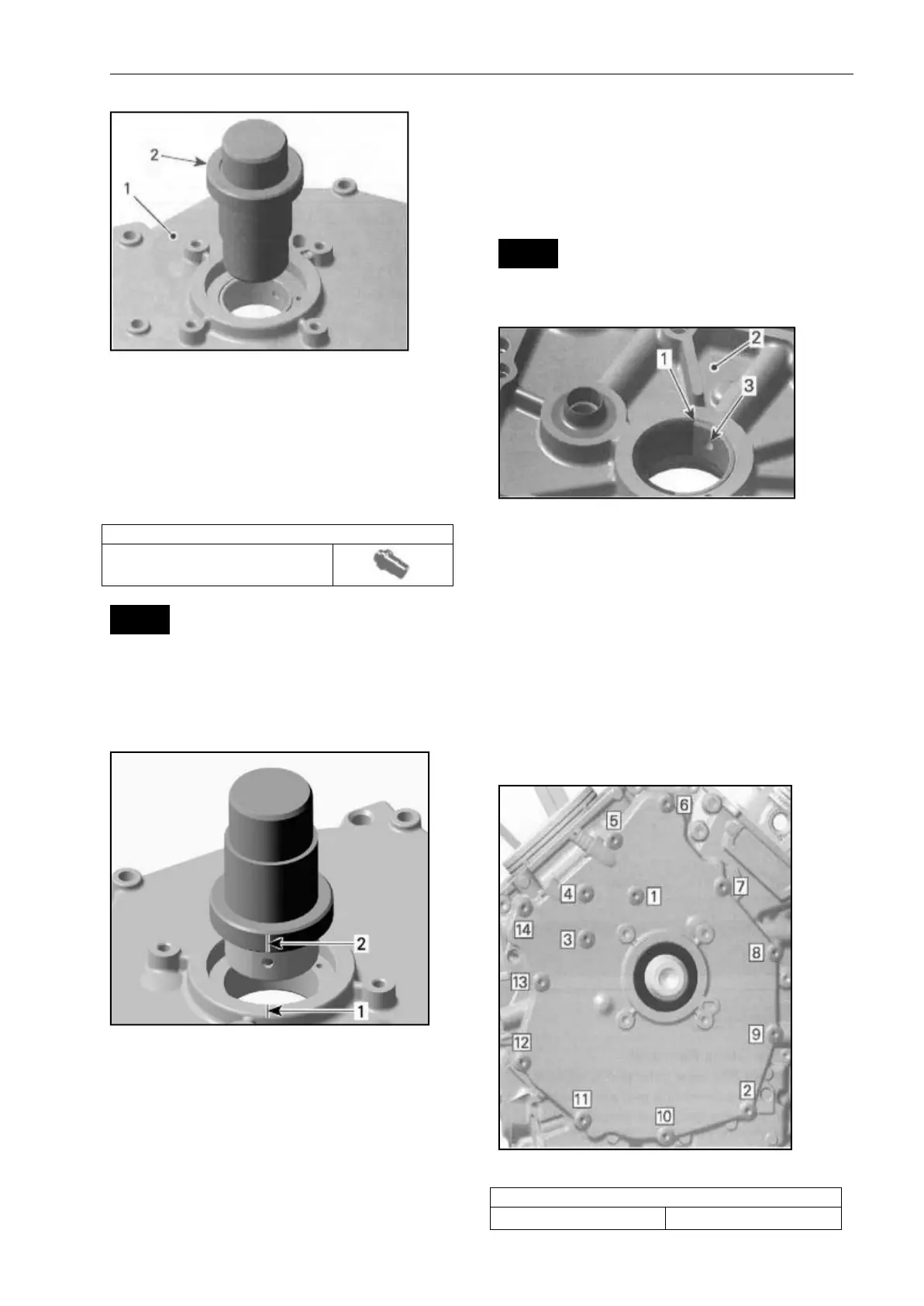

1. PTO cover
2. Plain bearing remover /installer
Installating the Plain Bearing
NOTE: Do not lubricate plain bearings
and/or PT0 cover for installation.
Install plain bearings in a cool PTO cover.
PLAIN BEARING
REMOVER / UNSTALLER
NOTICE Mark position of oil bore on PTO
cover and on plain bearing
remover/installer. Align mark on plain
bearing remover/installer with mark on PTO
cover.
1. Mark position of oil bore on PTO cover
2. Mark position of oil bore on plain bearing
remove/installer
Carefully press-in the plain bearings in the
same direction as during disassembly, from
the outside towards the inside. Support PT0
cover with suitable support with straight
surface, in order to prevent damage of the
sealing surface.
NOTE: Wrong oil bore position will stop oil
supply to plain bearings and wil1 damage
the engine.
NOTICE The partition of the plain bearings
must be positioned near to oil bore in
counterclockwise direction.
1. Partition
2. PTO cover (inside)
3. Oil bore
Installating the PTO Cover
For installation, reverse the removal
procedure.
Pay attention to the following details.
NOTE: At installation, replace PTO cover
gasket and oil seal.
Tighten PTO cover screws following the
illustrated sequence.
TIGHTENING SEQUENCE
To Next Page
